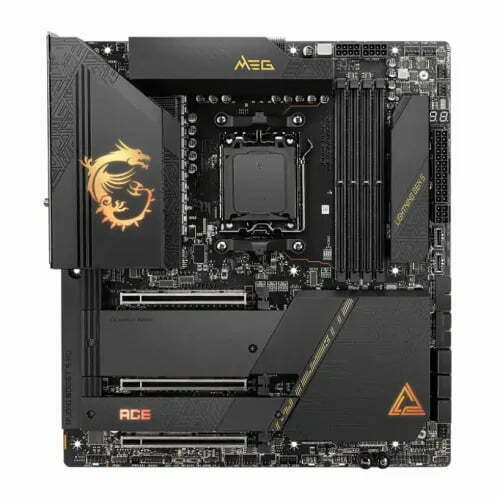

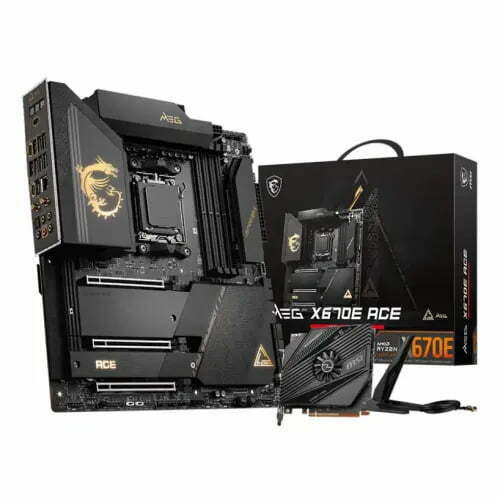

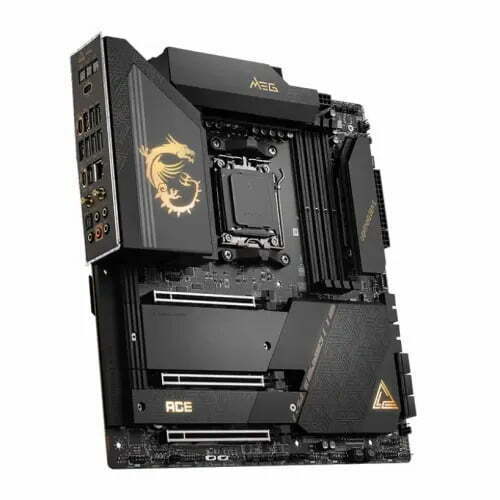

MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard

MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
-4 %
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard
95,000৳
98,500৳
Ex Tax: 95,000৳
EMI starts at 33,313৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: Model

Key Features

    • Supported CPU: Ryzen 7000 Series Processors for Socket AM5
    • Supported RAM: 4x DDR5, Max 128GB
    • Graphics Output: 1x Type-C Display port
    • Features: 10G Super LAN with Wi-Fi 6E solution
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Chipset AMD X670
Form Factor E-ATX 277mmx304.8mm
Supported CPU Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Generel information
Manufacturing Warranty 3 Years
Memory Type: DDR5 Slots: 4 DIMMs Supported Memory: Dual Channel DDR5 Maximum Memory: 128GB
PCI 3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Wireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Graphics Specifications
Graphics 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
Connector & ports

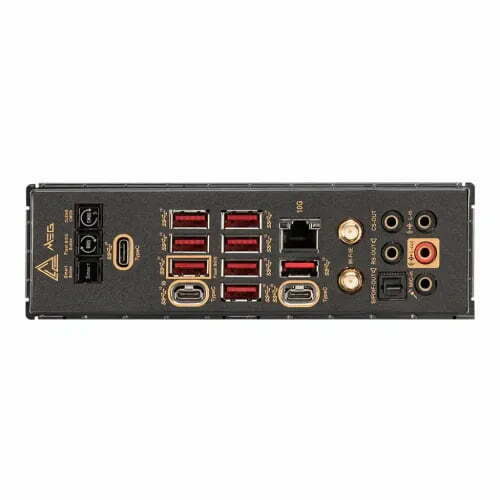

Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2x2 Type-C ports 1x USB 3.2 Gen 2x2 Type C ports V-check point
LAN Port (s) Marvell AQC113-B1-C 10Gbps LAN
Supported Storage 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port
USB (s) 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 8x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 2x USB 3.2 Gen2x2 Type C ports (Rear) 1x USB 3.2 Gen2x2 Type C ports (Front)

MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard

The MSI MEG X670E ACE Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, Maximum Memory Capacity of up to 128GB. It features a 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors ready to unleash the maximum performance. It has a stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr, and Frozr AI software to ensure extreme performance with low temperature. The motherboard is made of an 8 Layer PCB with 2oz Thickened Copper that provides higher performance and long-lasting system stability without any compromise. The MSI MEG X670E ACE offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MEG X670E ACE Motherboard offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs.

Quick Compare

Product Details
Product MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard Asus Rog Crosshair X870E Hero AM5 ATX Motherboard ASUS ROG STRIX X870E-E Gaming Wifi DDR5 AMD AM5 ATX Motherboard ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard
Image MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard Asus Rog Crosshair X870E Hero AM5 ATX Motherboard ASUS ROG STRIX X870E-E Gaming Wifi DDR5 AMD AM5 ATX Motherboard ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard
Price 98,500৳ 95,000৳ 118,500৳ 103,000৳ 95,500৳ 81,000৳ 79,500৳ 75,500৳
Model Model ROG CROSSHAIR X870E HERO ROG STRIX X870E-E ProArt X870E-Creator WiFi
Brand MSI Asus Asus Asus
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.
Summary MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard The MSI MEG X670E ACE Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, Maximum Memory Capacity of up to 128GB. It features a 22+2+1 phases power design with 90A Power Stage and dual CPU power connectors ready to unleash the maximum performance. It has a stacked Fin Array, Direct Touch VRM Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, double-sided M.2 Shield Frozr, and Frozr AI software to ensure extreme performance with low temperature. The motherboard is made of an 8 Layer PCB with 2oz Thickened Copper that provides higher performance and long-lasting system stability without any compromise. The MSI MEG X670E ACE offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MEG X670E ACE Motherboard offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs... Asus Rog Crosshair X870E Hero AM5 ATX MotherboardAsus ROG Crosshair X870E Hero AM5 ATX Motherboard is a premium choice for enthusiasts seeking cutting-edge performance and reliability for AMD Ryzen™ processors. Designed to support AMD’s Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, it pairs seamlessly with DDR5 memory for faster speeds, enhanced overclocking, and robust multitasking capabilities.Built on the powerful AMD X870E chipset, this motherboard features a sleek ATX design packed with advanced components and innovations. It supports PCIe 5.0 for faster data transfer and unparalleled graphics performance, ideal for gaming and demanding workflows. The inclusion of multiple M.2 slots and SATA ports provides flexibility for high-speed storage configurations.Connectivity is a standout feature, offering Wi-Fi 7 and dual Ethernet ports (2.5Gb and 5Gb), ensuring lag-free networking for gaming and streaming. Its USB4® and USB Type-C® ports deliver ultra-fast data transfers and broad device compatibility, catering to modern tech needs.The ROG SupremeFX audio technology guarantees immersive sound with 7.1 surround support, premium DACs, and gold-plated audio jacks, enhancing your gaming and media experience. Overclocking enthusiasts will appreciate features like FlexKey, LN2 mode, and AI Overclocking tools, while ASUS Aura Sync adds vibrant RGB lighting customization.The Asus ROG Crosshair X870E Hero is crafted for durability with a pre-mounted I/O shield, reinforced PCIe slots, and robust thermal solutions, including heatsinks and backplates for stable performance under load. With its sophisticated design, unparalleled features, and extensive support for future technologies, this motherboard is a top-tier choice for gamers, creators, and PC enthusiasts looking to build their ultimate rig.FeaturesSupports AMD Ryzen™ 9000/8000/7000 Processors: Optimized for the latest AMD CPUs with enhanced performance.DDR5 Memory Compatibility: Up to 192GB with overclocking potential for high-speed multitasking.Wi-Fi 7 and Dual Ethernet Ports: Fast, reliable networking options for seamless gaming and streaming.PCIe 5.0 and M.2 Slots: Advanced expansion and storage capabilities for modern high-performance systems.ROG SupremeFX Audio: Immersive sound with premium DACs and surround sound support.RGB Customization: ASUS Aura Sync for personalized lighting effects... ASUS ROG STRIX X870E-E Gaming Wifi DDR5 AMD AM5 ATX MotherboardThe ASUS ROG STRIX X870E-E Gaming Wifi DDR5 AMD AM5 ATX Motherboard is a high-performance motherboard designed for gamers and PC enthusiasts who demand the best in terms of connectivity, performance, and advanced features. Powered by the AMD X870E chipset and compatible with the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this motherboard provides excellent flexibility for high-end gaming builds. The motherboard supports DDR5 memory with speeds up to 8000+ MT/s (OC) for Ryzen 9000 Series processors, ensuring smooth and efficient performance during demanding tasks. It features 4 DIMM slots, with a total capacity of up to 192GB of memory, allowing for superior multitasking and gaming experiences. The board also supports AMD EXPO and NitroPath DRAM technology, enhancing memory overclocking potential. When it comes to connectivity, the ASUS ROG STRIX X870E-E excels with Wi-Fi 7 (2x2) supporting up to 6.5 Gbps transfer rates on the 2.4/5/6 GHz frequency bands and Bluetooth v5.4 for seamless wireless communication. For wired connections, it features Realtek 5Gb Ethernet with ASUS LANGuard for enhanced protection and reliability. This motherboard includes 5 x M.2 slots and 4 x SATA 6Gb/s ports for ample storage options, while the PCIe 5.0 x16 slot offers blazing-fast graphics performance. The audio capabilities are also impressive, with ROG SupremeFX 7.1 surround sound for crystal-clear audio and high-fidelity performance. With RGB lighting, AI Cooling, and Aura Sync support, this motherboard not only delivers exceptional performance but also enhances the aesthetics of your build. The 3-year warranty ensures long-term reliability and support, making it an excellent choice for serious gamers and builders... ASUS ProArt X870E-Creator WiFi AM5 ATX MotherboardThe ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard is a high-performance motherboard engineered for creative professionals and demanding users. It supports AMD Ryzen 9000, 8000, and 7000 series processors with its AMD AM5 socket, making it ideal for advanced computing tasks. The board accommodates up to 192GB DDR5 RAM across four DIMM slots, with support for memory speeds over 8000 MT/s through overclocking, making it well-suited for memory-intensive applications like video editing and 3D rendering. Designed for fast, seamless connectivity, the motherboard features two PCIe 5.0 x16 slots for high-end GPUs, and four M.2 slots, two of which support PCIe 5.0, offering blistering storage speeds. The dual Ethernet ports include 10Gb and 2.5Gb options, providing flexible, high-speed networking, while the inclusion of Wi-Fi 7 with 2x2 support ensures rapid wireless connectivity. The board also boasts rich expansion options with 11 rear USB ports, including USB4 and USB-C for ultrafast data transfer, and 9 front USB ports, including USB 20Gbps with PD/QC 4+ for fast charging. Creators will appreciate its 7.1 surround sound support with the Realtek S1220A audio codec, delivering high-definition sound. ASUS has integrated several innovative features to enhance usability, such as the M.2 Q-Latch for easy drive installation, Q-Antenna for simplified Wi-Fi setup, and an addressable Gen 2 RGB header for customizable lighting. With a robust set of ASUS 5X PROTECTION III technologies, the board ensures stability and protection. Backed by a 3-year warranty, the ASUS ProArt X870E-Creator WiFi is an excellent choice for professionals seeking reliability and top-tier performance...
