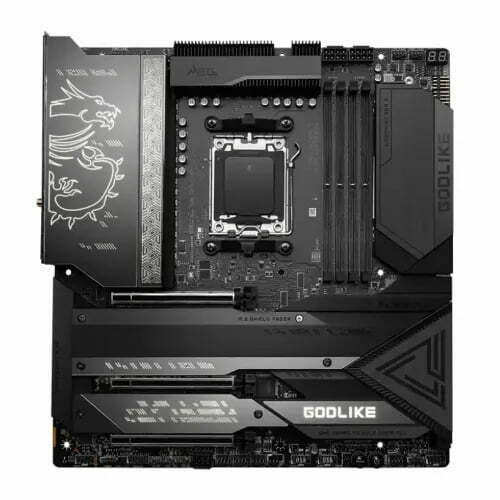

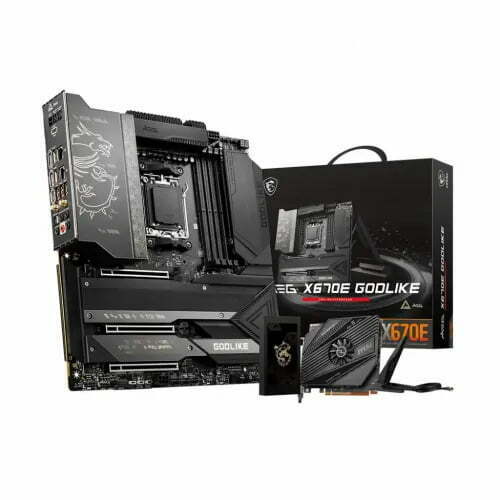

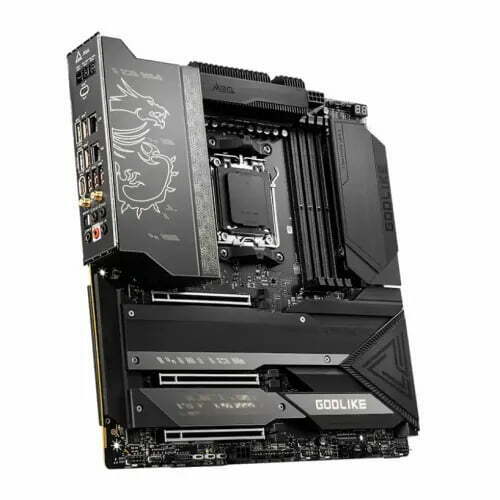

MSI MEG X670E GODLIKE DDR5 AMD AM5 E-ATX Motherboard

Based on 0 reviews. - Write a review

Discontinued

Stock: Discontinued
Brand: MSI
Model: Model

Discontinued

Add to Wish List Compare this Product

Key Features

- Supported CPU: Ryzen 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Max 128GB
- Graphics Output: NVIDIA SLI Technology & AMD MULTI-GPU
- Features: Onboard 10G Super LAN, Intel 2.5G LAN and Wi-Fi 6E

View more details

Chat Through

Messenger

Contact for Bulk Quantity: 01771833944

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

General Information
Manufacturing Warranty	3 Years
Memory	Type DDR5 Slots 4 DIMMs Supported Memory Dual Channel DDR5 Maximum Memory 128GB
PCI	3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Main Features
Audio	Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Chipset	AMD X670
Form Factor	E-ATX 288mmx304.8mm
Supported CPU	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Graphics Specifications
Graphics Memory	Supports NVIDIA SLI Technology Supports AMD MULTI-GPU
Connector & ports
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 4pin or 6 pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2x2 Type C ports V-check point
LAN Port (s)	Marvell AQC113-B1-C 10Gbps LAN Intel I225V 2.5Gbps LAN
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G port

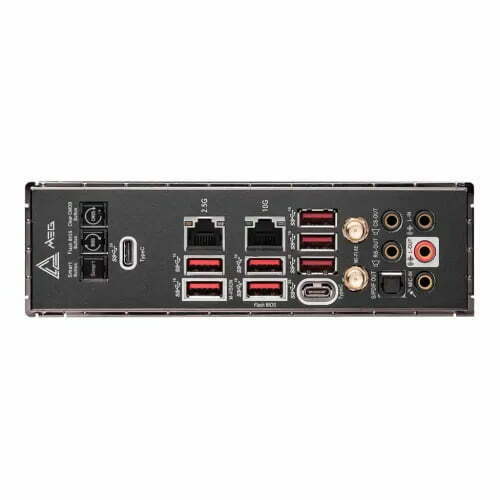

USB (s)	4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 7x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 2x USB 3.2 Gen2x2 Type C ports (Rear) 1x USB 3.2 Gen2x2 Type C ports (Front)

MSI MEG X670E GODLIKE AMD AM5 E-ATX Motherboard

The MSI MEG X670E GODLIKE Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a maximum Memory Capacity of up to 128GB. The MEG X670E GODLIKE is designed with a black and heavy heatsink which comes with a dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry's first M-Vision Dashboard. The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function but also allows system operation and customization with touch control. MSI MEG X670E GODLIKE features a 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors that are ready to unleash the maximum performance. It has a wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr, and Frozr AI software to ensure the utmost performance with low temperature. The motherboard is made of a 10 Layer PCB with 2oz Thickened Copper that Provides higher performance and long-lasting system stability without any compromise The MSI MEG X670E GODLIKE Motherboard offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MEG X670E GODLIKE offers an onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card that offer totally sextuple M.2 connectors for maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
