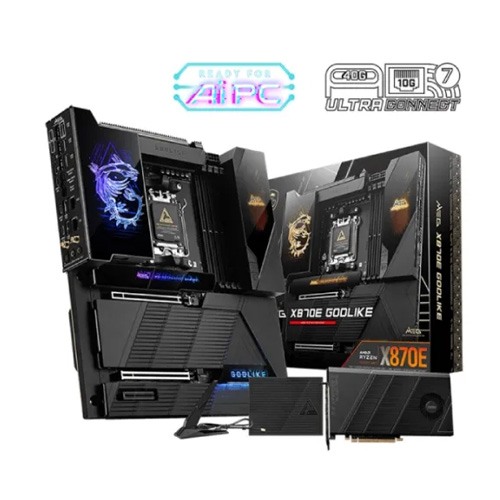

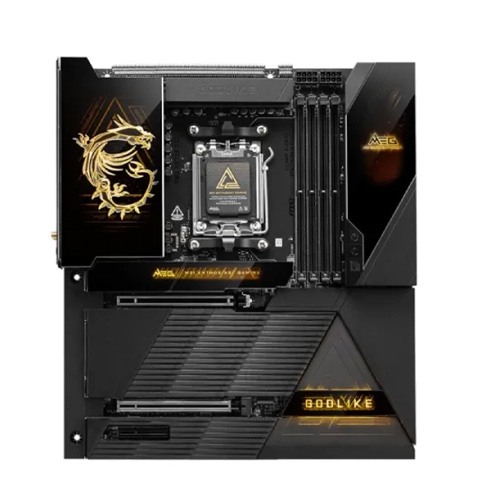

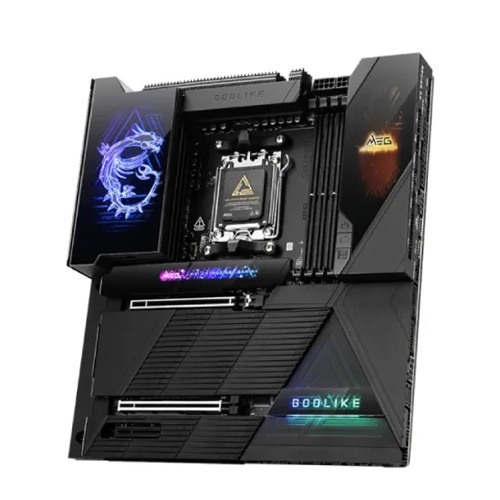

MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard

MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
-8 %
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard
Special Offer Ends In:
Day
Hour
Min
Sec
179,500৳
195,000৳
Ex Tax: 179,500৳
EMI starts at 62,945৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: MEG X870E GODLIKE

Key Features

    • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
    • Supported RAM: 4x UDIMM, Dual Channel DDR5 8400+MT/s (OC), Max 256GB
    • Graphics Output: 2x Type-C DisplayPort, 3.99-inch LCD Dynamic Dashboard III
    • Features: 7x M.2 Slot, 1x 10Gbps LAN, 1x 5Gbps LAN, Wi-Fi 7
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Display Port (s) 2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of
4K@60Hz
Form Factor E-ATX
304.8mmx277mm
Graphics Supports NVIDIA SLI Technology
Supports AMD MULTI-GPU
M.2 Socket 7x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280
devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280
devices
M.2_1:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3
slot to x4 in the BIOS, but this will disable the M2_4 slot.
PCI 2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 & PCI_E2 slots
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot
• Supports up to PCIe 4.0 x4
RAID Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Slots 4x UDIMM
Special Features LED FEATURE 1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch
Wireless Communication module Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Main Features
Chipset AMD X870E
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory Specifications
Maximum Memory 256GB
Supported Memory Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Connector & ports
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
1x Addressable V2 RGB LED connector (JARGB_V2)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports
LAN Port (s) 1x Marvell® AQC113CS 10Gbps LAN
1x Realtek® 8126 5Gbps LAN

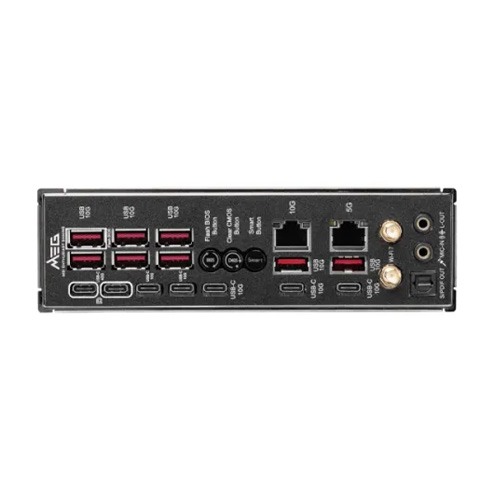

USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)
Warranty Information
Warrantty 3 Years

MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard

MSI MEG X870E GODLIKE AMD AM5 E-ATX Motherboard is a high-performance motherboard designed for enthusiasts and gamers seeking cutting-edge technology and top-tier capabilities. Compatible with the latest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this motherboard features the advanced AMD X870E chipset and Socket AM5, offering exceptional performance and overclocking potential With an E-ATX form factor (304.8mm x 277mm), this motherboard supports up to 256GB of DDR5 memory with speeds ranging from 5600 MHz to 9000 MHz (OC) to ensure seamless multitasking and smooth gaming. The board offers 4x DDR5 UDIMM slots, supporting dual-channel memory, and features PCIe 5.0 slots for high-speed expansion, including 2x PCI-E x16 slots for powerful GPUs and 1x PCI-E x4 slot. Storage capabilities are immense with 7x M.2 slots and 4x SATA 6G ports, allowing for extensive storage options and blazing-fast data transfer speeds. The M.2_1 and M.2_2 slots support up to PCIe 5.0 x4, making them perfect for high-speed SSDs, while the M.2_3 and M.2_4 slots offer PCIe 4.0 x4 and x2 for added flexibility. The motherboard integrates high-end audio technology with Realtek® ALC4082 Codec and ESS9219Q Combo DAC/HPA, providing 7.1-channel USB audio and supports high-resolution playback up to 32-bit/384 kHz. For connectivity, it features Wi-Fi 7, Bluetooth 5.4, and 2x 10Gbps Ethernet ports, along with an array of USB ports including USB 40Gbps Type C for fast data transfers. Additionally, it offers special features like the Dynamic Dashboard III, EZ Debug LED, and RGB LED control for customizing your build's aesthetics and monitoring system performance. With a 3-year warranty, the MSI MEG X870E GODLIKE delivers a robust and feature-packed foundation for any high-performance PC build.
