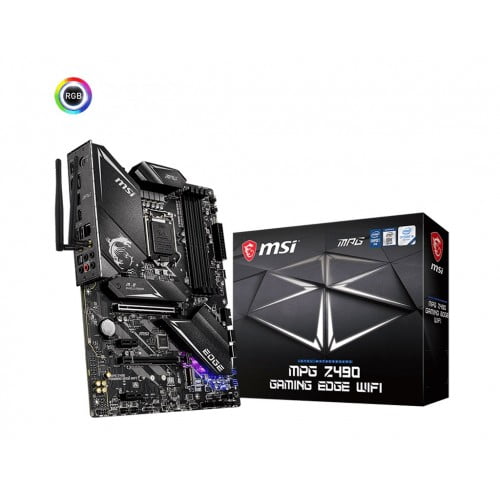

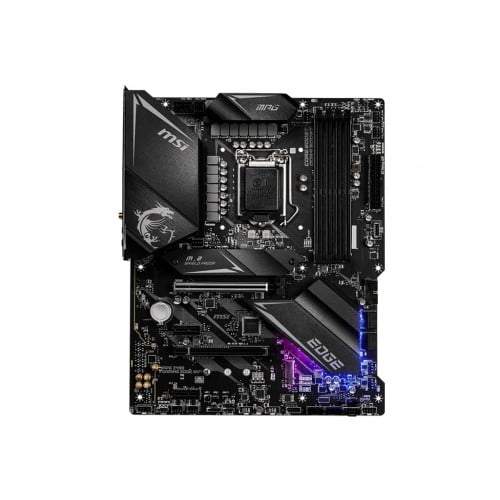

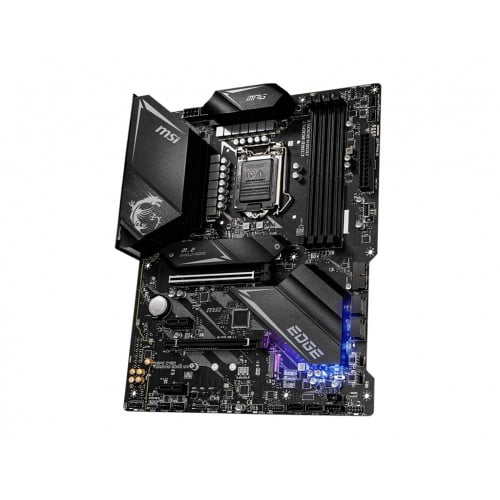

MSI MPG Z490 GAMING EDGE WIFI MOTHERBOARD
Basic Information
|
| Supported CPU |
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
CPU (MAX SUPPORT): i9
SOCKET: 1200 |
| Chipset |
Intel Z490 Chipset |
| Form Factor |
ATX Form Factor |
| Audio |
5+ Optical S/PDIF (Realtek ALC1200 Codec) |
| Expansion Slots |
| PCI |
1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (x4 mode, from PCH)
2x PCIe x1 slots (from PCH) |
| M.2 Socket |
2x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot supports 2242/ 2260 /2280 storage devices |
| Memory |
| Type |
DDR4 |
| Slots |
4 x DDR4 memory slots |
| Supported Memory |
Supports 1R 2133/2666/2933 MHz:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory |
4x DDR4 memory slots, support up to 128GB |
| Graphics |
| Graphics |
1x HDMI port supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Supports AMD 2-Way CrossFire Technology |

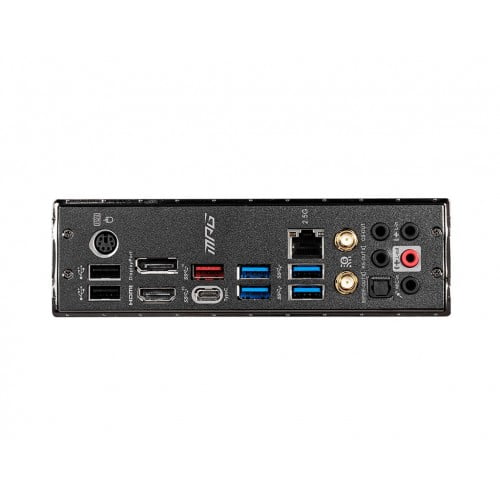

| Connector & Ports |
| HDMI |
1x HDMI port, the maximum resolution of 4096x2160 @ 30Hz |
| Display Port (s) |
1x DisplayPort port, maximum resolution of 4096 x 2304 @ 60Hz |
| USB (s) |
USB 3.2 PORTS (FRONT): 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR): 1(Gen 2x2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 2 |
| LAN Port (s) |
1x Realtek RTL8125B 2.5G LAN |
| Audio |
5+ Optical S/PDIF (Realtek ALC1200 Codec) |
| Internal I/O Ports |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x chassis intrusion connector
1x Clear CMOS jumper
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x TBT connector
1x RTD3 connector |
| Warranty Information |
| Manufacturing Warranty |
03 years warranty |
MSI MPG Z490 GAMING EDGE WIFI MOTHERBOARD
MSI MPG Z490 GAMING EDGE WIFI MOTHERBOARD brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications with the MPG series, transform your equipment into the center of attention, and top leaderboards in style. In this motherboard, the Premium Thermal Solution comes with Aluminum Cover with Extended Heatsink Design and M.2 ShieldIts MSI MPG Z490 Gaming EDGE WiFi ATX Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz. This new motherboard also supports Lightning Gen 4 Solution for the future. This new motherboard Enhanced Power Design with 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost Enhanced Power Design. In this motherboard, the Premium Thermal Solution comes with Aluminum Cover with an Extended Heatsink Design and M.2 Shield. Frozr is built for a high-performance system and non-stop gaming experience
Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C, 2.5G LAN with LAN Manager, and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. This motherboard also comes with 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. This exclusive new motherboard comes with 03 years of warranty.
