MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard

MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
-27 %
MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
MSI MPG Z590 Gaming Plus Intel 10th Gen and 11th Gen ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: MSI
  • Model: MPG-Z590-PLUS
  • SKU: MPG-Z590-PLUS

Discontinued

Add to Wish List Compare this Product

Key Features

    • ATX Form Factor
    • Intel Z590 Chipset
    • Socket LGA 1200
    • Supports 11th Gen Processor
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information

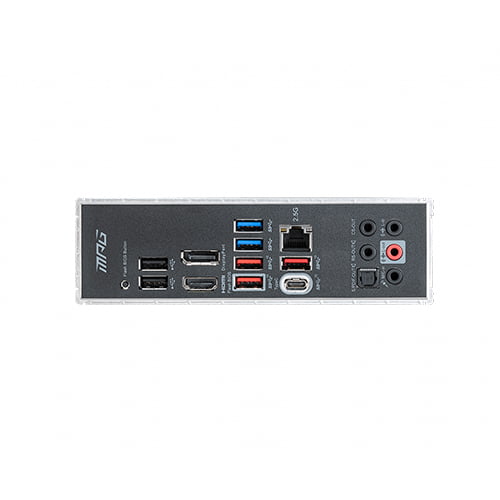

BACK PANEL PORTS DisplayPort USB 3.2 Gen 1 5Gbps Type-A 2.5G LAN Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out
INTERNAL CONNECTORS 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3)
LAN 1x Intel® I225-V 2.5Gbps LAN controller
Memory 4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Operating System Support for Windows® 10 64-bit
Storage 6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_32 slots (From Z590 Chipset) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready3 Supports Intel® Smart Response Technology for Intel Core ™ processors
USB Intel® Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A port on the back panel and 2 ports are available through the internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 3 Type-A ports on the back panel) Hub-GL850G 6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports are available through the internal connectors)
Main Features
Audio Realtek® ALC4080 7.1-Channel High Definition Audio Supports S/PDIF output
Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
Graphics Specifications
Graphics Memory 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Physical Specification
Expansion Slots 3x PCIe x16 slots Support x16/x4/x4 PCI_E1 (From CPU) Supports up to PCIe 4.0 for 11th Gen Intel® CPU Supports up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E31 & PCI_E5 (From Z590 chipset) Support up to PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 chipset)
Warranty Information
Warranty 03 years

MSI MPG Z590 Gaming Plus Intel ATX Motherboard

MSI MPG Z590 Gaming Plus Motherboard Supports the 11th and 10th generation Intel Core/Pentium Celeron processors for LGA 1200 sockets. Supports DDR4 memory up to 5333 (OC) MHz Lightning gaming speeds: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 advanced power supply design: Duet 14 +1 + 1 power supply system, two 8-pin CPU sockets, core boost, DDR4 boost advanced cooling solution super large heat pipe radiator, 7 W Heat dissipation MOSFET/mK, optional pad heat dissipation choke and 3x M .2 Shield Froze are developed for high-performance systems and the perfect "Mystic Light: 16" game. One key to control 8 million colors/29 effects. MYSTIC LIGHT EXTENSION supports RGB and RAINBOW LED strips. 5G LAN with LAN Manager is an advanced network solution for professional and multimedia purposes. MSI MPG Z590 PLUS Motherboard provides a safe, stable, and secure network connection. Fast audio enhancement 5: Bring studio sound quality to your ears to maximize game immersion. HIGH-BANDWIDTH AND  2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. EXTREME STABILITY MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, GSkill and many more to optimize memory modules, configurations and even improve overclocking.
