MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard

MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
-2 %
MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: MSI
  • Model: MPG-Z690-G-M
  • SKU: MPG-Z690-G-M

Discontinued

Add to Wish List Compare this Product

Key Features

    • Supports 12th Gen Intel Core
    • Supports DDR5 Memory
    • PCIe 5.0 slots
    • Intel Wi-Fi 6E Solution
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Display Port (s) 1x DisplayPort 1.4
M.2 Socket 5x M.2 slots (Key M)
PCI 3x PCIe x16 slots PCI_E1 & PCI_E2 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4
Processors Processor socket LGA1700
Slots 4 x DIMM
Main Features
Audio 7.1-Channel High Definition Audio Supports S/PDIF output
Chipset Intel Z690 Chipset
Form Factor ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Supported CPU Supports 12th Gen Intel Core, Pentium Gold and Celeron
Graphics Specifications
Graphics Memory 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Memory Specifications
Maximum Memory 128GB
Supported Memory Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Connector & ports
HDMI 1x HDMI 2.1
Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LAN Port (s) 1x Intel I225V 2.5Gbps LAN controller

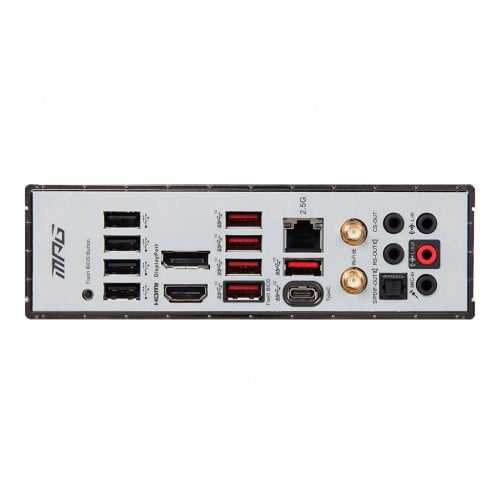

USB (s) Intel Z690 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4 USB 2.0 ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
Warranty Information
Warranty 3 years

MSI MPG Z690 FORCE WIFI Motherboard

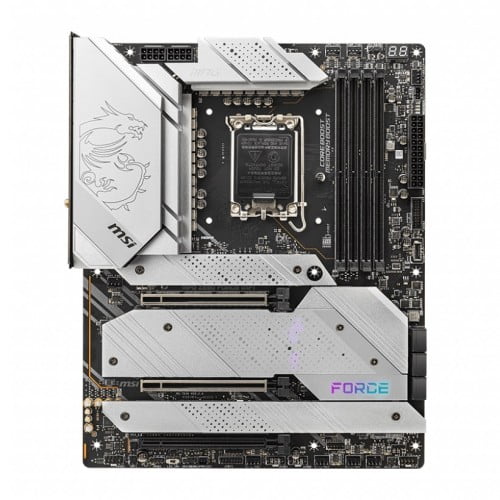

MSI MPG Z690 FORCE WIFI Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6666+(OC) MHz. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 FORCE WIFI is ready to deliver world-class memory performance. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips, and Ambient devices. The MSI MPG Z690 FORCE WIFI comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material. [ninja_tables id="47210"]
