MSI PRO B550M-P GEN3 AMD Chipset Motherboard



-19 %



MSI PRO B550M-P GEN3 AMD Chipset Motherboard
- Stock: In Stock
- Brand: MSI
- Model: Model
Key Features
- Model: PRO B550M-P GEN3
- CPU Socket: AMD Socket AM4
- Chipset: AMD B550 Chipset
- Realtek RTL8111H Gigabit LAN
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features | |
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
Chipset | AMD® B550 Chipset |
Form Factor | m-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
Generel information | |

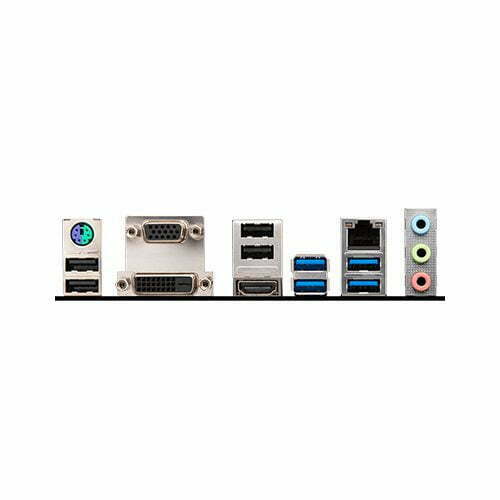

Back Panel Connectors | Keyboard / Mouse VGA USB 2.0 USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 DVI-D HDMI USB 3.2 Gen 1 5Gbps Type-A |
BIOS FEATURES | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language |
CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
EXPANSION SLOT | 1x PCIe 3.0 x16 slot (From CPU) 2x PCIe 3.0 x1 slots (From AMD B550 chipset) |
FAN CONNECTORS | 1x 4-pin CPU fan connector 2x 4-pin system fan connectors |
LAN | 1x Realtek® RTL8111H 1Gbps LAN controller |
M.2 SSD SLOTS | 1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
Memory | 4x DDR4 memory slots, supporting up to 128GB* 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1 2 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1 2 Maximum shared memory of 16 GB |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
SATA PORTS | 4x SATA 6Gb/s ports (From AMD B550 Chipset) 1 |
SYSTEM CONNECTORS | 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x TPM module connector |
Warranty Information | |
Warranty | 3YEARS |
MSI PRO B550M-P GEN3 AMD Motherboard
- Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4400(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Powerful Design: Core Boost, Digital PWM IC, DDR4 Boost
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
- MSI Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
