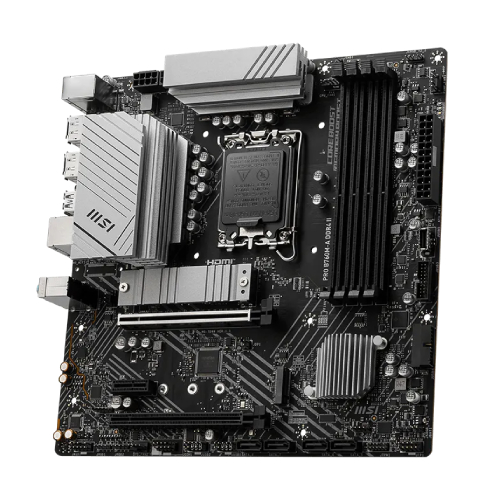

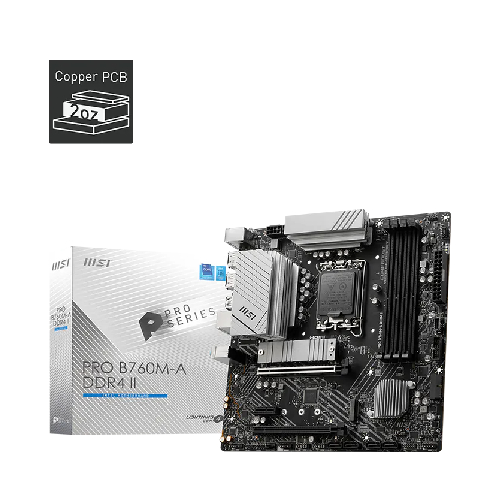

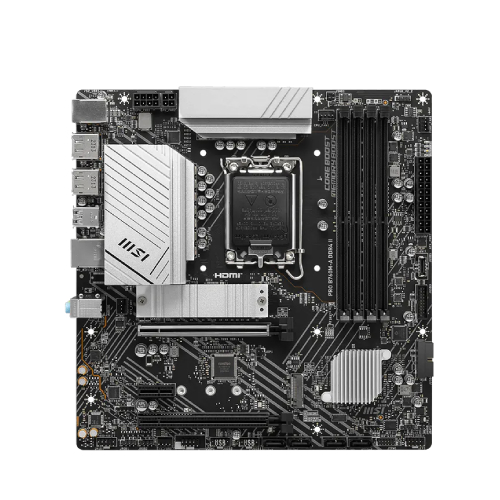

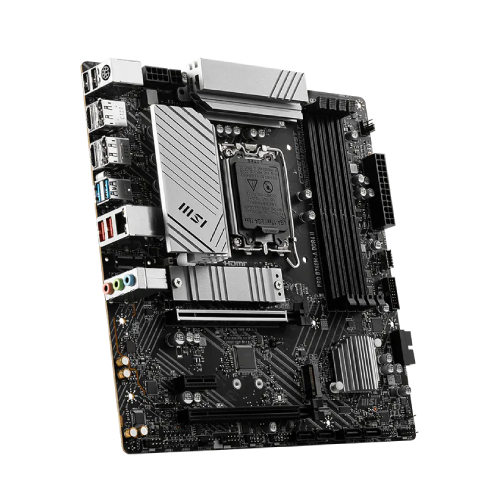

MSI PRO B760M-A DDR4 II mATX Motherboard

MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
MSI PRO B760M-A DDR4 II mATX Motherboard
Based on 0 reviews. - Write a review

TBA

  • Stock: Out Of Stock
  • Brand: MSI
  • Model: PRO B760M-A DDR4 II

Out Of Stock

Add to Wish List Compare this Product

Key Features

  • Features: 2x M.2, Realtek RTL8125BG 2.5G LAN
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 2x HDMI 2.1, 2x DisplayPort 1.4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR4
Audio ealtek ALC897 Codec
7.1-Channel High Definition Audio
Chipset Model INTEL B760
Display Port (s) 2x DisplayPort 1.4
Form Factor mATX 243.84mmx243.84mm
Graphics 2x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
PCI 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Main Features
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700

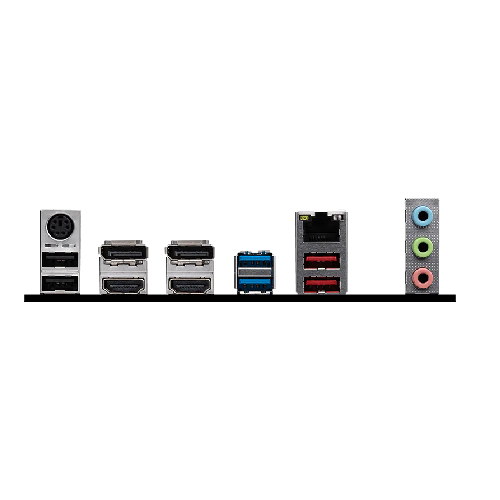

Connectivity
HDMI 2x HDMI 2.1
USB Port (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
Memory Specifications
Maximum Memory 128GB
Slots 4
Supported Memory Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Connector & ports
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Warranty Information
Warrantty 3 years

MSI PRO B760M-A DDR4 II mATX Motherboard for Powerful Intel PC Builds

The MSI PRO B760M-A DDR4 II mATX Motherboard is designed for users who want reliable performance, modern connectivity, and excellent compatibility for Intel desktop PC builds. Supporting Intel Core 14th, 13th, and 12th Generation processors with the LGA 1700 socket, this motherboard provides a strong foundation for gaming, professional work, multitasking, and everyday computing.Featuring four DDR4 memory slots, the motherboard supports up to 128GB of memory and high-speed overclocking frequencies up to 5333+ MHz depending on the memory configuration. Dual-channel memory support and Intel XMP compatibility help users achieve optimized memory performance.For storage expansion, the MSI PRO B760M-A DDR4 II includes two M.2 slots with PCIe 4.0 support and four SATA 6Gb/s ports. The board also offers PCIe expansion slots for graphics cards and additional devices. With Realtek 2.5G LAN, multiple USB connectivity options, HDMI and DisplayPort outputs, and 7.1-channel HD audio, it delivers excellent versatility for modern desktop systems. Its compact mATX form factor makes it suitable for space-efficient PC builds without sacrificing essential features.

Why Choose the MSI PRO B760M-A DDR4 II mATX Motherboard?

  • Intel LGA 1700 Support works with 12th, 13th, and 14th Gen processors.
  • Intel B760 Chipset provides reliable performance for modern desktop computing.
  • Four DDR4 Memory Slots support up to 128GB system memory.
  • High-Speed Memory Support enables DDR4 overclocking up to 5333+ MHz.
  • Dual M.2 Slots support fast PCIe 4.0 storage devices.
  • 2.5G LAN Connectivity provides faster and reliable wired networking.
  • Multiple Display Outputs include HDMI 2.1 and DisplayPort 1.4.
  • Extensive USB Connectivity supports USB 2.0, USB 5Gbps, and USB 10Gbps devices.
  • 7.1-Channel HD Audio delivers an improved multimedia and entertainment experience.
  • 3 Years Warranty provides dependable long-term product support.

Real Buyer Reviews and Ratings for MSI PRO B760M-A DDR4 II mATX Motherboard

The MSI PRO B760M-A DDR4 II mATX Motherboard is an excellent option for users building an Intel-based desktop with DDR4 memory. Its combination of modern processor compatibility, multiple expansion options, fast M.2 storage support, and 2.5G LAN makes it suitable for gaming, office productivity, and professional workloads. The compact mATX design also makes it convenient for building powerful systems in smaller PC cases.

Build Your Intel Desktop with MSI PRO B760M-A DDR4 II

If you are planning to build or upgrade an Intel desktop PC, the MSI PRO B760M-A DDR4 II mATX Motherboard offers a balanced combination of performance, connectivity, and expandability. With support for the latest compatible Intel processors, high-speed DDR4 memory, PCIe 4.0 M.2 storage, fast networking, and versatile display connectivity, it provides the essential features needed for a reliable modern PC.

Why Buy from Ultra Technology?

Ultra Technology is your trusted destination for authentic tech products at competitive prices in Bangladesh. We provide genuine products from authorized distributors and reputable brands, ensuring quality and reliability with every purchase. Our knowledgeable team is ready to help you choose the right product according to your requirements and budget. With nationwide delivery, responsive customer service, and dependable after-sales support, Ultra Technology aims to provide a smooth and hassle-free shopping experience.

Frequently Asked Questions (FAQ)

Q1: Which processors are supported by the MSI PRO B760M-A DDR4 II?

A: It supports compatible Intel Core 14th, 13th, and 12th Generation processors using the LGA 1700 socket.

Q2: How much RAM does this motherboard support?

A: The motherboard supports up to 128GB of DDR4 memory through four DIMM slots.

Q3: Does this motherboard support M.2 SSDs?

A: Yes, it includes two M.2 slots with PCIe 4.0 storage support.

Q4: Does the motherboard have high-speed LAN?

A: Yes, it features Realtek RTL8125BG 2.5G LAN connectivity.
