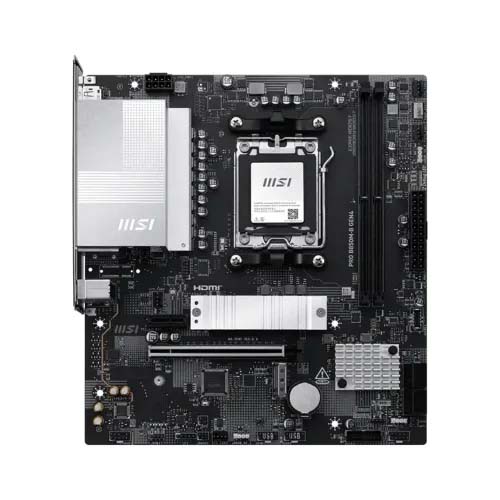

MSI PRO B850M-B GEN4 AM5 mATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO B850M-B GEN4
Key Features
- Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series, Socket AM5
- Supported RAM: 2x DDR5 UDIMM, Up to 8200 (OC) MT/s, Max 128GB
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: 2x M.2, Realtek 8125 2.5G LAN, 7.1-Channel Audio
| Main Features | |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| BIOS | Flash BIOS Button |
| Chipset | AMD B850 |
| Form Factor | mATX 226mmx243.84mm |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Graphics Specifications | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Slots | 2x UDIMM |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Type | DDR5 |
| Connector & ports | |
| Audio | 1x Front Audio (JAUD) |
| Display Port (s) | 1x DisplayPort 1.4 |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LAN Port (s) | Realtek 8125 2.5G LAN |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
| Expansion Slots | |
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Other Features | |
| Special Features | LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Warranty Information | |
| Warranty | 3 Years Warranty |
MSI PRO B850M-B GEN4 AM5 mATX Motherboard for Reliable AMD AM5 Performance
MSI PRO B850M-B GEN4 AM5 mATX Motherboard is a dependable foundation for users looking to build a modern AMD Ryzen desktop with excellent stability, speed, and future-ready compatibility. Designed for the latest AMD AM5 processors, this motherboard combines essential performance features with MSI's trusted engineering, making it an excellent choice for professionals, students, gamers, and content creators alike. Whether you're upgrading your existing PC or assembling a completely new system, this motherboard provides the performance and flexibility needed for today's demanding workloads.
The compact Micro-ATX form factor makes it suitable for a wide variety of PC cases without sacrificing expandability. PCIe Gen4 support allows you to take advantage of high-speed graphics cards and NVMe SSDs, reducing loading times and improving overall system responsiveness. Advanced power delivery ensures consistent CPU performance during multitasking, gaming, or productivity applications. MSI also integrates premium thermal solutions that help maintain lower operating temperatures, contributing to better long-term reliability.
Connectivity is another highlight of the MSI PRO B850M-B GEN4 AM5 mATX Motherboard. Multiple USB ports, high-speed storage interfaces, and reliable networking options allow users to connect modern peripherals without limitations. Memory support for DDR5 technology provides faster data transfer speeds and improved system efficiency, helping applications launch quicker and enabling smoother multitasking.
Whether you use your PC for office work, programming, video editing, streaming, or gaming, this motherboard delivers the stability and performance needed for everyday computing. MSI's intuitive BIOS and hardware optimization features make installation and tuning straightforward, even for first-time builders. If you're searching for a durable AM5 motherboard that balances performance, efficiency, and long-term value, the MSI PRO B850M-B GEN4 AM5 mATX Motherboard is an excellent investment for your next desktop build.
Key Features That Make MSI PRO B850M-B GEN4 AM5 mATX Motherboard Stand Out
- Supports AMD AM5 Processors – Gives you access to the latest Ryzen CPUs for better computing power, faster multitasking, and long-term platform support.
- PCIe Gen4 Expansion – Enables high-speed graphics cards and NVMe SSDs to deliver faster game loading, quicker file transfers, and improved application performance.
- DDR5 Memory Compatibility – Supports next-generation RAM technology for increased bandwidth, smoother multitasking, and better responsiveness during demanding workloads.
- Efficient Thermal Design – Large heatsinks and optimized cooling help maintain stable performance while reducing heat during extended gaming or heavy productivity sessions.
- Micro-ATX Form Factor – Fits easily into compact and mid-sized PC cases while still providing essential expansion slots and connectivity options.
- High-Speed Storage Support – Compatible with fast M.2 NVMe SSDs, allowing Windows, software, and games to load significantly faster.
- Reliable Power Delivery – Stable VRM design ensures consistent CPU performance during intensive workloads, streaming, rendering, and gaming.
- Multiple USB Connectivity Options – Connect external storage, gaming accessories, printers, and other peripherals without compromising speed or convenience.
- User-Friendly MSI BIOS – Makes hardware configuration, system monitoring, and performance optimization easier for both beginners and experienced PC builders.
- Built for Everyday Reliability – Premium PCB design and quality components increase durability, giving users confidence in long-term daily operation.
Real Buyer Reviews and Ratings of MSI PRO B850M-B GEN4 AM5 mATX Motherboard
Users appreciate the MSI PRO B850M-B GEN4 AM5 mATX Motherboard for its dependable performance, stable BIOS, and straightforward installation process. Many builders mention that the motherboard offers excellent compatibility with AMD Ryzen AM5 processors while providing reliable DDR5 memory support and PCIe Gen4 performance. Customers also praise its solid build quality, efficient cooling design, and consistent stability during gaming, productivity, and everyday computing. Beginners often highlight the easy BIOS interface, while experienced PC enthusiasts value its balance between affordability and essential modern features. Overall, buyers consider it a dependable AM5 motherboard that delivers excellent value for long-term desktop upgrades.
