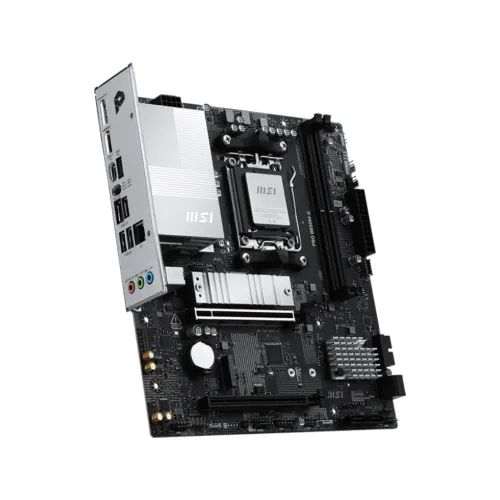

MSI PRO B850M-G AM5 mATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO B850M-G
Key Features
- Supported CPU: AMD Ryzen 9000/8000/7000 Series for Socket AM5
- Supported RAM: 2x DDR5 UDIMM, Up to 8200 (OC) MT/s
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4
- Features: Realtek 8126VB 5G LAN, 7.1-Channel High Definition Audio
| General Information | |
| Type | DDR5 |
| Audio | 1x Front Audio (JAUD) |
| Display Port (s) | 1x DisplayPort 1.4 |
| Form Factor | mATX 226mmx243.84mm |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| HDMI | 1x HDMI 2.1 |
| M.2 Socket | 2x M.2 |
| PCI | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Slots | 2x UDIMM |
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Main Features | |
| BIOS | Flash BIOS Button |
| Chipset | AMD B850 |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory Specifications | |
| Maximum Memory | 128GB |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Connector & ports | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| LAN Port (s) | Realtek 8126VB 5G LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
| Warranty Information | |
| Warranty | 3 Years |
MSI PRO B850M-G Motherboard
Processor & Chipset Support
Equipped with the AM5 socket, the motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, ensuring excellent performance for high-demand tasks. The AMD B850 chipset enhances system efficiency while enabling future-ready hardware compatibility. With a Flash BIOS Button, users can update the firmware easily without needing a CPU or memory installed.
DDR5 for Maximum Speed
The MSI PRO B850M-G features 2× DDR5 UDIMM slots supporting up to 128GB memory. Users can enjoy ultra-fast speeds ranging from DDR5 4800 to 8200+ MT/s (OC), depending on the processor. Supported technologies include AMD EXPO, memory overclocking, dual-channel mode, and non-ECC unbuffered memory. Whether for gaming or heavy multitasking, the board ensures smooth and responsive performance.
PCI Express & Display Outputs
The board includes two PCI-E x16 slots, with the top slot offering PCIe 5.0 x16 support for Ryzen 9000 and 7000 processors. Additional configurations adjust based on CPU series. Integrated graphics-capable CPUs can use HDMI 2.1 and DisplayPort 1.4, both supporting 4K 60Hz output.
High-Speed NVMe & SATA Options
Storage capabilities include 2× M.2 slots:
- M.2_1: PCIe 5.0 x4 (CPU)
- M.2_2: PCIe 4.0 x4
Additionally, 4× SATA 6Gbps ensure flexible storage. RAID 0, 1, and 10 for SATA and RAID 0/1 for NVMe are supported, offering both speed and data redundancy.
Versatile Port Selection

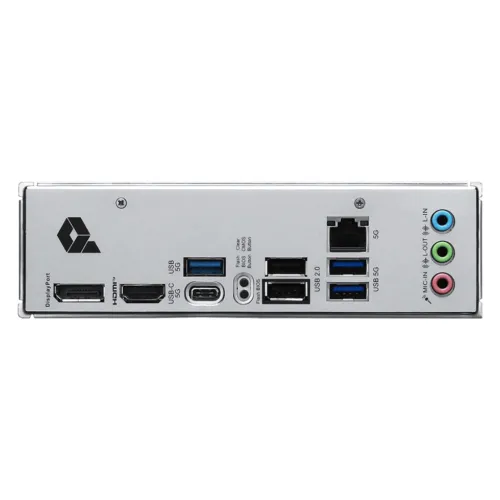

Connectivity includes USB 10Gbps Type-C (Front), multiple USB 5Gbps ports, USB 2.0, and Realtek 8126VB 5G LAN for ultra-fast networking. Internal headers include ARGB, RGB, multiple system fan headers, and TPM 2.0 support.
Buy Now – MSI PRO B850M-G AM5 mATX Motherboard from Ultra Technology
Purchase the MSI PRO B850M-G AM5 mATX Motherboard from Ultra Technology for dependable performance and future-ready features.
