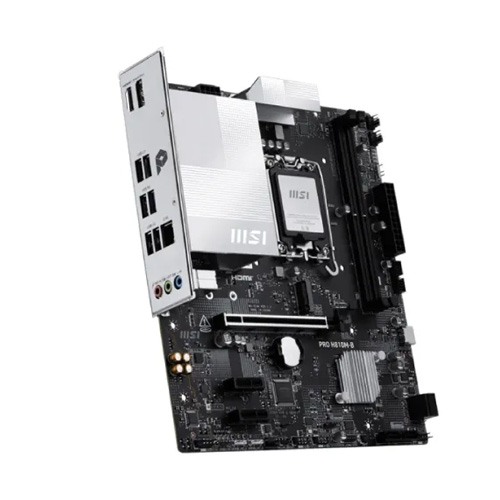

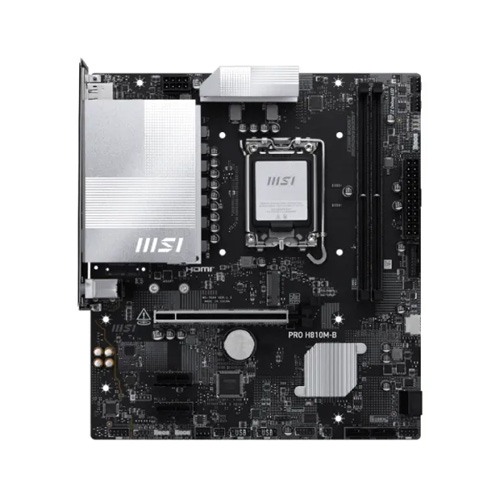

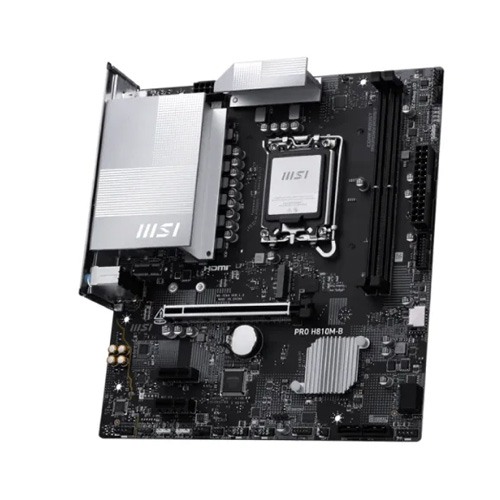

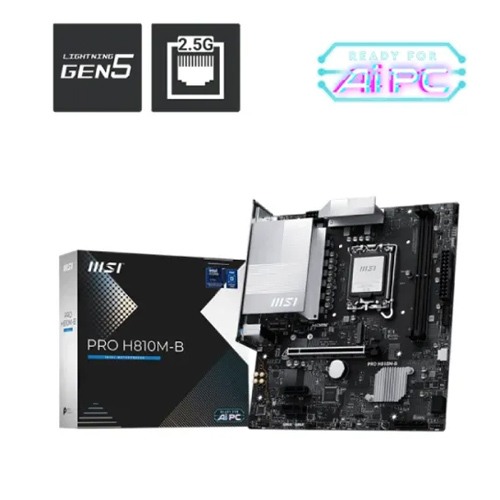

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
-11 %
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard
Special Price: 17,300৳
Regular Price: 19,500৳
17,300৳
19,500৳
Ex Tax: 17,300৳
EMI starts at 6,067৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: H810M-B

Key Features

  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket
  • Supported RAM: 2x DDR5, up to 128GB, 9066 (O.C)
  • Graphics Output: 1x HDMI, 1 x DP
  • Features: Realtek RTL8125D LAN
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio Realtek ALC897 Code
Graphics 1x HDMI
1 x DP
M.2 Socket 1x M.2
PCI 1 x PCIe x16 slot supports up to PCIe 5.0 x16, 2 x PCIe x1 slots support up to PCIe 4.0 x1
Slots 2 x UDIMM
Special Features LED FEATURE: 4x EZ Debug LED
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Main Features
BIOS Flash BIOS Button
Chipset Intel H810
Form Factor Micro-ATX
Supported CPU Intel Core Ultra Processors (Series 2)
Memory Specifications
Maximum Memory 128GB
Connector & ports
LAN Port (s) Realtek RTL8125D 2.5G LAN
Supported Storage 1 x M.2 slot (Key M) type s 2260/2280 Supports up to PCIe 4.0 x4
SATA Inteface 6.0Gb/s

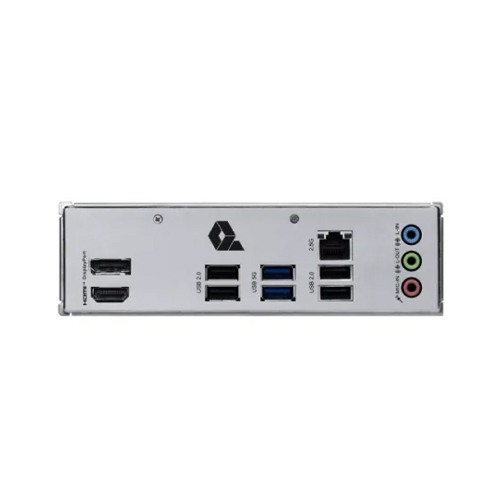

USB (s) 4 x USB 2.0 Type-A,
2 x USB 5Gbps Type-A
Warranty Information
Warranty 3 Years Warranty

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard

MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard is a compact yet powerful choice for building a modern and reliable PC, designed to deliver excellent performance for both everyday computing and professional workloads. Built on the Intel H810 chipset, it supports the latest Intel Core Ultra Series 2 processors, ensuring users can take advantage of cutting-edge CPU performance and power efficiency. This motherboard comes in a Micro-ATX form factor, making it ideal for smaller builds without compromising on essential features. It supports DDR5 memory with two UDIMM slots, allowing up to 128GB of RAM for enhanced multitasking and faster data transfer rates. For storage, it offers one M.2 slot (PCIe 4.0 x4) for high-speed NVMe SSDs and SATA 6Gb/s ports for additional drives, providing flexibility for both speed and capacity. Expansion capabilities include one PCIe x16 slot (supporting PCIe 5.0 for next-gen GPUs) and two PCIe x1 slots (PCIe 4.0) for add-on cards. The graphics output options include 1x HDMI and 1x DisplayPort, making it easy to connect modern monitors for high-resolution and high-refresh-rate displays. Networking is handled by the Realtek RTL8125D 2.5G LAN, ensuring fast and stable internet connections. In terms of connectivity, the board offers 4x USB 2.0 Type-A and 2x USB 5Gbps Type-A ports for peripherals and external devices. Audio is powered by the Realtek ALC897 codec, delivering clear and reliable sound quality for general use. Special features include the Flash BIOS Button for easy firmware updates and 4x EZ Debug LED indicators to simplify troubleshooting during setup or upgrades. Additionally, a TPM 2.0 header is available for enhanced system security. Overall, the MSI PRO H810M-B DDR5 is a solid, future-ready motherboard for users seeking a balance of performance, expandability, and compact design. It’s well-suited for both home and office PC builds that demand stability and speed.

Features

  • Supports Intel Core Ultra Series 2 processors
  • Intel H810 chipset for stable performance
  • Micro-ATX form factor for compact builds
  • 2 x DDR5 UDIMM slots, up to 128GB memory support
  • 1 x PCIe 5.0 x16 slot for high-performance graphics cards
  • 2 x PCIe 4.0 x1 slots for expansion cards
  • 1 x M.2 PCIe 4.0 x4 slot and SATA 6Gb/s ports for storage
  • 1 x HDMI and 1 x DisplayPort for video output
  • Realtek RTL8125D 2.5G LAN for fast networking
  • Realtek ALC897 audio codec for clear sound quality
  • 4 x USB 2.0 Type-A and 2 x USB 5Gbps Type-A ports
  • Flash BIOS Button for easy BIOS updates
  • 4 x EZ Debug LED for quick troubleshooting
  • TPM 2.0 header for enhanced system security

Quick Compare

Product Details
Product MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard Gigabyte B760M DS3H AX DDR4 Micro ATX Motherboard Asus PRIME B760M-F WIFI mATX Motherboard Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard
Image MSI PRO H810M-B DDR5 LGA1851 mATX Motherboard Gigabyte B760M DS3H AX DDR4 Micro ATX Motherboard Asus PRIME B760M-F WIFI mATX Motherboard Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard
Price 19,500৳ 17,300৳ 19,500৳ 17,300৳ 19,500৳ 17,400৳ 19,500৳ 17,000৳
Model H810M-B B760M DS3H AX DDR4 PRIME B760M-F WIFI B860M D2H
Brand MSI Gigabyte Asus Gigabyte
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.

Based on 0 reviews.
Summary MSI PRO H810M-B DDR5 LGA1851 mATX MotherboardMSI PRO H810M-B DDR5 LGA1851 mATX Motherboard is a compact yet powerful choice for building a modern and reliable PC, designed to deliver excellent performance for both everyday computing and professional workloads. Built on the Intel H810 chipset, it supports the latest Intel Core Ultra Series 2 processors, ensuring users can take advantage of cutting-edge CPU performance and power efficiency. This motherboard comes in a Micro-ATX form factor, making it ideal for smaller builds without compromising on essential features. It supports DDR5 memory with two UDIMM slots, allowing up to 128GB of RAM for enhanced multitasking and faster data transfer rates. For storage, it offers one M.2 slot (PCIe 4.0 x4) for high-speed NVMe SSDs and SATA 6Gb/s ports for additional drives, providing flexibility for both speed and capacity. Expansion capabilities include one PCIe x16 slot (supporting PCIe 5.0 for next-gen GPUs) and two PCIe x1 slots (PCIe 4.0) for add-on cards. The graphics output options include 1x HDMI and 1x DisplayPort, making it easy to connect modern monitors for high-resolution and high-refresh-rate displays. Networking is handled by the Realtek RTL8125D 2.5G LAN, ensuring fast and stable internet connections. In terms of connectivity, the board offers 4x USB 2.0 Type-A and 2x USB 5Gbps Type-A ports for peripherals and external devices. Audio is powered by the Realtek ALC897 codec, delivering clear and reliable sound quality for general use. Special features include the Flash BIOS Button for easy firmware updates and 4x EZ Debug LED indicators to simplify troubleshooting during setup or upgrades. Additionally, a TPM 2.0 header is available for enhanced system security. Overall, the MSI PRO H810M-B DDR5 is a solid, future-ready motherboard for users seeking a balance of performance, expandability, and compact design. It’s well-suited for both home and office PC builds that demand stability and speed.FeaturesSupports Intel Core Ultra Series 2 processorsIntel H810 chipset for stable performanceMicro-ATX form factor for compact builds2 x DDR5 UDIMM slots, up to 128GB memory support1 x PCIe 5.0 x16 slot for high-performance graphics cards2 x PCIe 4.0 x1 slots for expansion cards1 x M.2 PCIe 4.0 x4 slot and SATA 6Gb/s ports for storage1 x HDMI and 1 x DisplayPort for video outputRealtek RTL8125D 2.5G LAN for fast networkingRealtek ALC897 audio codec for clear sound quality4 x USB 2.0 Type-A and 2 x USB 5Gbps Type-A portsFlash BIOS Button for easy BIOS updates4 x EZ Debug LED for quick troubleshootingTPM 2.0 header for enhanced system security.. Gigabyte B760M DS3H AX DDR4 Micro ATX MotherboardGigabyte B760M DS3H AX is a DDR4 Micro ATX motherboard designed for use with Intel processors. It supports the 13th and 12 generations Intel Core processors and the LGA 1700 socket. It has 2x DDR4 DIMM slots that support up to 64GB of memory and operate at a maximum frequency of 2666 MHz. This motherboard features an Intel B760 chipset and has 1x PCI-Express 4.0 x16 slot and 1x PCI-Express 3.0 x1 slot for expansion. It has 4x SATA III ports and 1x M.2 slot for storage. It also includes Gigabit Ethernet, Realtek ALC887 codec for audio, and a total of 6x USB ports (2x USB 3.2 Gen1 and 4x USB 2.0).  The Gigabyte B760M DS3H AX supports Windows 10 and 11 operating systems and has the design of a solid capacitor for improved stability and longevity. It also has a comprehensive set of BIOS options for advanced users.Gigabyte B760M DS3H AX Motherboard FeaturesIntel® Socket LGA 1700: Support 13th and 12th Gen Series ProcessorsUnparalleled Performance: Hybrid 6+2+1 Phases Digital VRM SolutionDual Channel DDR4: 4*DIMMs XMP Memory Module SupportNext Generation Storage: 2*PCIe 4.0 x4 M.2 ConnectorsM.2 Thermal Guard: To Ensure M.2 SSD PerformanceEZ-Latch: PCIe 4.0x16 Slot with Quick Release DesignFast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11axExtended Connectivity: Rear USB-C® 10Gb/s, DP, HDMISmart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.. Asus PRIME B760M-F WIFI MotherboardThe Asus PRIME B760M-F WIFI Motherboard belongs to ASUS’s popular PRIME series, which focuses on delivering essential performance with durable build quality. It is powered by the Intel B760 chipset, making it compatible with Intel Core i3, i5, i7, and i9 processors. With integrated Wi-Fi, PCIe 4.0 support, fast memory options, and strong power delivery, it is built to handle demanding tasks smoothly.Design and Build QualityASUS has crafted this motherboard with a clean and premium look. The black and silver PCB design gives it a professional appearance suitable for any PC build. Despite being a micro-ATX board, it offers a well-organized layout that ensures easy installation of components.Key build-quality highlights include:High-quality capacitorsReinforced PCIe slotIntelligent heat dissipation designDurable VRM solutionsProcessor Compatibility and Chipset AdvantagesThe Asus PRIME B760M-F WIFI Motherboard uses the Intel B760 chipset, which provides exceptional support for:Intel 12th Gen Alder Lake processorsIntel 13th Gen Raptor Lake processorsThis means users can enjoy advanced CPU performance, efficiency cores, and next-gen architecture improvements.Memory Support and PerformanceOne of the strong points of this motherboard is its impressive memory capability. It supports:Up to 128GB DDR5 RAMDual-channel memory architectureSpeeds up to 7000+ MHz (OC)DDR5 memory significantly enhances system responsiveness, reduces latency, and increases overall multi-tasking efficiency. This is ideal for gamers, video editors, 3D designers, and power users who need top-tier performance.Expansion Slots and Graphics SupportThe motherboard includes:1 x PCIe 4.0 x16 slot (reinforced for GPU stability)2 x PCIe 3.0 slots for additional expansion cardsThis ensures compatibility with modern graphics cards, from entry-level GPUs to powerful high-end models... Gigabyte B860M D2H DDR5 MotherboardGigabyte B860M D2H DDR5 is a feature-rich Micro-ATX motherboard designed for Intel Core Ultra processors, delivering next-generation performance, stable power delivery, and modern connectivity for both gamers and professionals.Processor & Chipset SupportPowered by the Intel B860 Express Chipset, this motherboard supports the latest Intel® Core™ Ultra processors on the LGA1851 socket. It ensures efficient performance, optimized power management, and compatibility with Intel’s newest platform technologies, making it ideal for modern PC builds.Memory PerformanceThe board supports DDR5 memory up to 9066 MT/s (OC) with dual-channel architecture and a maximum capacity of 128GB across two DIMM slots. With support for XMP profiles and both ECC (non-ECC mode) and non-ECC unbuffered memory, users can enjoy high-speed multitasking, improved bandwidth, and system stability.Graphics & Display OutputIntegrated Intel HD Graphics support allows smooth visual performance with DisplayPort 2.1 supporting up to 4K @144Hz and HDMI 2.1 supporting 4K @60Hz. This makes it suitable for productivity setups, high-resolution monitors, and media consumption without a dedicated GPU.Expansion & Storage OptionsFor expansion, the motherboard features a PCIe 5.0 x16 slot for next-gen graphics cards and a PCIe 4.0 x4 slot for additional devices. Storage options include two PCIe 4.0 M.2 slots for fast NVMe SSDs and four SATA 6Gb/s ports with RAID 0/1/5/10 support, ensuring flexible and high-speed storage configurations.Connectivity & AudioNetworking is handled by a Realtek 2.5GbE LAN, delivering fast and stable wired internet. Audio is powered by a Realtek High Definition Audio codec with support for 7.1-channel surround sound and S/PDIF Out, providing immersive sound quality for gaming and entertainment.Cooling, BIOS & FeaturesThe board includes smart fan headers, water-cooling support, and advanced hardware monitoring. Q-Flash Plus allows BIOS updates without a CPU, while GIGABYTE Control Center offers easy system tuning and management. Support for Windows 11 ensures full compatibility with Intel NPU features.Buy Now – Gigabyte B860M D2H DDR5 Motherboard Form Ultra TechnologyUpgrade your PC with the Gigabyte B860M D2H DDR5 LGA1851 Socket Motherboard from Ultra Technology and enjoy next-generation performance, stability, and long-term reliability in a compact Micro-ATX form factor...
