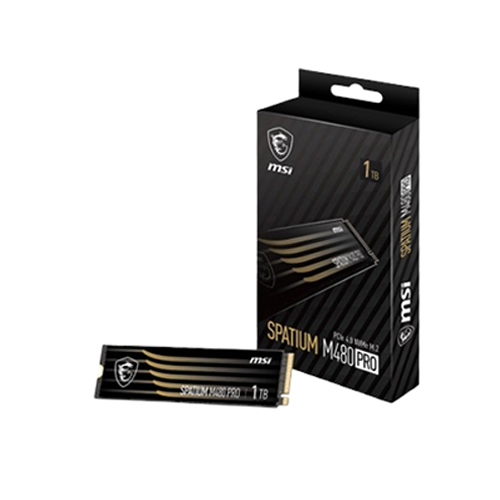

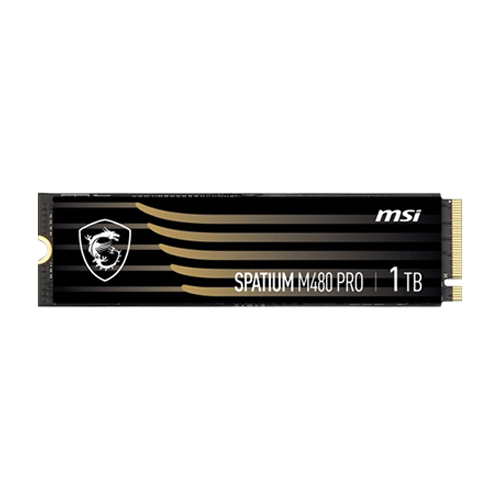

MSI SPATIUM M480 Pro PCIe 4.0 NVMe M.2 1TB SSD

MSI SPATIUM M480 Pro PCIe 4.0 NVMe M.2 1TB SSD

The MSI SPATIUM M480 Pro PCIe 4.0 NVMe M.2 1TB SSD is a high-performance solid-state drive designed to provide lightning-fast storage for your computer. With its advanced features and impressive specifications, it offers an exceptional storage solution for gamers, content creators, and power users.

Featuring a capacity of 1TB, this SSD offers ample space to store your operating system, applications, and files, allowing for quick access and improved system performance. The drive utilizes the PCIe 4.0 interface, which provides blazing-fast data transfer speeds and ensures compatibility with both PCIe Gen4 and previous generation motherboards.

Powered by the PHISON E18 controller, the MSI SPATIUM M480 Pro delivers excellent performance and reliability. It incorporates advanced technologies such as LDPC ECC (Low Density Parity Check) algorithm and End to End Data Path Protection, ensuring data integrity and enhancing the longevity of the drive. The drive also supports TRIM and SMART technologies, allowing for performance optimization and real-time monitoring of the drive's health.

With a 1GB DDR4 DRAM cache and 3D NAND flash memory, the M480 Pro provides an optimal balance between speed and storage capacity. The 3D NAND technology enables high-density storage and enhances overall endurance. Additionally, the drive features AES256/Pyrite encryption for enhanced data security, protecting your sensitive files and ensuring privacy.

The M.2 2280 form factor makes it compact and easy to install in compatible devices such as laptops, desktops, and workstations. It operates within a wide temperature range of 0°C to 70°C, making it suitable for various environments. The drive also offers low power consumption, with idle power as low as 40mW and a maximum operating power of 9.5W.

In terms of performance, the MSI SPATIUM M480 Pro SSD truly excels. It achieves impressive sequential read speeds of up to 7400MB/s and sequential write speeds of up to 6000MB/s, allowing for quick data transfers and significantly reducing loading times. It also delivers exceptional random read and write performance, with up to 750,000 IOPS for random reads and 1,000,000 IOPS for random writes.

With a Mean Time Between Failure (MTBF) of up to 1,600,000 hours and a Terabytes Written (TBW) rating of 700TB, the MSI SPATIUM M480 Pro SSD offers exceptional durability and reliability, ensuring that your data remains safe and accessible for an extended period.

In conclusion, the MSI SPATIUM M480 Pro PCIe 4.0 NVMe M.2 1TB SSD combines impressive performance, advanced features, and robust build quality to deliver a top-tier storage solution. Whether you're a gamer seeking faster load times, a content creator working with large files, or a power user demanding optimal performance, this SSD is an excellent choice to enhance your computing experience.

Features

• Trim: The drive supports TRIM, which is a performance optimization feature that helps maintain the SSD's performance over time. It requires operating system support to function effectively.
• SMART: The SSD utilizes SMART (Self-Monitoring, Analysis, and Reporting Technology), which allows for real-time monitoring of drive health and provides valuable insights into the drive's overall condition.
• LDPC ECC Algorithm: The drive incorporates the Low Density Parity Check (LDPC) ECC algorithm, which enhances data integrity and improves error correction capabilities. This helps to prevent data corruption and ensures reliable storage.
• End to End Data Path Protection: This feature ensures data integrity throughout the entire data transfer process, from the host system to the NAND flash memory. It helps safeguard against data corruption and improves the reliability of the drive.
• APST (Autonomous Power State Transition): APST is a power management feature that allows the drive to autonomously transition between different power states, optimizing power consumption while maintaining responsiveness.
• AES256/Pyrite Encryption: The SSD supports AES256/Pyrite encryption, providing robust data security by encrypting data stored on the drive. This feature helps protect sensitive information from unauthorized access.
• Capacity: The MSI SPATIUM M480 Pro SSD offers a generous capacity of 1TB, providing ample space for storing operating systems, applications, and large files.
• Compatibility: The drive is compatible with various PCIe generations, including PCIe Gen4, Gen3, Gen2, and Gen1, ensuring wide compatibility with different motherboards and systems.
• Controller: The SSD is powered by the PHISON E18 controller, a high-performance controller that enables fast data transfer speeds and reliable operation.
• Form Factor: The M.2 2280 form factor ensures easy installation in compatible devices such as laptops, desktops, and workstations.
• DRAM Cache: With a 1GB DDR4 DRAM cache, the drive enhances overall performance by providing quick access to frequently accessed data.
• Flash Memory: The SSD utilizes 3D NAND flash memory, a high-density and reliable storage technology that offers improved endurance and longevity.
• Operating Temperatures: The SSD can operate within a temperature range of 0°C to 70°C, ensuring reliable performance in various environmental conditions.
• Power Efficiency: The SSD offers low power consumption, with idle power as low as 40mW and a maximum operating power of 9.5W. The Low Power L1.2 feature further reduces power consumption to just 3mW during low-power idle states.
• Reliability: The SSD boasts a Mean Time Between Failure (MTBF) of up to 1,600,000 hours, indicating high reliability and durability. It also has a Terabytes Written (TBW) rating of 700TB, indicating its ability to withstand extensive data write operations.

Overall, the MSI SPATIUM M480 Pro PCIe 4.0 NVMe M.2 1TB SSD combines advanced features, excellent performance, and robust reliability to offer a high-quality storage solution for demanding computing needs.
