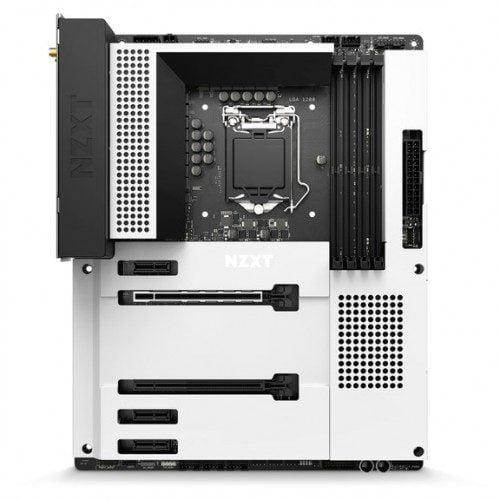

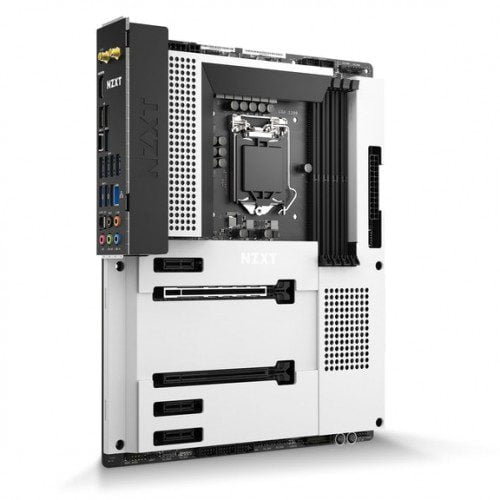

NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard

NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
-6 %
NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard
NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard

Discontinued

  • Stock: Discontinued
  • Brand: NZXT
  • Model: Model

Key Features

    • Model: N7 Z590 Matte White
    • Supports memory overclocking up to 4266 MHz
    • 12+2 DrMOS Power Phase Design
    • Intel Wifi 6E and Bluetooth V5.2
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
PCI 1x PCIe x16 (x16 mode) (11th Gen CPUs - PCIe 4.0, 10th Gen CPUs - PCIe 3.0) 1x PCIe x16 (x4 mode) 3x PCIe 3.0 x1
Slots 4 x DIMM Slots (Dual-channel Memory Architecture)
Wireless Communication module Intel Dual-Band Wireless: AX210 Wi-Fi 6E Protocol: 802.11 a/b/g/n/ac/ax Frequency Bands: 2.4 / 5 / 6 GHz MU-MIMO Support Bluetooth V5.2
Main Features
Audio Realtek ALC1220 Codec 8-Channel High Definition Audio 32-bit / 192kHz DAC Playback Nichicon Fine Gold Series Capacitors
Chipset Z590
Form Factor ATX
Supported CPU Intel Socket LGA1200 for 10th and 11th Generation Processors Turbo Boost Max 3.0 Technology
Graphics Specifications
Graphics Memory Intel Xe Graphics (11th Gen CPUs) / UHD (10th Gen CPUs) HDMI 2.0 / HDMI 1.4b HDMI Max Resolution: 4096x2160@60Hz AMD 2-Way CrossFireX Technology
Memory Specifications
Maximum Memory 128GB
Memory Type DDR4
Supported Memory OC Frequency (11th Gen CPUs): 4600+ MHz OC Frequency (10th Gen CPUs): 4400+ MHz Base Frequency (11th Gen CPUs): 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Base Frequency (10th Gen CPUs): 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Intel XMP 2.0 Support
Connector & ports
HDMI 1x HDMI 2.0

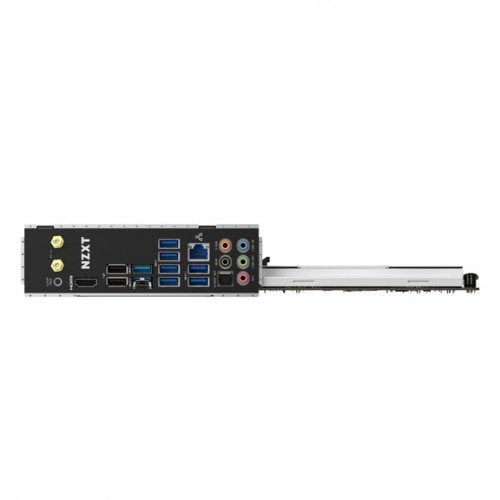

Internal I/O Ports 1x M.2 (M Key), Type 2242/2260/2280 1x M.2 (E Key) (For wireless cards) 4x SATA 6Gbps Ports 1x USB 3.2 Gen 2 Header (Type-C) 2x USB 3.2 Gen 1 Header (Up to 4 ports) 3x USB 2.0 Header (Up to 6 ports) 1x Front Panel Audio 1x CPU_FAN Connector (Up to 24W) 1x AIO_PUMP Connector (Up to 24W) 5x SYS_FAN Connector (Up to 24W) 2x NZXT RGB LED Header 1x 5V ARGB Header 1x 12V RGB Header 1x 24-pin EATX Power 1x 8-pin ATX 12V Power 1x 4-pin ATX 12V Power 1x Power Button 1x Reset Button 4x POST LEDs
LAN Port (s) Realtek RTL8125BG 2.5G
Supported Storage 1x M.2 Type 2242/2260/2280 (PCIe x4 mode) 1x M.2 Type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) 4x SATA 6Gb/s RAID 0/1/5/10 Support Intel Smart Response Technology Intel Rapid Storage Technology Intel Optane Memory
Warranty Information
Warranty 3 Years

Quick Compare

Product Details
Product NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard MSI MAG B760M MORTAR WIFI II DDR5 MATX Motherboard Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard MSI MAG B760 TOMAHAWK WIFI DDR5 13th Gen & 12th Gen ATX Motherboard
Image NZXT N7 Z590 Matte White Intel 11th and 10th Gen ATX Wi-Fi Gaming Motherboard MSI MAG B760M MORTAR WIFI II DDR5 MATX Motherboard Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard MSI MAG B760 TOMAHAWK WIFI DDR5 13th Gen & 12th Gen ATX Motherboard
Price 26,999৳ 25,500৳ 29,500৳ 25,500৳ 29,500৳ 25,700৳ 28,800৳ 25,800৳
Model Model MAG B760M PRIME B860M-A WIFI-CSM MAG B760 TOMAHAWK WIFI
Brand NZXT MSI Asus MSI
Availability Discontinued In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.

Based on 1 reviews.
Summary .. MSI MAG B760M MORTAR WIFI II DDR5 MATX MotherboardMSI MAG B760M MORTAR WIFI II DDR5 MATX Motherboard is a powerhouse designed to cater to the demands of the latest Intel processors, making it an excellent choice for gamers, content creators, and PC enthusiasts. The motherboard supports Intel Core 14th, 13th, and 12th Gen processors, along with Intel Pentium Gold and Celeron processors, providing a versatile platform for a wide range of computing needs. Built with the LGA 1700 socket and powered by the Intel B760 chipset, this mATX motherboard boasts a compact form factor of 243.84mmx243.84mm, making it ideal for smaller system builds without compromising performance. The Realtek ALC897 Codec ensures an immersive audio experience with 7.1-Channel High Definition Audio and S/PDIF output support. For graphics, the motherboard offers HDMI 2.1 with HDR and DisplayPort 1.4, supporting impressive resolutions of 4K at 60Hz and 8K at 60Hz, respectively. This ensures a visually stunning experience for gaming or content creation. The MSI MAG B760M MORTAR WIFI II provides extensive connectivity options with USB ports, including USB 2.0 and USB 3.2 Gen1/Gen2 Type A and Type C ports on both the front and rear panels. The inclusion of Realtek 2.5Gbps LAN and Intel Wi-Fi 6E guarantees high-speed and reliable network connectivity. The wireless communication module supports MU-MIMO technology across 2.4GHz, 5GHz, and 6GHz bands, reaching speeds up to 2.4Gbps. Bluetooth 5.3 support further enhances wireless connectivity options. Memory support on this motherboard is exceptional, with four DDR5 DIMM slots allowing for a maximum capacity of 192GB. The overclocking capabilities are impressive, reaching frequencies up to 7800+ MHz, providing users with the flexibility to optimize system performance based on their preferences. Storage options are abundant, featuring three M.2 slots supporting PCIe 4.0 x4 and SATA modes, along with four SATA 6G ports that support RAID 0, RAID 1, RAID 5, and RAID 10 configurations. The internal I/O ports include connectors for power, fans, audio, RGB LED lighting, USB, and more, ensuring easy and efficient system integration. The motherboard also comes equipped with special features such as 4x EZ Debug LED, enhancing system diagnostics. With a manufacturing warranty of 3 years, the MSI MAG B760M MORTAR WIFI II DDR5 MATX Motherboard combines cutting-edge technology, robust features, and reliable performance, making it a top-tier choice for those seeking a high-performance motherboard for their next PC build.MSI MAG B760M Motherboard Price in BDUpgrade your office computing experience with the MSI MAG B760M MORTAR WIFI II DDR5 MATX Motherboard from Ultratech. This motherboard provides a powerful platform for business tasks, ensuring smooth multitasking and efficient performance. With support for the latest Intel processors and DDR5 memory technology, it delivers the reliability and speed required for demanding office applications. The compact mATX form factor is perfect for space-saving setups, while the versatile connectivity options cater to various office peripherals. Trust in MSI and Ultratech to enhance your office productivity with cutting-edge technology.FeaturesProcessor Compatibility: Supports Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors. LGA 1700 socket ensures compatibility with a wide range of CPUs.Chipset: Powered by the INTEL B760 chipset, providing a stable and efficient foundation for your system.Form Factor: Compact mATX form factor (243.84mmx243.84mm) suitable for smaller builds without compromising performance.Audio Excellence: Realtek ALC897 Codec delivers 7.1-Channel High Definition Audio for an immersive audio experience. S/PDIF output support for high-quality digital audio transmission.Expansion Slots: 1x PCI-E x16 slot supporting x16/x4 configurations for graphics cards. PCIe 5.0 and PCIe 3.0 support for high-speed data transfer.Memory Configuration: DDR5 memory type with 4 DIMM slots. Supports overclocked memory frequencies up to 7800+ MHz. Dual-Channel mode support for enhanced memory performance. Maximum memory capacity of 192GB.Graphics Output: HDMI 2.1 with HDR support for a maximum resolution of 4K 60Hz. DisplayPort 1.4 supporting a maximum resolution of 8K 60Hz, providing crisp and vibrant visuals.Connectivity Options: Multiple USB ports, including USB 2.0, USB 3.2 Gen1/Gen2 Type A, and USB 3.2 Gen2x2 Type C ports for versatile connectivity. Realtek 2.5Gbps LAN port ensures high-speed and stable wired network connections. Intel Wi-Fi 6E module pre-installed in the M.2 (Key-E) slot for fast and reliable wireless communication. Bluetooth 5.3 support.Storage Solutions: Three M.2 slots supporting PCIe 4.0 for high-speed storage. 4x SATA 6G ports with RAID support (RAID 0, RAID 1, RAID 5, RAID 10) for flexible storage configurations.Internal Connectivity: Various internal I/O ports, including power connectors, fan connectors, and RGB LED connectors, providing customization options.TPM pin header (Support TPM 2.0) for enhanced security.Special Features: LED FEATURE: 4x EZ Debug LED for easy troubleshooting. Tuning Controller connector (JDASH) for additional customization.Warranty: Backed by a 3-year manufacturing warranty, ensuring reliability and peace of mind for the user.The MSI MAG B760M MORTAR WIFI II DDR5 MATX Motherboard combines advanced features, connectivity options, and a compact design, making it an excellent choice for a high-performance and versatile PC build... Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard The Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard is a feature-rich and reliable platform designed for modern Intel desktop systems. Built for the latest Intel processors, this motherboard combines stability, performance, and advanced connectivity to meet the needs of gamers, content creators, professionals, and everyday users. Its micro-ATX form factor provides an excellent balance between expandability and space efficiency, making it suitable for a wide range of PC builds. Engineered with ASUS PRIME series reliability, the motherboard offers comprehensive cooling solutions, high-speed memory support, and advanced storage capabilities. It is designed to maximize system performance while ensuring long-term stability for demanding workloads, gaming sessions, and productivity tasks. The inclusion of integrated WiFi connectivity provides convenient wireless networking, reducing cable clutter and enabling flexible installation options. The motherboard supports modern expansion technologies, allowing users to build powerful systems with fast storage devices, high-performance graphics cards, and advanced peripherals. ASUS optimization features help simplify system configuration and tuning, making it easier for both beginners and experienced builders to achieve reliable performance. With its durable construction, efficient power delivery, and versatile connectivity options, the Asus PRIME B860M-A WIFI-CSM serves as an excellent foundation for a modern desktop PC. Whether you are building a gaming rig, workstation, or productivity-focused computer, this motherboard delivers the performance and reliability expected from ASUS PRIME products. Features of Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard LGA 1851 socket motherboard Intel B860 chipset design Micro-ATX form factor Integrated WiFi connectivity Advanced DDR5 memory support Multiple high-speed storage options Comprehensive cooling controls High-quality power delivery design PCIe expansion support Premium ASUS PRIME reliability and durability Benefits of Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard Provides a stable foundation for modern Intel systems Supports high-speed DDR5 memory performance Offers convenient wireless networking with built-in WiFi Improves overall system responsiveness and efficiency Supports future hardware upgrades Enhances storage performance with modern interfaces Maintains reliable operation under demanding workloads Suitable for gaming, content creation, and productivity Fits a wide range of PC cases with its micro-ATX design Delivers long-term reliability and durability Why Choose Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard? The Asus PRIME B860M-A WIFI-CSM is an excellent choice for users seeking a dependable and modern motherboard for Intel-based systems. Its support for advanced technologies, built-in WiFi connectivity, and high-speed memory compatibility make it suitable for a wide range of applications. Whether you are assembling a gaming PC, a professional workstation, or a home productivity system, this motherboard provides the essential features needed for efficient and reliable performance. The trusted ASUS PRIME design philosophy ensures a balance of functionality, durability, and ease of use. Why Buy Asus PRIME B860M-A WIFI-CSM LGA 1851 micro-ATX Motherboard From Ultra Technology? Ultra Technology offers genuine ASUS products with competitive pricing and dependable customer support. When you purchase the Asus PRIME B860M-A WIFI-CSM from Ultra Technology, you receive authentic hardware backed by professional service and expert guidance. Our team helps customers choose the right components for their systems while ensuring a smooth and hassle-free purchasing experience. Ultra Technology is a trusted destination for motherboards, processors, storage solutions, and complete PC hardware. Frequently Asked Questions (FAQ) Q1: What processor socket does this motherboard use? A: The Asus PRIME B860M-A WIFI-CSM uses the LGA 1851 socket. Q2: Does this motherboard include built-in WiFi? A: Yes, it comes with integrated WiFi connectivity for wireless networking. Q3: Is this motherboard suitable for gaming and productivity? A: Yes, it is designed to support gaming, content creation, multitasking, and professional workloads... MSI MAG B760 TOMAHAWK WIFI DDR5 13th Gen & 12th Gen ATX MotherboardMSI MAG B760 TOMAHAWK WIFI DDR5 13th Gen & 12th Gen ATX Motherboard supports DDR5 memory and ATX form factor. It is designed for use with Intel processors and features built-in WiFi connectivity. The TOMAHAWK series of motherboards are designed for high-performance and gaming PCs. The MSI MAG B760 TOMAHAWK WIFI DDR5 motherboard is built on the B760 chipset and is compatible with Intel 13 and 12 Gen processors with an LGA 1200 socket. The motherboard features 1x PCIe 3.0 x16 slot, 1x PCIe 3.0 x1 slot, and 2x M.2 slots for storage. It has 6x SATA ports and supports RAID 0, 1, 5 and 10. It has built-in WiFi 6 (802.11ax) and Bluetooth 5.1 for wireless connectivity and also features 1x Realtek 2.5G LAN port for wired internet. It also has a variety of features for gamers such as Audio Boost, DDR4 Boost, and Core Boost. The board also comes with a pre-installed I/O shield for easy installation. It also has USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 ports, and also has a display port and HDMI port for multiple monitor support. In terms of cooling, the board supports 2x CPU fan headers and 3x system fan headers, as well as support for water cooling. It has an ATX form factor and dimensions of 30.5 x 24.4 cm.MSI MAG B760 TOMAHAWK WIFI DDR5 Motherboard FeaturesSupports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socketMSI MAG B760 TOMAHAWK WIFI DDR5 Motherboard Supports DDR5 Memory, up to 7000+(OC) MHzEnhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory BoostLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop worksAUDIO BOOST: Reward your ears with studio-grade sound quality for the most immersive gaming experienceHigh-Quality PCB: 6-layer PCB made by 2oz thickened copper and server-grade level material...
