Redragon RGPS GC-PS002 600W 80 Plus Bronze Non-Modular Power Supply

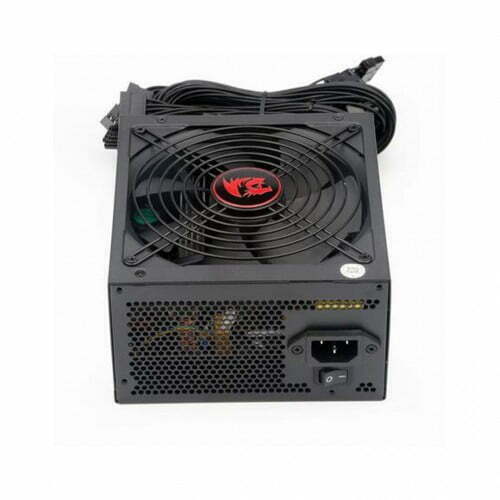

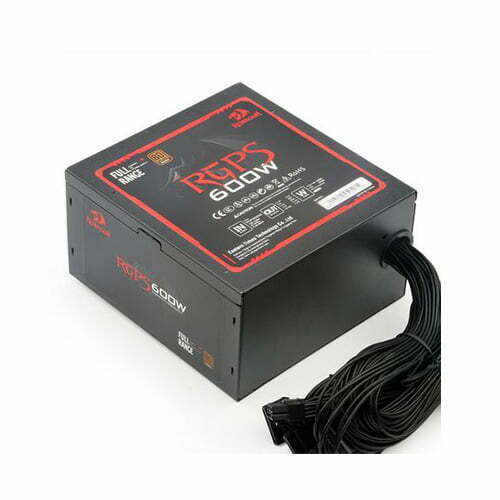

Redragon GC-PS002 Power Supply

Redragon power supplies provide the ideal balance of price and performance. Redragon GC-PS002 600W 80 Plus Bronze non-modular power supply is another fine example of this. This 600W 80 Plus Bronze non-modular power supply switching power supply with PCI-Express Power Connectors. It also supports SLI and Cross-fire Systems. It has a Single plus 12V output rail which offers a maximum compatibility for demand. Certified non-modular Power supply Redragon GC-PS002 600W Non-modular power supply has a 80 PLUS Bronze Certification. This ensures maximum energy efficiency and minimal heat production.The energy Efficiency is  around 85% and the typical input voltage is 100V to 240V. The Frequency Range is 47Hz to 63Hz with 10A at 100VAC and 10A at 240VAC Input Current. The load Range supported is 3.3V at 15Amp, plus 5V at 22Amp; plus 12V at  50A; minus 12V at 0.3Amp and 5VSB at 2.5A with one plus 12V Rails. This power supply also comes with built in comprehensive protection functions like Over Voltage Protection(OVP), Under Voltage Protection (UVP), Short Circuit Protection(SCP) and Over Load Protection(OLP). With a 140mm ultra quite cooling fan; The fan ensures enhanced airflow. With premium curcuit and Japan-made main capacitors, It has a lasting durable build. This capacitors also has a longer lifespan than regular electrolytic capacitors. it is a non-modular PSU with an easy installation and cable management Option with reduce clutter. It also has a Low-profile nylon sleeve cables for professional cable management build. Drive and Power Specifications Redragon GC-PS002 power supply has an ATX Connector with 20 plus 4 pin. The ATX Connector has a 4 plus 4 pin with 12V voltage capacity. The PSU has 4 graphics Connector of 6 plus 2 pin. It also supports the older Molex Connector and has 3 of them. but apart from all that This PSU has 6 SATA Connector with active PFC. Physical Specification The dimension of this power supply is 3.39 x 5.91 x 6.3 inches. This Power Supply's weight is 2.18kg.
