| Summary |
More Information
P/N
CA-1P8-00M1WN-00
SERIES
Level 20
MODEL
Level 20 RS ARGB
CASE TYPE
Middle Tower
DIMENSION (H X W X D)
524 x 240.8 x 553 mm
(20.62 x 9.4 x 21.77 inch)
NET WEIGHT
12.23 kg / 26.96 lbs.
SIDE PANEL
4mm Tempered Glass x 2
COLOR
Exterior & Interior: Black
MATERIAL
SPCC
COOLING SYSTEM
Front (intake) :
200 x 200 x 30mm Addressable RGB fan
(600rpm, 29.2dBA) x 2
Rear (exhaust) :
120 x 120 x 25 mm fan
(1000rpm, 16 dBA)
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
2.5” x 2 or 3.5”x 2 (HDD Rack)
2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)
EXPANSION SLOTS
8
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O PORT
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Button x 1
PSU
Standard PS2 PSU (optional)
FAN SUPPORT
Front:
2 x 200mm or 1 x 200mm
3 x 120mm or 2 x 120mm or 1 x 120mm
3 x 140mm or 2 x 140mm or 1 x 140mm
Top:
2 x 200mm or 1 x 200mm
3 x 120mm or 2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Rear:
1 x 120mm
RADIATOR SUPPORT
Front:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 420mm or 1 x 280mm or 1 x 140mm
Top:
1 x 360mm or 1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Rear:
1 x 120mm
MB Right:
1 x Pacific DP100-D5 Plus Distro(Without HDD Rack)
CLEARANCE
CPU cooler height limitation: 172mm
VGA length limitation: 282mm(With HDD Rack)
400mm(Without HDD Rack)
PSU length limitation: 220mm

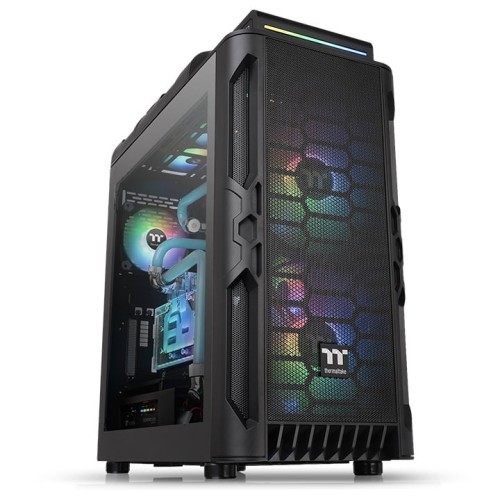

Thermaltake Level 20 RS

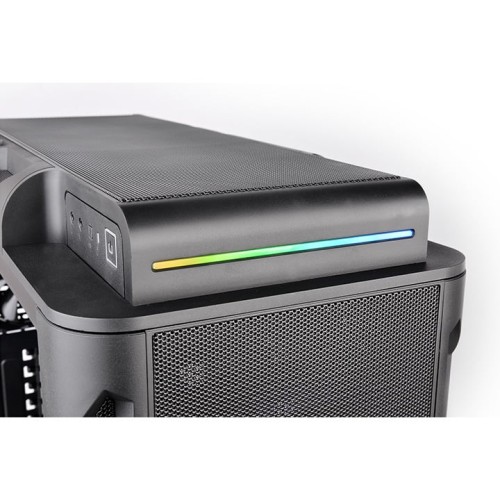

Inspired by sports cars, the Level 20 RS ARGB has a rising top panel that cleverly hides the I/O ports on its side; The ARGB light bar shown on its front perfectly mimics the afterimage of a car’s tail light. It features two tempered glass panels, ATX motherboard support, patented PCI-E slot design and a removable power cover. The Level 20 RS ARGB comes with two preinstalled 200mm 5V ARGB front fans and one 120mm standard rear fan. The front fans are addressable to deliver 16.8 million-color RGB illumination and unparalleled ventilation. By choosing Thermaltake Level 20 RS ARGB, users can experience the best liquid cooling expansion and advanced cable management. Get ready for your race by choosing the new Level 20 RS ARGB. The Level 20 RS ARGB takes our latest case innovations and wraps them in an ultra-modern and sports style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20 RS.
