Asrock B365M Phantom Gaming 4 9th Gen Motherboard

Name: Asrock B365M Phantom Gaming 4 9th Gen Motherboard
Brand: ASRock
SKU: B365M
Price: 10200.00 BDT
Availability: OutOfStock

Asrock B365M Phantom Gaming 4 9th Gen Motherboard

Based on 0 reviews. - Write a review

TBA

Stock: Out Of Stock
Brand: ASRock
Model: B365M
SKU: B365M

Out Of Stock

Add to Wish List Compare this Product

Key Features

- Model: Asrock B365M Phantom Gaming 4
- Supports 9th and 8th Gen Intel Core Processors
- Support Socket 1151
- Chipset Intel B365
- Max 64GB Memory Support

View more details

Contact for Bulk Quantity: 01771833944

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

Generel information
CPU	- Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - Digi Power design - 8 Power Phase design
LAN	- Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15μ Gold Contact in DIMM Slots

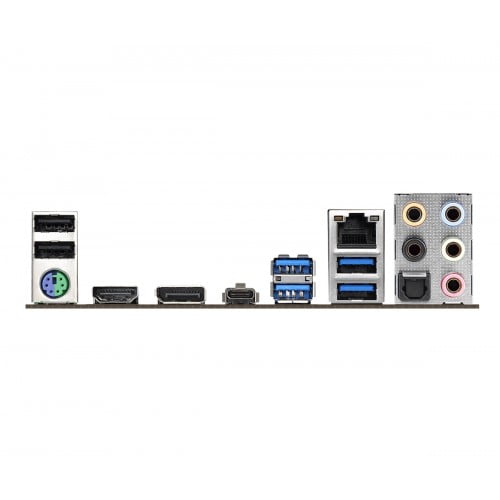

Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.2 - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Slots	- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* - 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage	- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Main Features
BIOS	- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT, DRAM, PCH 1.0V, VCCSA, VCCST Voltage Multi-adjustment
Chipset	- Intel® B365
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.52-in, 24.4 cm x 24.2 cm
Graphics Specifications
Graphics	- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Dual graphics outputs: HDMI 1.4 and DisplayPort 1.2 - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Warranty Information
Warranty	03 years

Asrock B365M Phantom Gaming 4 9th Gen Motherboard

Experience a new level of performance and reliability with the ASRock B365M Phantom Gaming 4 motherboard. It works flawlessly with 9th and 8th Gen Intel Core processors and supports up to DDR4 2666 MHz memory. Oriented at DIY enthusiasts, this board comes with two PCIe 3.0 x16 slots, six SATA 3 slots, two Ultra M.2 slots (one supports PCIe Gen3 x4 & SATA 3 and one supports PCIe Gen3 x4)*and seven USB 3.1 Gen1 to meet diverse connectivity needs. It is ready for VR, and even supports AMD Quad CrossFireX and Intel Optane technology to power extreme demanding applications. You can create unrivalled visual thrills by syncing lighting effect across Polychrome SYNC compatible components. It's built with solid-quality components to ensure amazing quality and durability. Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability. I/O Armor A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
