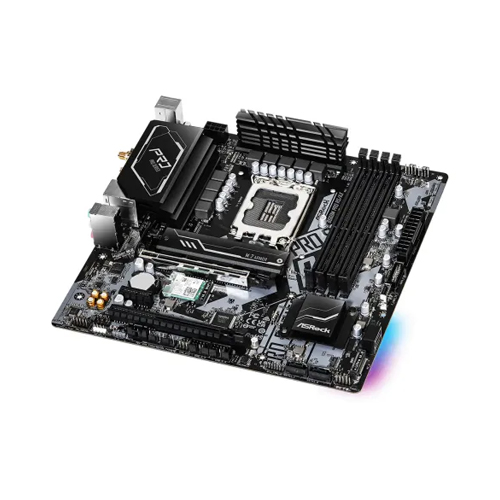

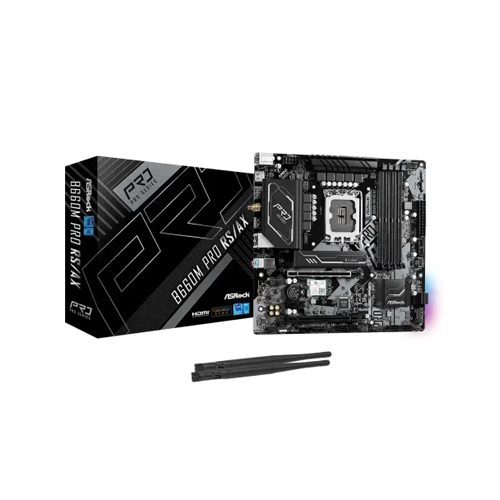

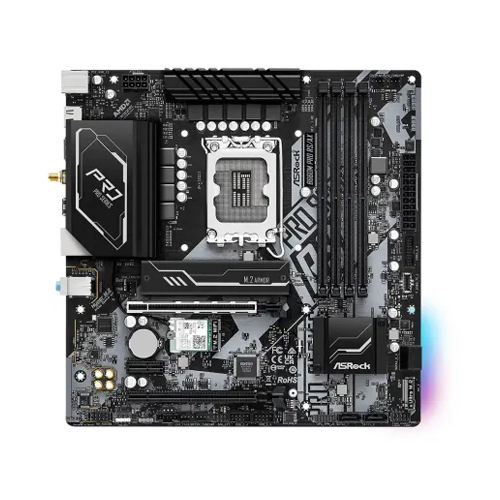

ASRock B660M Pro RS/ax 12th Gen Micro ATX Motherboard

-2 %

ASRock B660M Pro RS/ax 12th Gen Micro ATX Motherboard

Based on 0 reviews. - Write a review

TBA

Stock: Out Of Stock
Brand: ASRock
Model: Model

Out Of Stock

Add to Wish List Compare this Product

Key Features

- CPU Support: 12th Gen Intel Core Processors (LGA1700)
- RAM Support: DDR4 4800MHz (OC)
- Graphics Output: HDMI, DisplayPort
- 802.11ax (WiFi 6E) + Bluetooth

View more details

Contact for Bulk Quantity: 01771833944

অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

Main Features
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustmentf
Chipset	Intel B660
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design
Supported CPU	Supports 12th Gen Intel Core Processors (LGA1700) Digi Power design 8 Power Phase design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology
Graphics Specifications
Graphics	Intel Xe Graphics Architecture (Gen 12) Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Connector & ports
HDMI	1 x HDMI Port
Internal I/O Ports	1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
LAN Port (s)	Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports UEFI PXE
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors

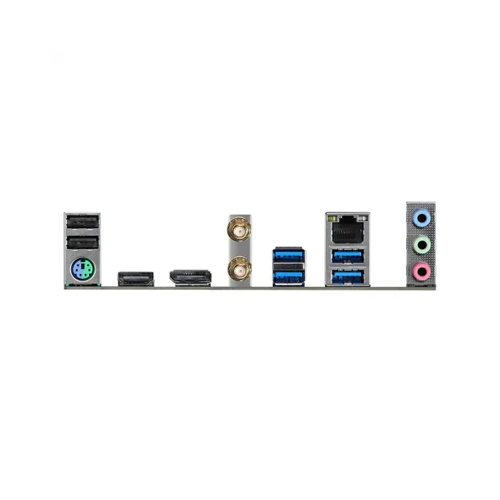

USB (s)	4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection)
Generel information
Type	DDR4 Slots 4 x DIMM Slots Supported Memory Dual Channel DDR4 Memory Technology Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 Maximum Memory 128GB
Display Port (s)	1 x DisplayPort 1.4
Manufacturing Warranty	3 years
Memory	Type: DDR4 Slots: 4 x DIMM Slots Supported Memory Dual Channel DDR4 Memory Technology Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 Maximum Memory: 128GB
Special Features	ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB 802.11ax Wi-Fi 6E ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
TPM (Trusted Platform Module )	1 x SPI TPM Header
Wireless Communication module	802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth + High speed class II Supports MU-MIMO

ASRock B660M Pro RS/ax 12th Gen Micro ATX Motherboard

The ASRock B660M Pro RS/ax Motherboard supports 12th Gen Intel Core Processors (LGA1700). It features an 8 Phase Power Design and it supports DDR4 4800MHz (OC). It supports the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high-end graphic cards. It comes with Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio. Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. It also comes with Intel Gigabit LAN and 802.11ax (WiFi 6E) + Bluetooth. High Speed M.2, Intel Gigabit LAN & Wi-Fi 6E 802.11ax The ASRock B660M Pro RS/ax motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. It has 4 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x4 & SATA3). Intel LAN provides the best throughput performance, lower CPU utilization, and enhanced stability and is able to deliver the ultimate network experience to users. WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. Built-in RGB illumination ASRock B660M Pro RS/ax features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
