ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard
- Stock: In Stock
- Brand: ASRock
- Model: X870 Pro RS WiFi
Key Features
- Supported CPU: Ryzen 9000, 8000, & 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Up to 8000+(OC), Max 256GB
- Graphics Output: 1 x HDMI 2.1, 2 x USB4, Support HDCP 2.3 and max
- Features: 2.5G LAN, 802.11be Wi-Fi 7 Module, Bluetooth 5.4
| General Information | |
| Chipset Manufacturer | AMD X870 |
| Audio | 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) |
| BIOS Type | 256Mb AMI UEFI Legal BIOS with GUI support |
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB |
| Graphics | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* * Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics. |
| M.2 Socket | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
| Maximum Memory Supported | 256GB |
| Memory Type | Dual Channel DDR5 Memory Technology |
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_2 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10 |
| Slots | 4 x DDR5 DIMM Slots |
| Special Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Wireless Communication module | 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO * Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
| Main Features | |
| Supported CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Memory Specifications | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Connector & ports | |
| HDMI | 1 x HDMI Port |

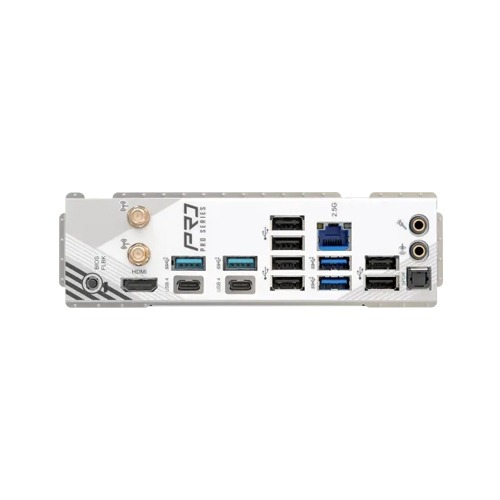

| Internal I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 4 x USB 3.2 Gen1 Type-A Ports 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging 1 x Thermistor Cable Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| LAN Port (s) | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. If M2_2 is occupied, PCIE2 will be disabled. If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode. |
| USB (s) | - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) - 9 x USB 2.0 (6 Rear, 3 Front) * All USB ports support ESD Protection |
| Warranty Information | |
| Warranty | 3 Years |
ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard
ASRock X870 Pro RS WiFi AM5 DDR5 ATX Motherboard is a feature-rich and high-performance motherboard designed to support the latest AMD Ryzen 7000, 8000, and 9000 series processors. Built with the AMD X870 chipset, it provides an advanced foundation for building a powerful PC with support for PCIe 5.0, dual-channel DDR5 memory, and Wi-Fi 7 connectivity.With a robust 8-layer PCB, this motherboard ensures stability and durability for high-end systems. It features four DDR5 DIMM slots, supporting up to 256GB of memory with speeds that can exceed 8000 MHz when overclocked. The ASRock X870 Pro RS also provides ample expansion options with PCIe 5.0 and PCIe 4.0 slots, enabling you to install cutting-edge GPUs and NVMe storage drives. The inclusion of multiple M.2 slots, including a blazing-fast PCIe Gen5 x4 M.2 socket, guarantees high-speed data transfers, perfect for those looking to install large, fast SSDs.The motherboard also includes a range of connectivity options, such as 2.5 Gigabit LAN, USB4 Type-C ports, and the latest 802.11be Wi-Fi 7 technology, ensuring fast and reliable internet speeds. The integration of Realtek ALC1220 audio codec with Nahimic Audio provides an immersive sound experience, while the HDMI 2.1 support allows 4K 120Hz output for high-quality video playback.For system stability and overclocking, the ASRock X870 Pro RS boasts a 14+2+1 power phase design with 80A Dr.MOS, ensuring a steady power supply for your CPU, SOC, and miscellaneous components. Additionally, the motherboard comes with ASRock's EZ Mode and BIOS Flashback button, making installation and updates simple.With a three-year warranty and advanced features, this motherboard is ideal for gamers, content creators, and PC enthusiasts who demand high-performance and future-proof technology.
Features
- Supports AMD Ryzen™ 7000, 8000, and 9000 Series CPUs with Socket AM5 for powerful performance.
- PCIe 5.0 & PCIe 4.0 slots for high-speed data transfer and support for next-gen GPUs.
- Dual-channel DDR5 memory support, up to 256GB and speeds exceeding 8000 MHz (overclocked).
- Triple M.2 slots (PCIe Gen5, Gen4, and SATA3) for fast SSD storage options.
- Wi-Fi 7 module with 2.5G LAN for ultra-fast connectivity.
- 7.1 CH HD Audio with Nahimic Audio for immersive sound quality.
- USB4 Type-C (40 Gb/s) ports for fast data transfer.
- Advanced cooling solutions, including multiple fan headers for optimal thermal management.
- Dr.MOS Power Stages (14+2+1) with 80A for stable power delivery during heavy loads and overclocking.
- Flexible I/O Shield for easy installation and better protection.
