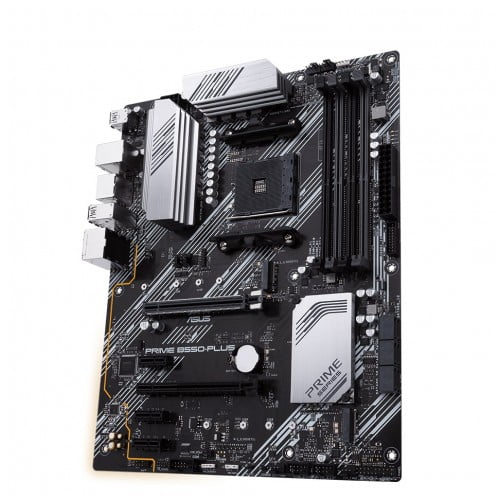

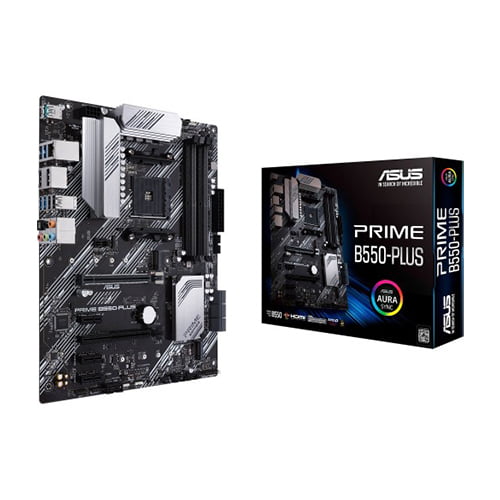

ASUS Prime B550 Plus AM4 ATX Motherboard

ASUS Prime B550 Plus AM4 ATX Motherboard
ASUS Prime B550 Plus AM4 ATX Motherboard
ASUS Prime B550 Plus AM4 ATX Motherboard
-19 %
ASUS Prime B550 Plus AM4 ATX Motherboard
ASUS Prime B550 Plus AM4 ATX Motherboard
ASUS Prime B550 Plus AM4 ATX Motherboard
ASUS Prime B550 Plus AM4 ATX Motherboard
18,300৳
22,500৳
Ex Tax: 18,300৳
EMI starts at 6,417৳/month. View all 25 banks EMI plans >
  • Stock: In Stock
  • Brand: Asus
  • Model: Model

Key Features

    • Model: ASUS Prime B550 Plus
    • Aura Sync RGB
    • Ultrafast connectivity
    • Comprehensive cooling
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Chipset AMD B550
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Graphics Specifications
Graphics 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ)
Connector & ports
Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Generel information
CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Processors
Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD RyzenTM 4000 G-Series Processor 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
LAN Realtek RTL8111H ASUS LANGuard
Memory AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * AMD RyzenTM 4000 G-Series Processor 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Operating System Windows 10 64-bit

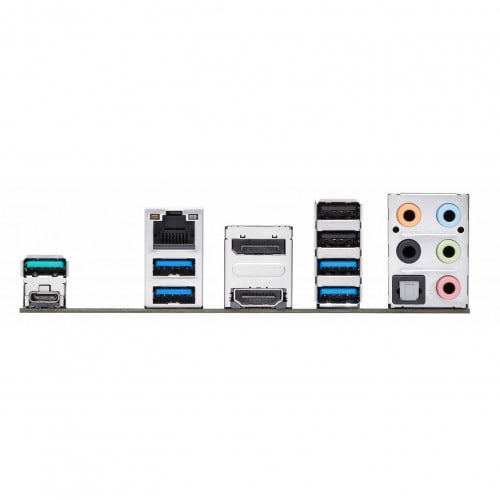

USB Ports Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
Warranty Information
Warranty 03 Years

ASUS Prime B550 Plus AM4 ATX Motherboard

ASUS Prime B550 Plus AM4 ATX Motherboard designed for the AM4 socket and using the B550 chipset, this motherboard can support up to 128GB of DDR4 RAM with frequencies up to 3200 MHz or, if overclocking, up to 4800 MHz Users can also connect up to six SATA III drives and up to two M.2 drives ranging from 2242 to 22110. One of these slots' benefits 3rd Gen AMD processors with PCIe 4.0 x4 performance, while the other slot features PCIe 3.0 x4 speeds. The Prime B550 Plus also supports RAID 0, 1, 10, and 5 for more resilient data storage, and Cross FireX allows for multiple-GPU setups. In addition to one M.2 PCIe 4.0 x16 slot and one M.2 PCIe 3.0 x16 slot, users have access to three PCIe 3.0 x1 slots. All-Around Energy Efficiency With the Energy Processing Unit, or EPU, you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with an away mode. Flexible Cooling Controls Fan Xpert 4 software provides comprehensive control over fans, water pumps, and all-in-one or AiO coolers. Whether cooling with air or water, an Auto-Tuning mode allows you to configure all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds below the default minimum to keep your system quiet when performing light tasks. Fans, water pumps, and AiO coolers can also be controlled via the UEFI BIOS. Digital Power Control The Digi+ voltage regulator module or VRM delivers real-time control over voltage drop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for stability and performance. VRM Heatsink and Thermal Pads Two VRM heatsinks with thermal pads underneath to improve heat transfer from the MOSFETs and chokes for better cooling performance. Cooler by Design The Prime B550 series features cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Furthermore, each header can dynamically reference three thermal sensors. And, with Fan Xpert 2+, you can map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks. The Prime B550-Plus also features a dedicated PWM/DC header for self-contained water-cooling setups and onboard chassis fan headers supporting PWM and DC control. Connectivity Numerous USB ports support high-end rigs loaded with peripherals, including a USB Type-C and Type-A connector with USB 3.2 Gen 2 connectivity for compatible cases. The Prime B550-Plus also supports Thunderbolt EX 3-TR, an Intel certified Thunderbolt 3 add-on card that enables bidirectional speeds of up to 40 Gb/s via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100W of power to fast-charge devices. Onboard M.2 PCIe 4.0 M.2 slots support drives up to 22110 and provide NVMe SSD RAID support for a performance boost. Create a RAID configuration with up to 64 Gb/s PCIe 4.0 storage devices to take advantage of the 3rd Generation AMD Ryzen platform. One M.2 slot supports PCIe 4.0 and one supports PCIe 3.0. Optimized for Audio Audio shielding separates analog and digital signal domains, reducing the chance of multilateral interference. There are also separate layers for left and right tracks, ensuring lower crosstalk between audio paths. Aura Sync ASUS Aura offers full RGB lighting control with functional presets for RGB LED strips connected to the onboard RGB headers. And, it can all be synced with Aura-capable hardware. Addressable Gen 2 RGB Header The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen ARGB devices, allowing the software to tailor lighting effects to specific devices. This header also offers backward-compatibility with existing Aura RGB gear. Armory Crate Armory Crate is a software utility designed to give you centralized control of supported products. From a single interface, Armory Crate allows you to customize RGB lighting and effects for compatible devices in your build. The software also provides control of settings for ASUS products, including keyboard and mouse preferences. Armory Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community. [ninja_tables id="47234"]

Write a review

Note: HTML is not translated!
Bad Good

What is the ASUS Prime B550 Plus AM4 ATX Motherboard price in bd 2024?

The Asus Model PC Components price in BD is 18,300৳. In today's market on 15-06-2024. Ultra Technology offers you the lowest price of Asus Model PC Components: 18,300৳ instead of 22,500৳ regular price. Besides, You can buy this product on EMI 6,417৳/month total of 19,252৳ for 3 months EMI Plan, Up to 36-month EMI plans available through 25 banks. The Asus Model PC Components is In Stock now in our store (Call us to know about details of this product). 14 customer buy this product From 2927 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Asus Model online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
