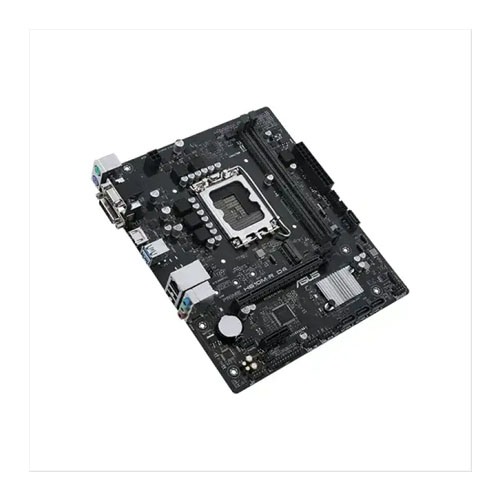

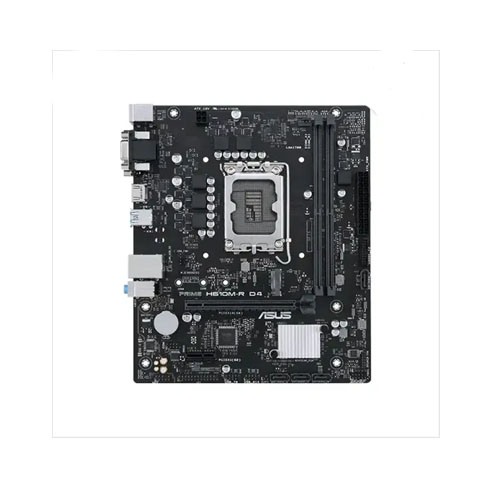

ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard

Product ID: UT-13444
Customer rating: No reviews yet
Availability: In stock
Questions: 0 answered

1 / 2

All prices include VAT. 0% EMI from ৳917/mo on 29 banks.

Save ৳2,500 -19%৳11,000~~Was ৳13,500~~

Key features

Full specs

emory2 x DIMM, Max. 64GB, DDR4,
Form FactormATX Form Factor
SocketIntel Socket LGA1700
ChipsetIntel H610 Chipset for 14th Gen, 13th Gen & 12th Gen,

0% EMI on credit cards of 29 banks — ৳917/mo for 12 months.
Online price saves you ৳2,500 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandAsus330 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1700
Chipset	Intel H610
Form Factor	Micro ATX

RAM Type	DDR4
Maximum Memory	64GB
Memory Slots	2 Slots
Features	M.2

Processor

Supported CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memory

Memory	2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture

Expansion & Storage

Expansion Slots	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot

Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports

Graphics & Display

Onboard Graphics	1 x DisplayPort 1 x VGA port 1 x HDMITM port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMITM 2.1.

Networking

LAN	1 x Realtek 1Gb Ethernet

Audio

Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers

Ports & Connectors

USB	Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Rear Panel I/O	2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port

Internal Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header

Other Features

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Special Features

ASUS 5X PROTECTION III DIGI+ VRM LANGuard Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-Design Q-DIMM Q-Slot Q-LED Core ASUS Thermal Solution Aluminum heatsink design Software Features: ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode

Operating System	Windows 11 64-bit, Windows 10 64-bit

Warranty

Warranty	3 Years Replacement Warranty

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

ASUS PRIME H610M-R D4 Motherboard

Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header. The ASUS PRIME H610M-R D4 Motherboard stands as a reliable and budget-friendly choice for users building an Intel 12th or 13th Gen system. Designed with durability, stability, and everyday performance in mind, it offers essential features that meet the needs of general users, office workers, students, and entry-level gamers.

Processor and Chipset Compatibility

One of the major strengths of the ASUS PRIME H610M-R D4 Motherboard is its compatibility with the latest Intel CPUs. It supports:

12th Gen Intel Core, Pentium Gold, and Celeron processors
13th Gen Intel Core processors

The H610 chipset provides essential features required for smooth daily computing and light productivity tasks. Although it does not offer overclocking like higher-end chipsets, it delivers dependable performance for mainstream users who want a stable system without unnecessary extras.

Memory and Performance Capabilities

This motherboard supports DDR4 RAM, which is still widely used due to its affordability and strong performance. Users can install up to 64GB of DDR4 memory across two DIMM slots, with speeds reaching up to 3200MHz (depending on CPU). For everyday workloads, multitasking, office applications, and light gaming, DDR4 remains an excellent and cost-effective.

Expansion Options and Connectivity

Even with its compact form factor, the ASUS PRIME H610M-R D4 Motherboard offers a solid range of connectivity and expansion options. Key features include:

PCIe Slots

One PCIe 4.0 x16 slot for installing modern graphics cards
One PCIe 3.0 x1 slot for additional expansion cards

Storage Support

One M.2 slot (PCIe 3.0) for NVMe SSDs
Four SATA 6Gb/s ports for HDDs and SATA SSDs

This combination makes it convenient for users who want fast boot drives and additional storage options. The inclusion of an NVMe slot ensures quick loading times and improved system responsiveness.

USB and Connectivity

The motherboard provides:

USB 3.2 Gen 1 Type-A ports
USB 2.0 ports
HDMI and VGA display outputs
Gigabit Ethernet support
Multiple fan headers

Software, BIOS, and User Experience

The motherboard features ASUS’s user-friendly UEFI BIOS, which is known for its simplicity, clean interface, and easy navigation. Whether you are a beginner or experienced builder, the BIOS provides clear system information, intuitive controls, and quick configuration options.

ASUS offers various software tools to enhance system performance, such as:

AI Suite 3 for system monitoring and optimization
Fan Xpert for cooling control
EZ Flash 3 for BIOS updating

Buy ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard from Ultra Technology

Get the ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard from Ultra Technology for ৳11,000 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Asus, explore more Asus Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
