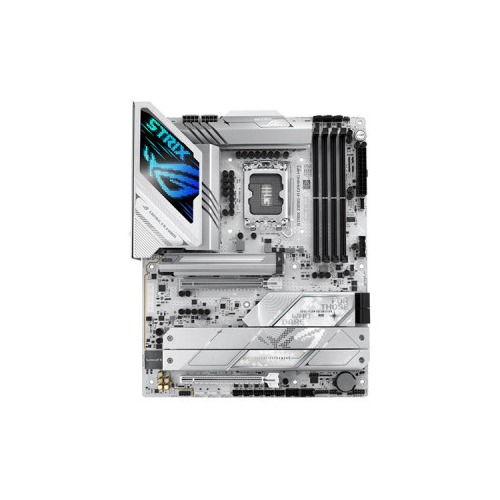

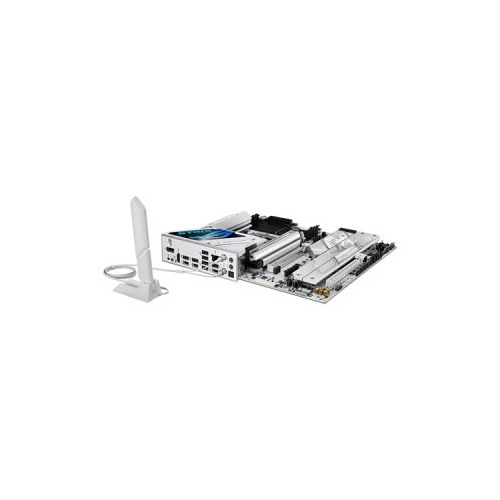

ASUS ROG STRIX Z890-A GAMING WIFI Intel LGA1851 ATX Gaming Motherboard




- Stock: In Stock
- Brand: Asus
- Model: ROG STRIX Z890-A GAMING WIFI
Key Features
- Socket: Intel Socket LGA1851
- Memory: 4 x DIMM slots, max. 192GB, DDR5
- Storage: Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
- Chipset: Intel Z890 Chipset for Core Ultra Processors (Series 2)
Main Features | |
BIOS | 256 Mb UEFI AMI BIOS |
Chipset | Intel Z890 Chipset |
Supported CPU | Support Intel Core Ultra Processors (Series 2)* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for the CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU type. |
Generel information | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
Back Panel I/O Ports | 2 x Thunderbolt 4 ports (2 x USB Type-C)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
Ethernet | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
Expansion Slots | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Graphics | 1 x DisplayPort* 1 x HDMI port** 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs*** - Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** In Thunderbolt 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20. **** VGA resolution support depends on the processors' or graphic cards' resolution. ***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
Internal I/O Port | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex Supports DIMM FIT ASUS Enhanced Memory Profile III (AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Operating System | Windows 11 (22H2 later) |
Software Features | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving AIDA64 Extreme (60 days free trial) HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (30 Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-SlotASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |
Storage | Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
USB | Rear USB (Total 10 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)** 2 x USB 5Gbps ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C )* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifica |
Warranty Information | |
Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
ASUS ROG STRIX Z890-A GAMING WIFI Intel LGA1851 ATX Gaming Motherboard
The ASUS ROG STRIX Z890-A GAMING WIFI Intel LGA1851 ATX Gaming Motherboard is a powerhouse designed for gamers and enthusiasts seeking cutting-edge performance and unmatched features. Powered by the Intel Z890 chipset, this motherboard supports Intel Core Ultra Processors (Series 2), offering exceptional computing power and next-level compatibility. Its sleek ATX form factor is packed with features that cater to high-performance gaming and creative tasks.
Audio and Graphics Excellence
The motherboard features ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, providing an immersive audio experience with premium components like the Savitech SV3H712 AMP and audio shielding technology. The advanced graphics support includes DisplayPort 1.4, HDMI 2.1, and Thunderbolt 4 ports, delivering up to 8K resolution for stunning visuals.
Effortless Connectivity
The ASUS ROG STRIX Z890-A excels in connectivity, featuring dual Thunderbolt 4 ports, six USB 10Gbps ports, two USB 5Gbps ports, and front-panel USB Type-C support. The onboard Wi-Fi 7 and Intel 2.5Gb Ethernet ensure ultra-fast networking for seamless online gaming and streaming.
Enhanced Cooling and Storage
With five M.2 slots, PCIe 5.0 x16, and four SATA 6Gb/s ports, the motherboard provides versatile storage and expansion options. Its advanced thermal solutions include M.2 heatsinks, a backplate, and multiple fan headers for efficient cooling.
Unparalleled Memory and Software
The motherboard supports up to 192GB of DDR5 RAM clocked at 9066+MT/s (OC), ensuring lightning-fast multitasking. ASUS-exclusive software like Armoury Crate, Aura Sync, and AI Overclocking Guide simplify customization and optimization.
Durability and Ease of Use
Featuring pre-mounted I/O shields, Q-design elements, and a 3-year warranty, the ASUS ROG STRIX Z890-A combines reliability with ease of use. Whether for gaming or professional tasks, it offers a complete package for high-end computing.
