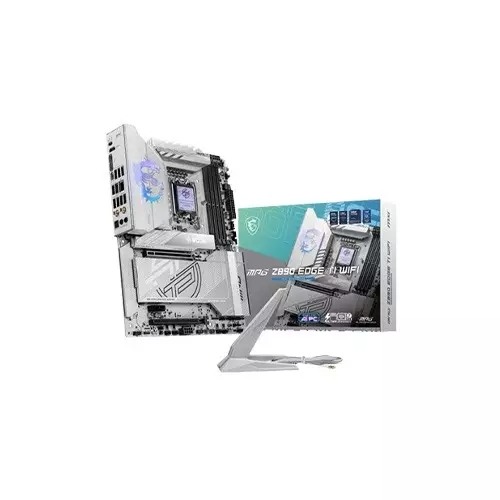

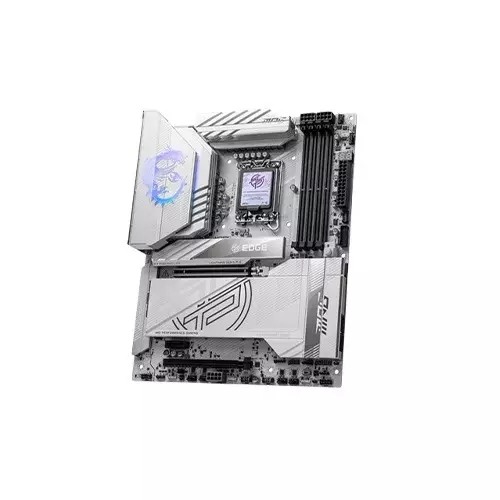

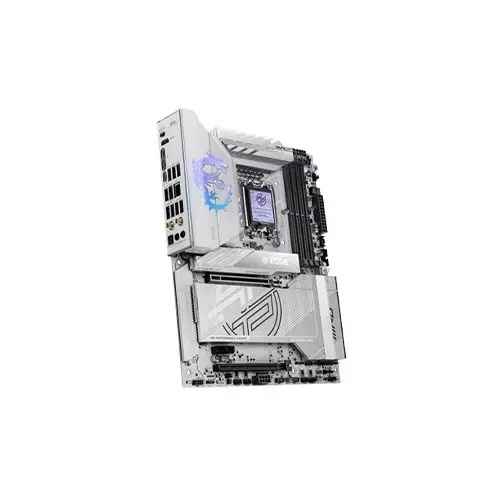

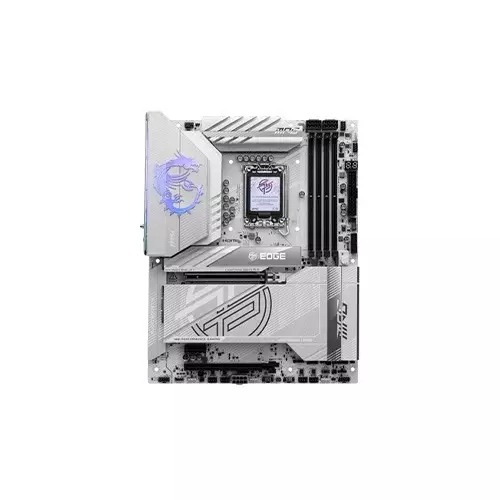

MSI MPG Z890 EDGE TI WIFI LGA 1851 ATX Motherboard

MSI MPG Z890 EDGE TI WIFI Motherboard

MSI MPG Z890 EDGE TI WIFI is a next-generation ATX motherboard designed for high-end performance, premium connectivity, and modern gaming or productivity builds. Featuring the latest Intel Z890 chipset, it supports Intel Core Ultra Series 2 processors on the LGA 1851 socket, making it an ideal choice for enthusiasts seeking cutting-edge technology and stability.

Powerful Performance & Compatibility

The motherboard supports Intel Core Ultra Processors (Series 2), leveraging the power of Intel’s latest architecture for exceptional processing capability. Built on the INTEL Z890 chipset, it ensures fast data throughput and stable system performance. With a robust ATX form factor (243.84mm x 304.8mm), it provides ample space for components, cooling, and expansion.

Memory & Storage Capabilities

Equipped with 4x DDR5 UDIMM slots, the MSI MPG Z890 EDGE TI WIFI supports up to 256GB of DDR5 memory. It delivers blazing speeds up to 9200+ MT/s (OC), ensuring smooth multitasking, gaming, and content creation.

For storage, it offers five M.2 slots and four SATA 6G ports, supporting PCIe 5.0, 4.0, and SATA modes. The multiple M.2 sockets enable users to configure NVMe SSDs for lightning-fast data transfer and enhanced performance. The board also supports RAID 0, 1, 5, and 10 configurations for both SATA and NVMe devices.

Advanced Expansion & Graphics Support

The board includes three PCIe slots, with the primary PCI_E1 slot supporting PCIe 5.0 x16 directly from the CPU. Users can manually adjust configurations to X8+X8 or X8+X4+X4 via BIOS, enabling flexible multi-GPU setups.

For display connectivity, the motherboard features 1x HDMI 2.1 port and 2x Type-C DisplayPort (Thunderbolt 4) ports supporting up to 8K@60Hz or 4K@120Hz resolutions—perfect for creators and gamers using integrated graphics.

Networking & Wireless Connectivity

Connectivity is future-ready with Intel® Killer™ E5000B 5G LAN, ensuring low latency and stable wired networking. The built-in Intel® Killer BE1750x Wi-Fi 7 provides wireless speeds up to 5.8Gbps, supporting 2.4GHz/5GHz/6GHz bands with MU-MIMO and Bluetooth 5.4 for superior wireless performance.

Comprehensive I/O & Internal Connections

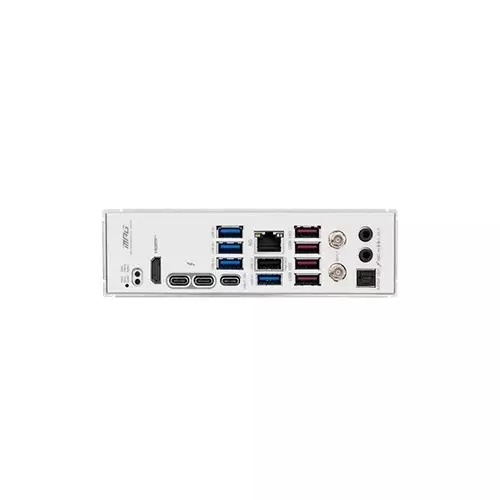

Rear and internal ports include:

• USB Ports: 1x USB 2.0 (rear), 4x USB 2.0 (front), multiple USB 5Gbps and 10Gbps Type-A, plus USB 20Gbps Type-C with 27W PD fast charging.

• Audio: Premium Realtek ALC1220P codec delivers 7.1-channel HD audio with S/PDIF output.

• Internal Headers: Multiple fan headers, RGB connectors, TPM 2.0 support, Thunderbolt 5 connector, and EZ Debug LEDs for monitoring system status.

Special Features

The MSI MPG Z890 EDGE TI WIFI includes advanced system diagnostic tools such as EZ Debug LED and EZ Digit Debug LED for quick troubleshooting. RGB enthusiasts will enjoy 3x Addressable RGB V2 and 1x standard RGB connector, enabling complete lighting customization.

Conclusion

With its blend of high-end features, robust power delivery, and superior connectivity, the MSI MPG Z890 EDGE TI WIFI stands as a flagship ATX motherboard built for gamers, creators, and professionals who demand the best from their Intel-based systems.

Features

• Supports latest Intel Core Ultra Series 2 Processors with LGA 1851 socket
• Powered by Intel Z890 chipset for superior performance and stability
• ATX form factor (243.84mm x 304.8mm) with durable build quality
• Supports DDR5 memory up to 256GB, speeds up to 9200+ MT/s (OC)
• Equipped with 5x M.2 slots and 4x SATA 6Gb/s ports for versatile storage options
• Supports PCIe 5.0 and PCIe 4.0 expansion slots for next-gen GPUs and devices
• HDMI 2.1 and 2x Thunderbolt 4 Type-C DisplayPorts supporting up to 8K@60Hz
• Intel® Killer™ E5000B 5G LAN for ultra-fast wired networking
• Built-in Intel® Killer BE1750x Wi-Fi 7 and Bluetooth 5.4 for high-speed wireless connectivity
• Realtek ALC1220P 7.1-channel HD Audio codec with S/PDIF output
• Multiple USB ports: USB 2.0, 5Gbps, 10Gbps, and 20Gbps Type-C with 27W PD fast charging
• Supports RAID 0/1/5/10 for both SATA and NVMe SSDs
• EZ Debug LED and EZ Digit Debug LED for easy troubleshooting
• Includes RGB and ARGB headers for customizable lighting setups
• Advanced thermal management with multiple fan and pump headers
• Thunderbolt 5 card connector for future expansion and high-speed data transfer
