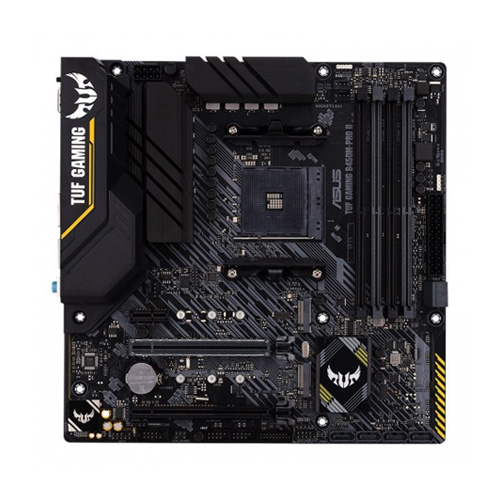

ASUS TUF GAMING B450M-PRO II Micro-ATX Gaming Motherboard
Discontinued
- Stock: Discontinued
- Brand: Asus
- Model: TUF GAMING B450M-PRO II
Discontinued
Key Features
- Model: TUF GAMING B450M-PRO II
- 4 x DIMM, Max. 128GB, DDR4 up to 4400(O.C)
- Supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
- Aura Sync RGB Lighting
| General Information | |
| Audio Feature | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : Exclusive DTS Custom for GAMING Headsets. Audio cover Audio Shielding Dedicated audio PCB layers Premium Japanese audio capacitors |
| CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (x4 mode) 1 x PCIe 2.0 x1 |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b |
| Internal I/O Port | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| LAN | Realtek RTL8111H 1Gb Ethernet TUF LANGuard |
| Memory | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/ 3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Operating System | Windows® 10 64-bit Windows® 7 64-bit |
| Storage | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*1 Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD B450 chipset : 1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*2 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |

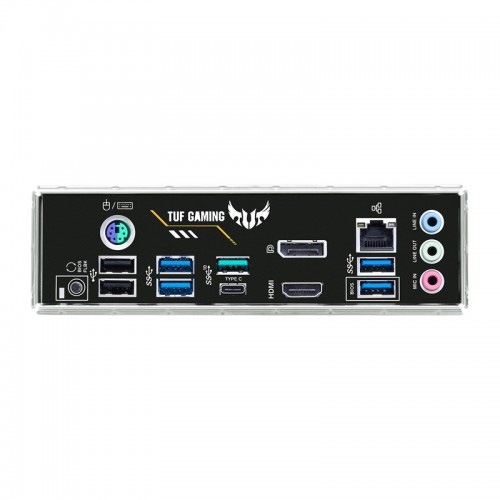

| USB Ports | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD B450 |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Warranty Information | |
| Warranty | 3 Years |
ASUS TUF GAMING B450M-PRO II AMD AM4 Micro-ATX Gaming Motherboard
ASUS TUF GAMING B450M-PRO II AMD AM4 Micro-ATX Gaming Motherboard provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. The ASUS TUF Gaming B450M-PRO II motherboard is a micro-ATX gaming motherboard that is based on the AMD AM4 socket and is compatible with 2nd and 3rd generation AMD Ryzen processors. It features a robust power delivery system and supports up to 64GB of DDR4 memory with speeds of up to 4400 MHz. In terms of connectivity, the TUF Gaming B450M-PRO II has a Realtek L8200A Gigabit Ethernet controller, support for up to six USB 3.2 Gen 1 ports, and up to four SATA III ports for storage. It also has a range of audio features, including a Realtek ALC S1200A 8-Channel High Definition Audio Codec and support for DTS Custom audio.
ASUS TUF GAMING B450M-PRO II Motherboard Features
- Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 2+
- Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
- Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear
Overall, the ASUS TUF Gaming B450M-PRO II is a reliable and versatile gaming motherboard that provides a solid foundation for building a gaming PC with AMD Ryzen processors.
