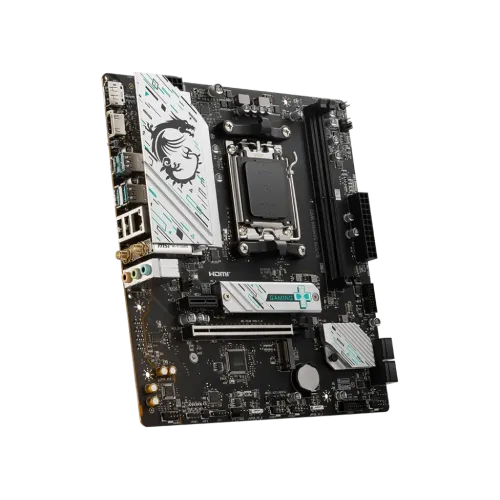

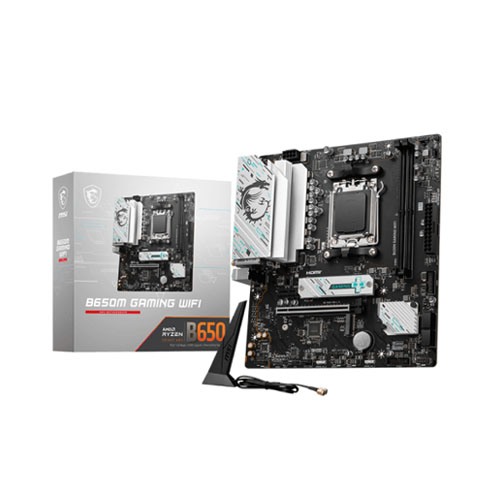

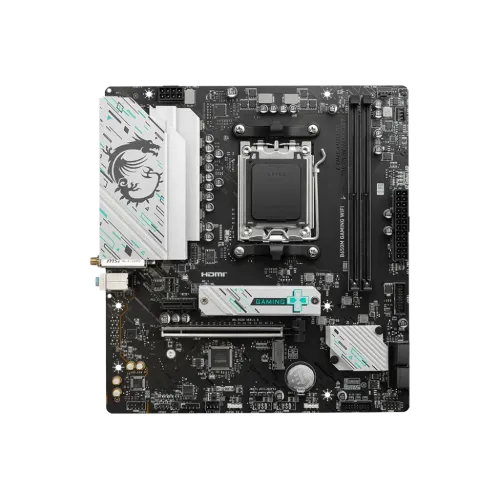

MSI B650M GAMING WIFI AM5 mATX Motherboard

MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
-7 %
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
MSI B650M GAMING WIFI AM5 mATX Motherboard
Special Offer Ends In:
Day
Hour
Min
Sec
18,200৳
19,500৳
Ex Tax: 18,200৳
EMI starts at 6,382৳/month. View all 26 banks EMI plans >
  • Stock: In Stock
  • Brand: MSI
  • Model: B650M GAMING WIFI

Key Features

    • Supported CPU: Ryzen 7000 / 8000 Series Processors for Socket AM5
    • Supported RAM: 2x DDR5, up to 7800+(OC) MHz
    • Graphics Output: 1x HDMI, 1x Display Port
    • Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio Channel Realtek ALC897 Codec
7.1-Channel High Definition Audio
Display Port (s) 1x DisplayPort
M.2 Socket 2x M.2
Memory Specifications Supported Memory:7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
PCI 1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Slots 2
Wireless Communication module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3
Graphics Card 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Main Features
Chipset AMD B650
Form Factor mATX
226mmx243.84mm
Supported CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5
Memory Specifications
Maximum Memory 128GB
Connector & ports
HDMI 1x HDMI
Internal I/O Ports INTERNAL IO
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed

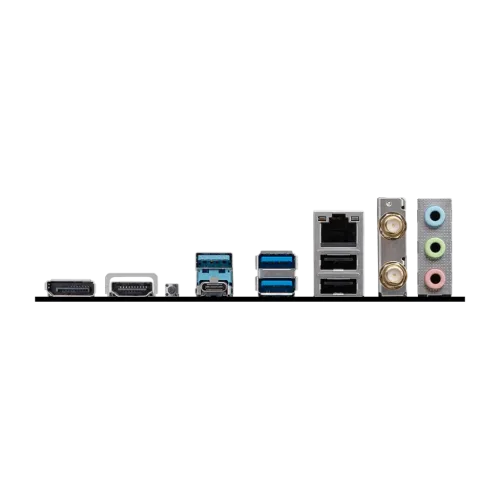

USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)
Warranty Information
Warranty 3 Years

MSI B650M GAMING WIFI AM5 mATX Motherboard

The MSI B650M GAMING WIFI AM5 mATX Motherboard is a powerhouse designed to elevate your gaming experience to new heights. Equipped with 1x HDMI and 1x Display Port, it ensures seamless connectivity to your display devices for stunning visuals and immersive gaming experiences. With Bluetooth 5.3 and AMD Wi-Fi 6E support, along with compatibility with AMD Ryzen 8000 and 7000 Series Desktop Processors, it offers unparalleled connectivity and processing power. DDR5 Memory support, capable of reaching speeds of up to 7800+(OC) MHz, ensures optimal performance, while Core Boost and Memory Boost technologies enhance stability and compatibility. Lightning Gen4 M.2 support and PCIe 4.0 slots deliver lightning-fast data transfer speeds, and Steel Armor reinforcement protects VGA cards from bending and electromagnetic interference. AUDIO BOOST technology provides studio-grade sound quality, and the high-quality 6-layer PCB made from 2oz thickened copper ensures superior durability and heat dissipation. The MSI B650M GAMING WIFI AM5 mATX Motherboard combines advanced features, robust construction, and unmatched performance to create the ultimate gaming platform for enthusiasts and gamers alike.
