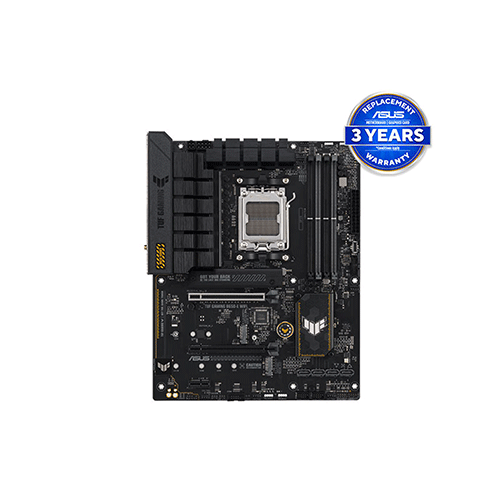

ASUS TUF GAMING B650-E WIFI AM5 ATX Gaming Motherboard
- Stock: In Stock
- Brand: Asus
- Model: TUF GAMING B650-E WIFI
Key Features
- Chipset: AMD B650 Chipset for AMD Ryzen Desktop Processors
- Socket: AMD Socket AM5
- Storage Supports: 3 x M.2 slots and 4 x SATA 6Gb/s ports
- Memory: 4 x DIMM, Max. 192GB, DDR5
| General Information | |
| Back Panel I/O Ports | 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| CPU | AM5 Socket for AMD Ryzen Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Graphic | 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Memory | 4 x DIMM, Max. 192GB, DDR5 8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Operating System | Windows 11 Windows 10 64-bit |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. |
| USB | Rear USB (Total 8 ports) 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD B650 |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Connector & ports | |
| Audio Jack | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 vSurround Sound audio output. |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function |
| Physical Specification | |
| Expansion Slots | AMD Ryzen 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) 1 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Warranty Information | |
| Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
ASUS TUF GAMING B650-E WIFI AM5 ATX Gaming Motherboard
The ASUS TUF GAMING B650-E WIFI AM5 ATX Gaming Motherboard is engineered for serious gamers and enthusiasts, offering a balance of performance, durability, and cutting-edge features. Designed for the latest AMD Ryzen processors, this motherboard supports the AM5 socket, ensuring compatibility with AMD Ryzen 7000 and 8000 series processors, making it future-proof for next-gen CPUs. It offers support for up to 192GB of DDR5 RAM, with overclocking speeds reaching beyond 8000 MHz for ultra-responsive performance. Its dual-channel memory architecture, along with support for AMD EXPO (Extended Profiles for Overclocking) and ASUS's OptiMem II technology, optimizes memory stability and performance. For storage, the board comes with three M.2 slots supporting PCIe 4.0 and PCIe 5.0, offering blazing-fast data transfer rates, in addition to four SATA 6Gb/s ports for more traditional storage options. The TUF GAMING B650-E WIFI features multiple PCIe 4.0 slots, providing flexibility for graphics cards and other expansion cards, ensuring you're ready for multi-GPU setups or other high-performance add-ons. With rear I/O featuring eight USB ports (including USB 10Gbps Type-A and Type-C) and front panel headers supporting seven additional USB ports, you’ll have all the connectivity options needed for peripherals and external devices. The board also features integrated Wi-Fi 6E for high-speed, low-latency wireless connections, and 2.5Gb Ethernet for wired networking. ASUS's signature TUF durability is evident in features like DIGI+ VRM, ESD guards, and TUF LANGuard. It also includes Aura Sync RGB lighting, addressable Gen 2 headers, and an array of thermal solutions, including M.2 heatsinks and a VRM heatsink, ensuring your system stays cool even during extended gaming sessions. Backed by a 3-year warranty, the ASUS TUF GAMING B650-E WIFI AM5 motherboard offers exceptional durability, performance, and versatility for hardcore gamers and PC builders.
