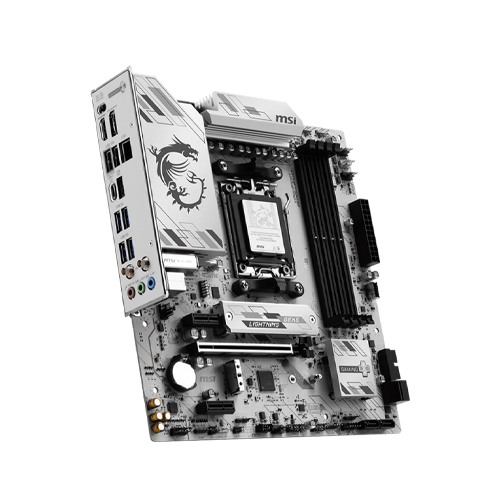

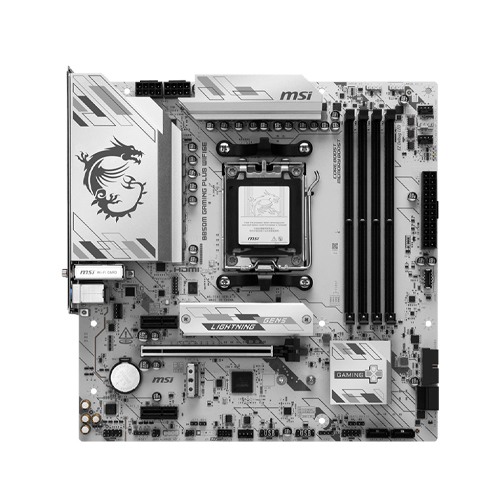

MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: B850M GAMING PLUS WIFI6E
Key Features
- Supports AMD Ryzen 9000/8000/7000 CPUs
- Dual-channel DDR5 up to 8200+ MHz (OC)
- PCIe Gen5 M.2 & 2.5G LAN for high-speed performance
- Built-in WiFi 6E & HDMI 2.1 for seamless connectivity
| General Information | |
| Chipset Manufacturer | AMD B850 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| BACK PANEL PORTS | Clear CMOS Button DisplayPort 1.4 2.5G LAN USB 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 5Gbps (Type-A) |
| I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LAN | Realtek® 8125D 2.5G LAN |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Operating System | Support for Windows® 11 64-bit |
| PCB Form | mATX 243.84mmx243.84mm |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Slot | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| USB | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Warranty Information | |
| Warranty | 3 Years |
MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard
The MSI B850M GAMING PLUS WIFI6E AM5 mATX Motherboard is engineered for high-performance gaming and future-ready desktop computing. Powered by the AMD B850 chipset and supporting AMD Ryzen™ 9000, 8000, and 7000 Series processors on the latest AM5 socket, this motherboard ensures next-gen performance, robust power delivery, and extensive compatibility. Ideal for gamers, content creators, and power users alike.This mATX motherboard supports up to 256GB of DDR5 memory with speeds up to 8200+ MT/s (OC), enabling unmatched multitasking and faster data throughput. Whether you're gaming, editing, or streaming, its memory performance is optimized with AMD EXPO and dual-channel technology for higher bandwidth and efficiency.Enjoy immersive visuals with onboard HDMI 2.1 and DisplayPort 1.4, supporting up to 4K at 60Hz. The board features dual PCIe slots, including PCIe 4.0 x16 for modern GPUs and multiple PCIe x1 for expansions. The storage is equally powerful, with two M.2 slots supporting PCIe 5.0 and PCIe 4.0 speeds and four SATA 6Gbps ports—giving flexibility for NVMe and traditional drives. RAID 0/1/10 support adds data security.Stay connected with built-in Wi-Fi 6E and Bluetooth 5.3, along with Realtek 2.5G LAN for ultra-fast, stable networking. USB 10Gbps Type-C and Type-A ports offer rapid data transfer and device connectivity. EZ Debug LEDs and Memory Detection LED simplify troubleshooting, making it ideal for DIY builders.If you're seeking a compact, high-performance AM5 motherboard loaded with next-gen features, the MSI B850M GAMING PLUS WIFI6E is a top-tier choice at an excellent price in BD.
Features
- Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors for elite gaming power
- Supports ultra-fast DDR5 memory up to 8200+ MHz for superior multitasking
- Integrated HDMI 2.1 & DisplayPort 1.4 with 4K@60Hz support for crystal-clear visuals
- Two high-speed M.2 slots supporting PCIe Gen5 and Gen4 SSDs for faster storage
- Onboard Wi-Fi 6E and Bluetooth 5.3 for wireless freedom and speed
- Realtek 2.5G LAN delivers blazing-fast, stable wired network performance
- Supports RAID 0/1/10 on SATA & RAID 0/1 on M.2 NVMe drives for data protection
- Multiple USB 10Gbps ports including rear Type-C for fast connectivity
- Premium audio experience with Realtek ALC897 7.1-Channel HD sound
- EZ Debug LED, TPM 2.0, and RGB headers for DIY-friendly system building
