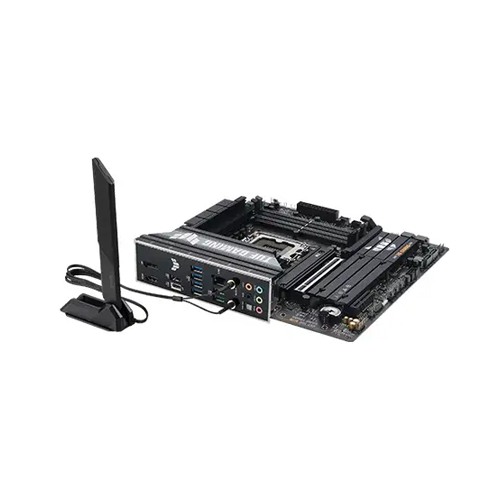

ASUS TUF GAMING B860M-PLUS WIFI Intel mATX Gaming Motherboard

Product ID: UT-11757
Customer rating: No reviews yet
Availability: In stock
Questions: 0 answered

1 / 3

All prices include VAT. 0% EMI from ৳2,733/mo on 29 banks.

Save ৳3,700 -10%৳32,800~~Was ৳36,500~~

Key features

Full specs

ChipsetIntel B860 Chipset for Core Ultra Processors (Series 2)
SocketIntel Socket LGA1851
Memory4 x DIMM slots, max. 256GB, DDR5
StorageSupports 3 x M.2 slots and 4 x SATA 6Gb/s ports

0% EMI on credit cards of 29 banks — ৳2,733/mo for 12 months.
Online price saves you ৳3,700 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandAsus330 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1851
Chipset	Intel B860
Form Factor	Micro ATX

RAM Type	DDR5
Maximum Memory	256GB
Memory Slots	4 Slots
Features	Wi-Fi, Bluetooth, M.2, RGB, USB Type-C, PCIe 5.0

Processor

Supported CPU	Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)

Expansion & Storage

Expansion Slots	Intel CoreTM Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x4 slot

Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Graphics & Display

Onboard Graphics	1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.

Networking

LAN	1 x Realtek 2.5Gb Ethernet TUF LANGuard

Wireless

Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Audio

Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers

Ports & Connectors

USB	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 ports (1x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A

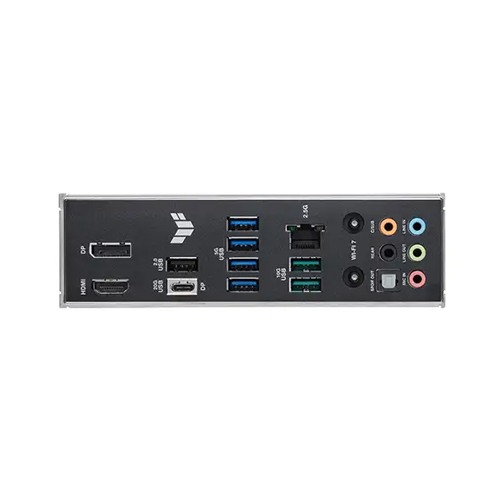

Rear Panel I/O	1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Internal Connectors

I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header

Other Features

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS

Special Features

ASUS TUF PROTECTION DIGI+ VRM (- Digital power design with DrMOS) ESD Guards TUF LANGuard Overvoltage Protection SafeSlot Stainless-Steel Back I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution M.2 heatsinks VRM heatsink design ASUS EZ DIY CPU Socket lever protector ProCool Pre-mounted I/O shield SafeDIMM AURA Sync Addressable Gen 2 headers Software Features: ASUS Exclusive Software Armoury Crate AURA Creator AURA Sync Fan Xpert 2+ Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash ASUS UEFI BIOS EZ Mode ASUS MyHotkey NPU Boost Manageability: WOL by PME, PXE

Operating System	Windows 11 (22H2 & later)
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 Rubber Packages 1 x TUF Gaming sticker 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide

Warranty

Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

ASUS TUF GAMING B860M-PLUS WIFI Intel mATX Gaming Motherboard

ASUS TUF GAMING B860M-PLUS WIFI is a durable and high-performance micro-ATX gaming motherboard built to support the latest Intel Core Ultra Processors (Series 2) with the LGA1851 socket. Powered by the Intel B860 chipset, it offers seamless performance, making it ideal for gaming and productivity.Designed for efficiency, this motherboard supports DDR5 memory up to 256GB, with speeds reaching 8800+ MT/s (OC). It features Dual Channel Memory Architecture and supports Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III) for optimized memory performance.For graphics, the TUF GAMING B860M-PLUS WIFI includes one PCIe 5.0 x16 slot for high-end GPUs, along with one PCIe 4.0 x4 slot for additional expansion. It offers DisplayPort, HDMI, and USB Type-C with DisplayPort support, ensuring excellent visual output with up to 4K@60Hz resolution.Storage flexibility is a key feature, with three M.2 slots supporting PCIe 5.0 and PCIe 4.0 for ultra-fast SSDs, along with four SATA 6Gb/s ports for additional storage. The Realtek 2.5Gb Ethernet and Wi-Fi 7 support ensure ultra-fast networking for gaming and streaming.Equipped with multiple USB ports, including USB 20Gbps Type-C, USB 10Gbps, and USB 5Gbps, it provides excellent connectivity. The Realtek 7.1 Surround Sound Audio Codec delivers immersive audio, enhanced by premium capacitors and audio shielding.The ASUS TUF PROTECTION suite ensures durability with features like DIGI+ VRM, SafeSlot, TUF LANGuard, and stainless-steel back I/O. The AI cooling and M.2 heatsinks help maintain optimal temperatures for stable performance.With a 3-year replacement warranty, the ASUS TUF GAMING B860M-PLUS WIFI is an excellent choice for gamers and PC builders looking for stability, performance, and durability in a compact mATX form factor.

Features

Efficient Performance for Modern Computing – Supports Intel Core Ultra Processors (Series 2) with LGA1851 socket.
Reliable Memory Support for Multitasking – Supports up to 256GB DDR5 RAM, reaching 8800+ MT/s (OC).
High-Quality Graphics and Display Options – PCIe 5.0 x16 slot for GPUs, DisplayPort, HDMI, and USB-C DisplayPort output.
Fast and Versatile Storage Options – Three M.2 slots (PCIe 5.0 & 4.0) and four SATA 6Gb/s ports.
Comprehensive Connectivity Ports – Features Wi-Fi 7, Realtek 2.5Gb Ethernet, USB 20Gbps Type-C, and multiple USB ports.
Enhanced Cooling and Durability – M.2 heatsinks, VRM cooling, AI Cooling, and TUF PROTECTION features.
Superior Audio Experience – Realtek 7.1 Surround Sound Audio Codec, premium capacitors, and S/PDIF output.
Built for Stability and Longevity – DIGI+ VRM, SafeSlot, TUF LANGuard, and military-grade components.

Buy ASUS TUF GAMING B860M-PLUS WIFI Intel mATX Gaming Motherboard from Ultra Technology

Get the ASUS TUF GAMING B860M-PLUS WIFI Intel mATX Gaming Motherboard from Ultra Technology for ৳32,800 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from Asus, explore more Asus Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
