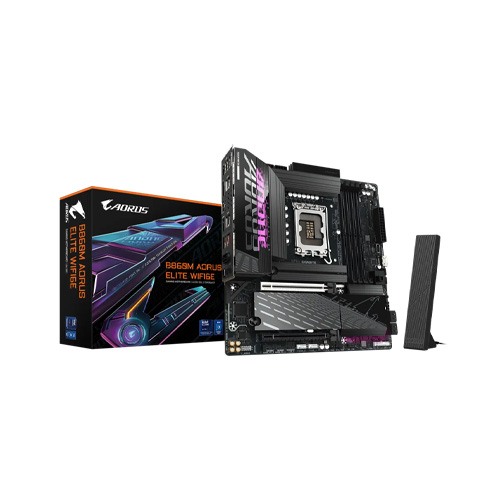

GIGABYTE B860M A ELITE WIFI6E Intel Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: B860M AORUS ELITE WIFI6E
Key Features
- Supports Intel® Core™ Ultra LGA1851 CPUs
- Up to DDR5 9200MHz memory support
- PCIe 5.0 x16 & triple M.2 slots
- Built-in Wi-Fi 6E & USB4 Type-C
| General Information | |
| Chipset Manufacturer | Intel® B860 Express Chipset |
| Audio | Realtek® Audio CODEC High Definition Audio, up to 7.1-channel Supports S/PDIF Out |
| BACK PANEL PORTS | 4 x USB 2.0 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A 1 x USB4® Type-C 1 x HDMI, 1 x DP 1 x RJ-45, 2 x antenna ports 2 x audio jacks + S/PDIF Out |
| BIOS FEATURES | 256 Mbit flash UEFI BIOS, ACPI 5.0, DMI 2.7 |
| CPU | LGA1851 socket: Supports Intel® Core™ Ultra Processors (See GIGABYTE's website for the latest support list) L3 cache varies with CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU) 1 x PCIe 4.0 x4 slot (Chipset) |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| H/W Monitoring | Voltage, temperature, fan speed & flow rate detection Fan fail warning, Fan speed control* |
| I/O Controller | iTE® I/O Controller Chip |
| INTERNAL I/O | 24-pin ATX & 2 x 8-pin 12V CPU/system fan headers, RGB headers 3 x M.2, 4 x SATA USB Type-C/3.2/2.0 headers TPM, Thunderbolt add-on, Clear CMOS, Q-Flash, HDMI |
| LAN | Realtek® 2.5GbE LAN chip (2.5/1/0.1 Gbps) |
| Memory | DDR5 9200(O.C) to 5600 MT/s support 4 x DDR5 DIMM sockets up to 256 GB Dual channel, ECC & non-ECC unbuffered DIMM support Supports XMP memory profiles (See GIGABYTE's website for full compatibility) |
| Onboard Graphics | Intel® HD Graphics support 1 x USB4® Type-C (3840x2160@144Hz, DP 2.1) 1 x DisplayPort (3840x2160@144Hz, DP 2.1) 1 x HDMI (4096x2160@60Hz, HDMI 2.1) 1 x Front HDMI (1920x1080@30Hz, HDMI 1.4) Supports quad-display |
| OS SUPPORT | Windows 11 64-bit |
| Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Storage | 1 x M.2 PCIe 5.0 x4/x2 (CPU) 2 x M.2 PCIe 4.0 x4/x2 (Chipset) 4 x SATA 6Gb/s connectors Supports RAID 0/1/5/10 |
| Unique Features | GIGABYTE Control Center (GCC) Support for Q-Flash, Q-Flash Plus, Smart Backup |
| USB Ports | 1 x USB4® Type-C (Back) 1 x USB 3.2 Gen 2 Type-C (Internal) 2 x USB 3.2 Gen 2 Type-A (Back) 2 x USB 3.2 Gen 1 (Internal) 4 x USB 3.2 Gen 1 (Back) 8 x USB 2.0 (4 Back, 4 Internal) |
| Wireless | Intel® Wi-Fi 6E AX211 or Realtek® RTL8852CE Dual band 2.4/5/6 GHz, Bluetooth 5.3 Supports 11ax 160MHz |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE B860M A ELITE WIFI6E Intel Motherboard
Unlock the full potential of Intel® Core™ Ultra processors with the GIGABYTE B860M A ELITE WIFI6E Intel Motherboard, designed for next-gen performance, superior connectivity, and reliable multitasking. This Micro ATX board supports the latest LGA1851 socket and is powered by the Intel® B860 Express chipset, offering seamless compatibility and future-ready architecture.With robust DDR5 memory support up to 256GB and speeds up to 9200MHz (OC), it ensures blazing-fast data access and enhanced responsiveness. Integrated Intel® HD Graphics allows quad-display outputs through USB4, HDMI 2.1, DisplayPort 2.1, and front HDMI—perfect for productivity and entertainment alike.Gamers and creators will appreciate the PCIe 5.0 x16 slot and three M.2 NVMe slots for ultra-fast storage and GPU performance. Stay connected with 2.5GbE LAN and advanced Wi-Fi 6E (Intel AX211/RTL8852CE) supporting 2.4GHz, 5GHz, and 6GHz bands, plus Bluetooth 5.3 for wireless peripherals.Comprehensive cooling options, Smart Backup, Q-Flash Plus, and GIGABYTE Control Center enhance stability, performance tuning, and ease of use. Realtek® 7.1 HD Audio with S/PDIF Out delivers crystal-clear sound for immersive experiences.Whether you’re building a powerful desktop for gaming, content creation, or multitasking, the GIGABYTE B860M A ELITE WIFI6E is a smart choice for professionals and enthusiasts. Available now in Bangladesh with 3 years warranty.
Features
- Supports Intel® Core™ Ultra LGA1851 CPUs for next-gen performance
- Up to DDR5 9200MHz OC RAM, 256GB total memory capacity
- Integrated graphics with quad-display, HDMI 2.1, DisplayPort 2.1
- PCIe 5.0 x16 slot for next-gen GPUs or NVMe SSDs
- Three M.2 slots (PCIe Gen5 & Gen4) for high-speed storage
- Realtek 2.5GbE LAN + Wi-Fi 6E with Bluetooth 5.3
- High-definition 7.1-channel audio with S/PDIF Out
- Advanced thermal design with multiple fan/water headers
- USB4 Type-C, USB 3.2 Gen2/Gen1, and SATA 6Gb/s supported
- Smart Backup, Q-Flash Plus & GCC software for easy control
