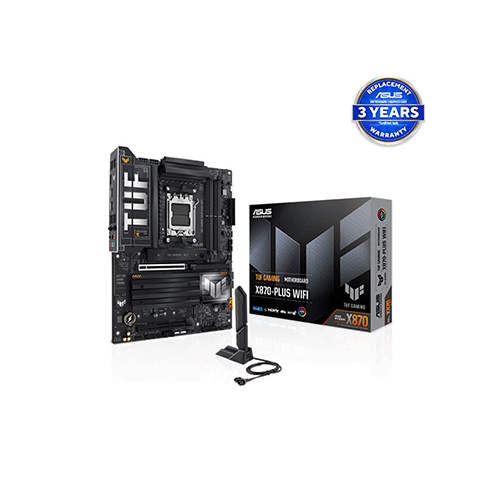

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard
- Stock: In Stock
- Brand: Asus
- Model: TUF GAMING X870-PLUS WIFI
Key Features
- Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
- Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
- Memory: 4 x DIMM slots, max. 192GB, DDR5
- Storage: Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
| General Information | |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick Start guide |
| Back Panel I/O Ports | 2 x USB4 (40Gbps) (2 x USB Type-C) ports 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for the CPU support list. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)** AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Graphic | 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Manageability | WOL by PME, PXE |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Operating System | Windows 11 |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A - Compatible with PD3.0 |
| Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
| USB | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. |
| Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| Main Features | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Chipset | AMD X870 Chipset |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Connector & ports | |
| Audio Jack | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Warranty Information | |
| Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard
The ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard is a high-performance, durable, and feature-rich solution for gamers and PC enthusiasts. Designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors, it comes with the AM5 socket and the AMD X870 chipset, delivering exceptional processing power and performance for gaming, content creation, and multitasking. This motherboard is optimized for DDR5 memory with four DIMM slots, supporting up to 192GB of RAM and speeds exceeding 8000 MT/s when overclocked. ASUS Enhanced Memory Profiles (AEMP) and AMD Extended Profiles for Overclocking (EXPO) ensure stable and efficient memory performance, giving users the ability to fine-tune their systems for maximum speed. For storage and expansion, the ASUS TUF GAMING X870-PLUS WIFI includes four M.2 slots and two SATA 6Gb/s ports, supporting PCIe 5.0 and PCIe 4.0 for ultra-fast data transfer and seamless storage performance. Gamers and professionals can take advantage of the PCIe 5.0 x16 slot for high-end graphics cards, ensuring optimal frame rates and graphics fidelity in gaming and heavy workloads. Networking capabilities are bolstered by Wi-Fi 7 technology, offering speeds up to 2.9Gbps, and a 2.5Gbps Realtek Ethernet port for ultra-fast, low-latency wired connections. The motherboard also includes a comprehensive range of USB ports, including USB4 (40Gbps) Type-C, USB 10Gbps, and USB 5Gbps ports, ensuring ample connectivity for modern peripherals. Built for durability, the TUF series features military-grade components, enhanced power solutions, and comprehensive cooling, ensuring reliability even under intense workloads. ASUS Aura Sync provides customizable RGB lighting, adding a touch of personalization. With a 3-year warranty, the ASUS TUF GAMING X870-PLUS WIFI is a robust and future-proof choice for gamers and PC builders.
