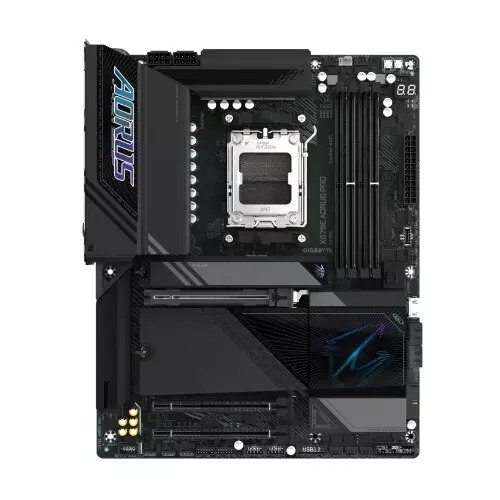

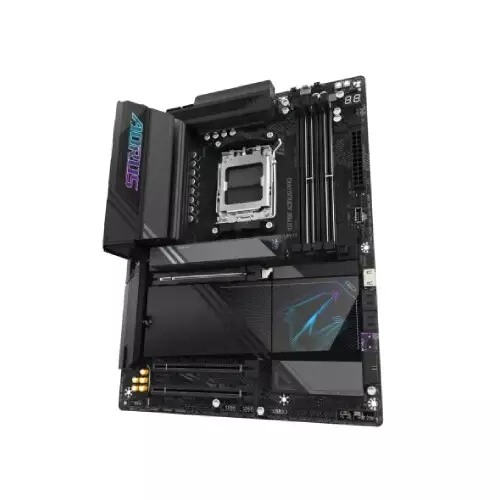

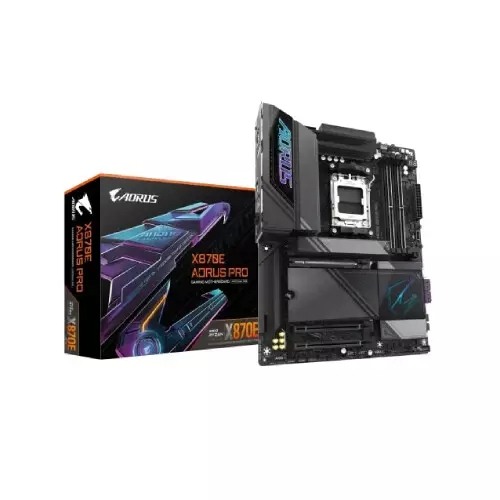

GIGABYTE X870E AORUS PRO DDR5 AM5 ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: X870E AORUS PRO
Key Features
- Supported CPU: AMD Socket AM5
- Form Factor: ATX Form Factor
- Memory Max.: supporting up to 256 GB
- Ram Type: DDR5
| General Information | |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel |

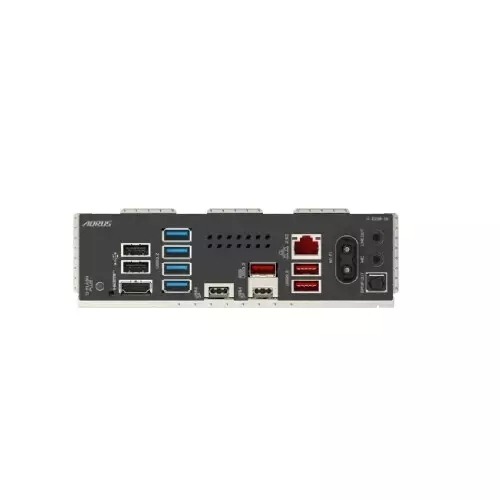

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 2 x USB4® USB Type-C® port (DisplayPort (Note)) 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 2 x antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x audio jacks |
| Bios Information | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Chipset Model | AMD X870E |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Expansion Slots | 1x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x HDMI port (Note) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller: - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version |
| Operating System | ATX Form Factor; 30.5cm x 24.4cm |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard |
| Warranty Information | |
| Warranty | 3 Years |
GIGABYTE X870E AORUS PRO Motherboard
GIGABYTE X870E AORUS PRO is a premium ATX motherboard built for next-generation AMD Ryzen systems, combining extreme performance, cutting-edge connectivity, and rock-solid reliability for gamers, creators, and power users.
CPU and Chipset Support
Powered by the AMD X870E chipset, this motherboard supports AMD Ryzen™ 7000, 8000, and 9000 Series processors on the AM5 socket. It is designed to fully unleash high-core CPUs with a robust power delivery system, dual 8-pin EPS connectors, and advanced thermal monitoring, ensuring stable operation even under heavy workloads.
Memory Performance
The board features 4 DDR5 DIMM slots supporting up to 256GB of memory with speeds up to DDR5 8200MHz (OC). With dual-channel architecture and support for AMD EXPO™ and Intel XMP profiles, users can easily achieve high memory performance for gaming, rendering, and multitasking.
Graphics and Display Output
Integrated AMD Radeon™ Graphics support is enhanced with dual USB4 Type-C ports offering DisplayPort output up to 4K@240Hz. It also includes HDMI 2.1 support for up to 4K@60Hz, HDR compatibility, and HDCP 2.3, making it ideal for high-resolution displays and modern entertainment setups.
Expansion Slots and Storage
For graphics and expansion, the motherboard provides a PCIe 5.0 x16 slot for Ryzen 9000/7000 CPUs, along with additional PCIe 4.0 and PCIe 3.0 slots via the chipset. Storage options are extensive with four M.2 slots, including PCIe 5.0 x4 support for ultra-fast NVMe SSDs, plus four SATA 6Gb/s ports with RAID 0/1/5/10 support.
Connectivity and Networking
Connectivity is a major highlight, featuring Qualcomm Wi-Fi 7 with Bluetooth 5.4 for ultra-fast wireless speeds and low latency. A Realtek 2.5GbE LAN ensures stable wired networking. USB options are abundant, including USB4, USB 3.2 Gen 2x2 Type-C, multiple Gen 2 and Gen 1 ports, and legacy USB 2.0 support.
Audio and Software Features
High-definition audio is handled by the Realtek ALC1220 codec with S/PDIF out and DSD audio support for immersive sound. GIGABYTE exclusive features like Q-Flash Plus, Smart Backup, and GIGABYTE Control Center simplify system management and BIOS updates.
Form Factor and OS Support
Built in the ATX form factor (30.5cm x 24.4cm), the motherboard supports Windows 11 64-bit, ensuring compatibility with the latest software and hardware technologies.
Buy Now – GIGABYTE X870E AORUS PRO from Ultra Technology
Upgrade your PC with the GIGABYTE X870E AORUS PRO DDR5 AM5 ATX Motherboard from Ultra Technology and experience next-level speed, stability, and future-proof performance.
