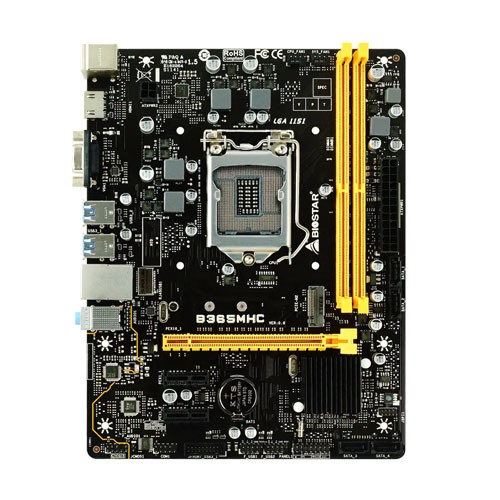

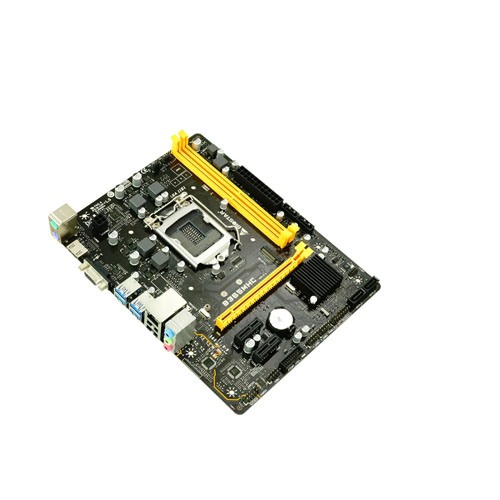

Biostar B365MHC 8th And 9th Gen Micro ATX Motherboard

Biostar B365MHC 8th And 9th Gen Micro ATX Motherboard

The Biostar B365MHC Micro ATX Motherboard is a reliable and feature-packed solution for 8th and 9th generation Intel Core, Pentium, and Celeron processors. Designed with the Intel B365 chipset, this motherboard offers robust performance and support for essential components to meet the demands of modern computing. Equipped with a Socket 1151, the motherboard supports processors with a maximum Thermal Design Power (TDP) of 95W, ensuring compatibility with a wide range of Intel CPUs. The dual-channel DDR4 memory slots support speeds ranging from 1866MHz to 2666MHz, with a maximum capacity of 32GB, providing ample memory for multitasking and demanding applications. Integrated video support varies depending on the CPU model, with compatibility for DirectX 12 and HDCP for enhanced graphical performance. The motherboard also features multiple storage options, including four SATA III connectors and an M.2 slot supporting both PCIe and SATA SSDs, as well as Intel Optane Technology for accelerated storage performance. Networking capabilities are provided by the Realtek RTL8111H Gigabit Ethernet controller, ensuring fast and reliable connectivity. The Realtek ALC887 8-channel HD audio codec delivers high-quality audio output for an immersive listening experience. The Biostar B365MHC offers extensive connectivity options, including USB 3.1 Gen1 and USB 2.0 ports, HDMI, VGA, and audio jacks, both on the rear I/O and via internal headers. Expansion slots include one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots, providing flexibility for adding additional components. With a comprehensive set of internal headers for USB, SATA, audio, and power connectors, installation and configuration are made easy. The Micro ATX form factor ensures compatibility with a wide range of PC cases while offering a compact footprint. Backed by a 3-year warranty and bundled with essential accessories including SATA cables, an I/O shield, DVD driver, and quick guide, the Biostar B365MHC Micro ATX Motherboard offers reliability, performance, and expandability for your computing needs.

Features:

• Chipset: Powered by the Intel B365 chipset, ensuring reliable performance and compatibility with 8th and 9th generation Intel Core, Pentium, and Celeron processors.
• CPU Support: Socket 1151 supports 9th and 8th gen Intel Core processors with a maximum Thermal Design Power (TDP) of 95W, delivering efficient computing power for various tasks.
• Memory Support: Dual-channel DDR4 memory support with speeds ranging from 1866MHz to 2666MHz, offering up to 32GB of maximum memory capacity for smooth multitasking and application performance.
• Integrated Video: Supports DirectX 12 and HDCP, providing enhanced graphical capabilities for immersive gaming and multimedia experiences, varying by CPU model.
• Storage: Equipped with four SATA III connectors and one M.2 32Gb/s connector supporting PCIe and SATA III SSDs, as well as Intel Optane Technology, ensuring high-speed data transfer and storage flexibility.
• LAN and Audio: Features Realtek RTL8111H Gigabit Ethernet controller for fast and reliable network connectivity, along with Realtek ALC887 8-channel HD audio codec for high-quality audio output.
• USB and Expansion Slots: Provides ample connectivity options with six USB 3.1 Gen1 ports, six USB 2.0 ports, one PCI-E 3.0 x16 slot, and two PCI-E 3.0 x1 slots, accommodating various peripherals and expansion cards.

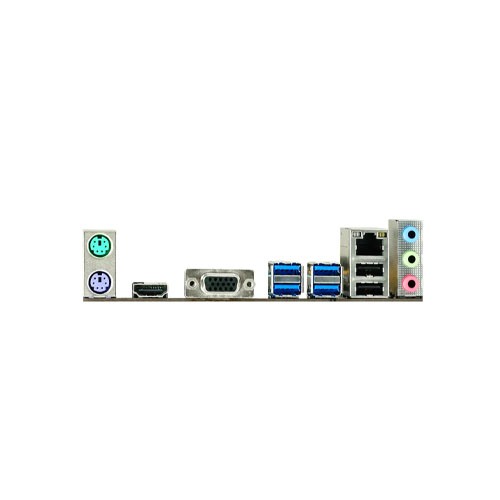

• Rear I/O and Internal Connectors: Includes a range of rear I/O ports such as HDMI, VGA, USB, LAN, and audio jacks, along with internal headers for USB, SATA, front audio, and front panel connections.
• Form Factor and OS Support: Micro ATX form factor with dimensions of 22.8cm x 17.7 cm, compatible with Windows 10 (64-bit), ensuring easy integration into compact PC builds.

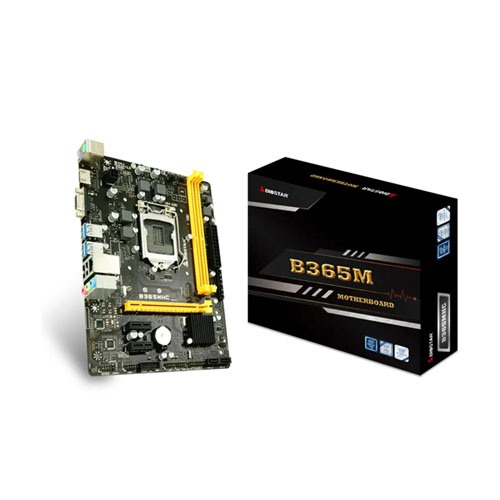

• Accessories and Warranty: Comes with essential accessories including SATA cables, I/O shield, DVD driver, and quick guide, backed by a 3-year warranty for added peace of mind.
