Biostar B560MH-E 2.0 11th Gen Motherboard

Biostar B560MH-E 2.0 11th Gen Motherboard
Biostar B560MH-E 2.0 11th Gen Motherboard
Biostar B560MH-E 2.0 11th Gen Motherboard
Biostar B560MH-E 2.0 11th Gen Motherboard
-6 %
Biostar B560MH-E 2.0 11th Gen Motherboard
Biostar B560MH-E 2.0 11th Gen Motherboard
Biostar B560MH-E 2.0 11th Gen Motherboard
Biostar B560MH-E 2.0 11th Gen Motherboard
Biostar B560MH-E 2.0 11th Gen Motherboard

TBA

  • Stock: Out Of Stock
  • Brand: BIOSTAR
  • Model: Model

Key Features

    • Intel B560 single chip architecture
    • Supports 2-DIMM DDR4 64 GB Memory
    • Supports PCIe 4.0
    • Supports PCIe M.2 3.0 (32Gb/s)
    • Supports 10th/11th Generation Intel Core™ Processor
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Accessories 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x WiFi antenna accessories
AUDIO CODEC Realtek ALC897 7.1 Channels, High Definition Audio
BUNDLE SOFTWARE 4 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket: Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header
CPU SUPPORT Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Dimension Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )
EXPANSION SLOT 1 x PCIe 3.0 x1 Slot 1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode)
Features BIO-FLASHER BullGuard
H/W Monitoring CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring
INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP Supports HDMI 1.4 version
INTERNAL I/O 4 x SArt Header
LAN Intel I219V 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability
Memory Supports Dual Channel DDR4 3333+(OC)/ 3200/ 2933/ 2666/ 2400/ 2133/ 1866 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB of Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module * Please refer to www.biostar.com.tw for the Memory support list.
OS SUPPORT Supports Windows 10 (64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.

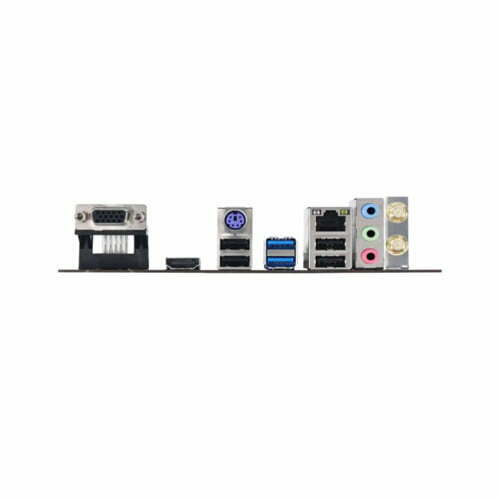

REAR I/O 2 x WIFI Antenna Ports 1 x PS/2 Keyboard / Mouse 1 x HDMI Port 1 x VGA Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Port 1 x LAN port 3 x Audio Jack
Storage Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports 4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD
USB 4 x USB 3.2(Gen1) ports (2 on the rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on the rear I/Os and 4 via internal headers)
Main Features
Chipset Intel B560

Biostar B560MH-E 2.0 11th Gen Motherboard

the Biostar B560MH-E 2.0 11th Gen Motherboard is perfect for you! This motherboard supports 10th/11th Generation Intel Core™ Processors and comes with a number of features and benefits that will take your computing experience to the next level. Some of the features of this motherboard include support for 2-DIMM DDR4-3333+(OC)/3200/2933/2666/2400/2133/1866 up to 64 GB Memory, support for PCIe 4.0, and support for PCIe M.2 3.0 (32Gb/s). With these features, you'll be able to enjoy a stable power supply, excellent precision and performance, and reliable connectivity. In addition, the Biostar B560MH-E 2.0 11th Gen Motherboard comes with a number of benefits that will make your computing experience more enjoyable. For example, the support for the WiFi 6 module (No WiFi 6 card included) allows you to enjoy a fast and stable connection. Plus, the Super Hyper PWM delivers stable power with 100% fixed voltage, ensuring that all of your critical components are protected. With the Intel® B560 chipset and the 10th/11th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel B560 chipset provides you with the power and performance you need. The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware. Unlike ordinary LAN solution, Intel® GbE LAN offers fewer CPU resource consumption and more bandwidth stability. Thus, Intel® LAN is the best choice for performance seekers. PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s. PCIe 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 2.0, while preserving compatibility with software and mechanical interfaces. SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II. The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate. PCIe 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces. USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products. Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly. BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility. With A.I FAN users can ensure that their gaming PC can maintain its performance while staying cool. According to different cooling needs and usage scenarios, users can control speed modes. Allows users to have more customizability of fan modes and automatically detects different temperatures to make fan operate at defined speed for optimal cooling performance. Furthermore, A.I FAN support both PWM and DC voltage fans for more cooling options.
