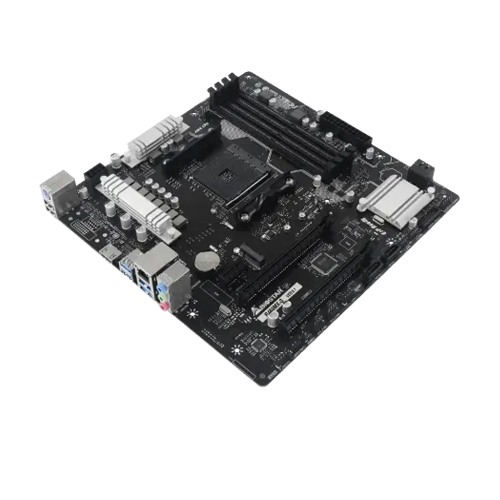

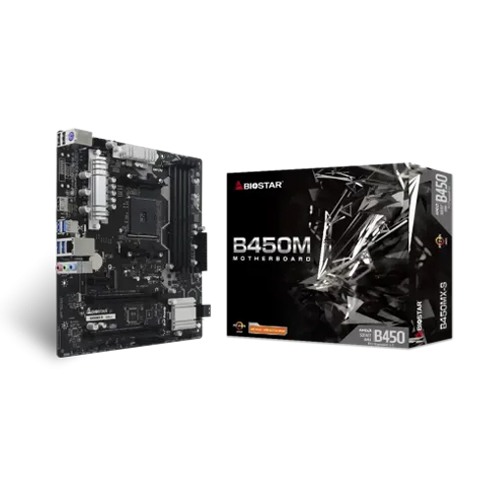

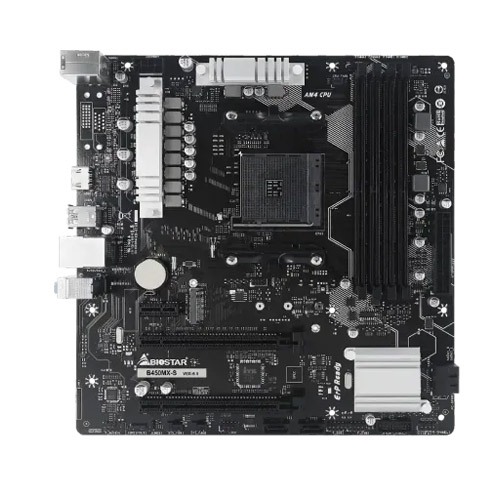

Biostar B450MX-S DDR4 AMD Motherboard

Biostar B450MX-S DDR4 AMD Motherboard

Biostar B450MX-S DDR4 AMD Motherboard stands out as a reliable and feature-packed option for enthusiasts and gamers seeking a powerful foundation for their AMD Ryzen processors. This Micro ATX motherboard, with a dimension of 24.4cm x 24.4cm, boasts a Socket AM4 that supports a range of AMD Ryzen APU and Ryzen CPUs, ensuring compatibility with a variety of processors for optimal performance. Equipped with the AMD B450 chipset, the motherboard offers a stable and efficient platform for computing tasks. The expansion slots include a PCIe 3.0 x16 slot that supports PCIe 3.0 x16 mode with AMD Ryzen processors and PCIe 3.0 x8 mode with AMD Ryzen with Radeon Vega Graphics processors. Additionally, there's a PCIe 2.0 x16 slot (x4 mode) and a PCIe 2.0 x1 slot for further expansion capabilities. The motherboard supports DDR4 memory with four DIMM slots, accommodating up to 128GB of RAM. It features dual-channel DDR4 support at various speeds, including overclocking options for enhanced performance. Graphics support on the Biostar B450MX-S is dynamic, depending on the CPU model used. It supports DirectX 12 and HDCP, providing a seamless visual experience for gaming and multimedia applications. The HDMI port adds flexibility for display connectivity. In terms of connectivity, the motherboard offers a range of ports, including 4 USB 3.2 (Gen1) ports, 2 USB 2.0 ports, and a Realtek RTL8111H LAN port supporting 10/100/1000 Mb/s auto negotiation. Storage options include 4 SATA III connectors (6Gb/s) with support for AHCI and RAID 0, 1, 10, as well as an M.2 socket supporting various SSD modules. The Biostar B450MX-S addresses audio needs with the ALC887/897 chipset, delivering 7.1 channels of high-definition audio and Hi-Fi capabilities for an immersive sound experience. Internal I/O ports include SATA III connectors, USB headers, power connectors, fan connectors, and various headers for seamless integration with your system. The motherboard comes bundled with BullGuard software for added security. Backed by a 3-year manufacturing warranty, the Biostar B450MX-S DDR4 AMD Motherboard combines performance, reliability, and a feature-rich design, making it an ideal choice for users looking to build a powerful and stable AMD-based system.

Features

• Processor Compatibility: The Biostar B450MX-S DDR4 AMD Motherboard supports a wide range of AMD Ryzen APU and Ryzen CPU processors, ensuring versatility and compatibility with different computing needs.
• Chipset Performance: Powered by the AMD B450 chipset, this motherboard delivers stable and efficient performance, making it an ideal choice for gaming, content creation, and everyday computing tasks.
• Compact Form Factor: With a Micro ATX form factor measuring 24.4cm x 24.4cm, the motherboard is compact yet feature-rich, making it suitable for smaller system builds without compromising on performance.
• Memory Support: The motherboard features four DIMM slots supporting DDR4 memory, providing a maximum memory capacity of up to 128GB. It supports various DDR4 speeds, including overclocking options, for enhanced system responsiveness.
• Graphics Flexibility: Offering dynamic graphics support based on the CPU model used, the motherboard supports DirectX 12 and HDCP, ensuring a smooth and immersive visual experience for gaming and multimedia applications.
• Expansion Slots: The Biostar B450MX-S provides expansion options with one PCIe 3.0 x16 slot supporting AMD Ryzen processors and Ryzen with Radeon Vega Graphics processors. Additionally, there is a PCIe 2.0 x16 slot (x4 mode) and a PCIe 2.0 x1 slot for additional connectivity.
• Storage Options: It includes four SATA III connectors (6Gb/s) with support for AHCI and RAID 0, 1, 10, as well as an M.2 socket that supports various SSD modules. The M.2 socket supports PCIe 3.0 x4 (32Gb/s) for high-speed NVMe and AHCI SSDs, along with SATA III (6Gb/s) SSDs.

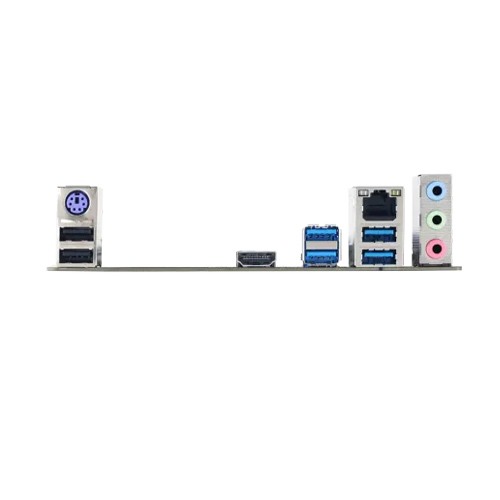

• Connectivity Ports: The motherboard features a range of connectivity options, including 4 USB 3.2 (Gen1) ports and 2 USB 2.0 ports for external devices. The Realtek RTL8111H LAN port provides reliable networking with support for 10/100/1000 Mb/s auto negotiation and half/full duplex capability.
• High-Definition Audio: Equipped with the ALC887/897 chipset, the motherboard delivers 7.1 channels of high-definition audio and Hi-Fi capabilities through three audio jacks, providing an immersive sound experience for multimedia applications.
• Internal I/O Ports: The motherboard offers convenient internal I/O ports, including SATA III connectors, USB headers, power connectors, fan connectors, and various headers for seamless integration and customization within the system.
• Bundled Software: The motherboard comes bundled with BullGuard software, enhancing system security and providing additional peace of mind for users.
• Warranty: With a 3-year manufacturing warranty, the Biostar B450MX-S DDR4 AMD Motherboard ensures long-term reliability and support for users building systems for various applications.
