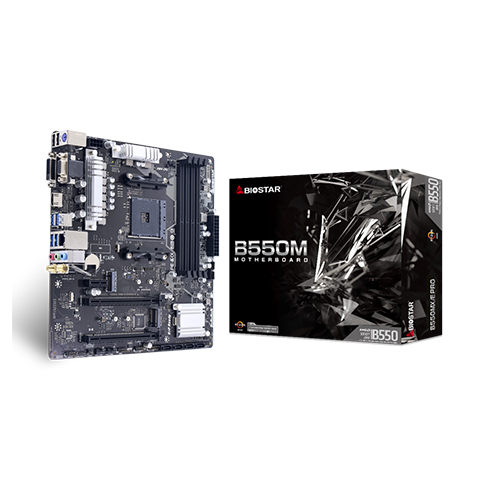

BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard

BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard

The BIOSTAR B550MX/E PRO is a high-performance micro ATX motherboard designed for AMD AM4 processors. It features the AMD B550 chipset, which offers excellent compatibility and performance for gaming, content creation, and other demanding tasks. With its compact form factor and powerful features, this motherboard is suitable for both compact gaming rigs and smaller workstation setups.

One of the key highlights of the B550MX/E PRO is its memory support. It can accommodate up to 128GB of DDR4 memory in dual-channel configuration, allowing for fast and efficient data processing. The motherboard supports a wide range of memory speeds, including overclocked frequencies, which makes it ideal for users who want to push the limits of their system's performance.

In terms of connectivity, the B550MX/E PRO offers a variety of ports and connectors to cater to different needs. It includes HDMI and VGA ports for display connectivity, allowing users to connect multiple monitors for a versatile workstation or immersive gaming experience. The motherboard also provides multiple USB ports, including USB 3.2 and USB 2.0 headers, enabling high-speed data transfer and support for various peripherals.

Storage options on this motherboard are abundant, with two M.2 sockets and four SATA III connectors. The M.2 sockets support different lengths of SSD modules, offering PCIe 4.0 and 3.0 support for blazing-fast storage performance. The SATA III connectors provide additional flexibility and support for RAID configurations.

The B550MX/E PRO comes equipped with the Realtek ALC897 audio chipset, delivering high-definition audio and supporting 7.1 channels. This ensures immersive sound quality for gaming, movies, and other multimedia experiences.

Furthermore, the motherboard offers expansion options with its PCIe slots. It features a PCIe 4.0 x16 slot for high-performance graphics cards, which can be configured in various modes depending on the processor used. Additionally, it provides a PCIe 3.0 x16 slot and a PCIe 3.0 x1 slot, offering flexibility for adding expansion cards such as networking adapters or sound cards.

Features

• AMD B550 Chipset: The motherboard is built on the AMD B550 chipset, offering excellent compatibility and performance for AMD AM4 processors.
• Memory Support: It supports up to 128GB of DDR4 memory in dual-channel configuration, providing ample capacity for multitasking, gaming, and content creation. It supports various memory speeds, including overclocked frequencies, for optimized performance.
• Expansion Slots: The motherboard features multiple expansion slots, including a PCIe 4.0 x16 slot (x16 or x4/x4/x4/x4 mode) for high-performance graphics cards, a PCIe 3.0 x16 slot (x16 or x8/x4/x4 mode), a PCIe 3.0 x16 slot (x4 mode), and a PCIe 3.0 x1 slot. These slots allow for the addition of various expansion cards such as GPUs, networking cards, and sound cards.
• Storage Options: It offers extensive storage options with support for two M.2 sockets and four SATA III (6Gb/s) ports. The M.2 sockets support both PCIe 4.0 x4 (64Gb/s)/3.0 x4 (32Gb/s) and SATA III (6.0Gb/s) SSDs, while the SATA III ports support AHCI and RAID 0, 1, 10 configurations.

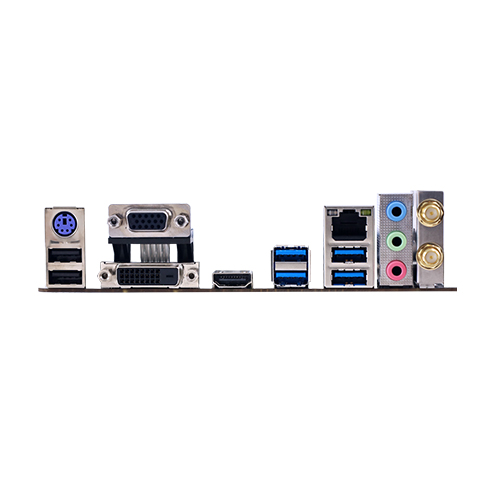

• Connectivity: The motherboard provides various connectivity options, including HDMI and VGA ports for display connectivity, four USB 3.2 (Gen1) ports, and two USB 2.0 ports. It also has internal headers for additional USB 3.2 (Gen1) and USB 2.0 ports. The inclusion of a LAN port (Realtek RTL8111H) ensures reliable wired network connectivity.
• Audio: It features the Realtek ALC897 audio chipset, delivering 7.1 channels of high-definition audio. This provides immersive sound quality for gaming, movies, and other multimedia experiences. It also includes a front panel audio header and an internal stereo speaker header.
• Special Features: The motherboard comes with special features like A.I FAN, which provides smart fan control for optimal cooling performance. It also supports PCIe M.2 4.0 for faster storage performance.
• Wireless Communication: The motherboard supports a WiFi 6 module, enabling high-speed wireless connectivity and improved network performance.
• Bundled Software: It comes bundled with BullGuard software, offering additional security features and protection for your system.

Overall, the BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard combines a compact form factor, powerful performance, and extensive connectivity options to cater to the needs of gamers, content creators, and workstation users. Its support for high-speed memory, versatile storage options, and expansion slots make it a reliable and efficient foundation for building a high-performance PC.
