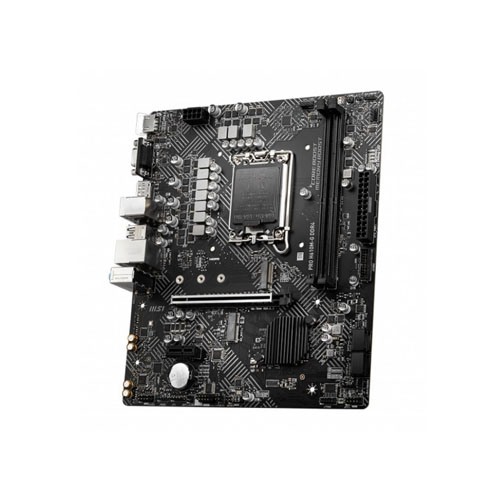

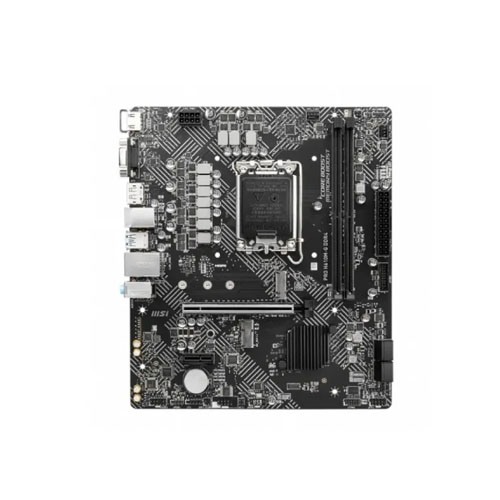

MSI PRO H610M-G DDR5 mATX Motherboard
- Stock: In Stock
- Brand: MSI
- Model: PRO H610M-G
Key Features
- Supports 14th/ 13th/ 12th Gen, Intel Pentium Gold & Celeron Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600 (MAX) MHz
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
- Features: Realtek ALC897 Codec
| General Information | |
| Type | DDR5 |
| Audio Feature | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Display Port (s) | 1x DisplayPort |
| Graphic | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| M.2 Socket | 1x M.2 |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
| Slots | 2x DDR5 memory slots |
| Special Features | LED FEATURE: 4x EZ Debug LED |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| VGA (s) | 1x VGA port |
| Main Features | |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX 211mmx243.84mm |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Memory Specifications | |
| Maximum Memory | Support up to 96GB |
| Supported Memory | Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Connector & ports | |
| HDMI | 1x HDMI 2.1 |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 2x USB 2.0 ports |
| LAN Port (s) | Intel I219V 1Gbps LAN controller |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB (s) | 4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| Warranty Information | |
| Warranty | 3 years |
MSI PRO H610M-G DDR5 mATX Motherboard
MSI PRO H610M-G DDR5 mATX Motherboard is a powerful and reliable motherboard designed to meet the demands of modern computing. Featuring the latest DDR5 memory technology, this motherboard provides enhanced speed and efficiency for seamless multitasking and rapid data transfer. The Micro ATX form factor ensures compatibility with a wide range of computer cases while offering a compact design for space-conscious builds. Equipped with Intel's H610 chipset, the motherboard supports 10th and 11th Gen Intel Core processors, delivering impressive performance for gaming, content creation, and everyday computing tasks. The motherboard boasts a robust power delivery system, ensuring stable power to the CPU for optimal performance and longevity. Additionally, it includes PCIe 4.0 support for high-speed data transfer and expansion capabilities. The PRO H610M-G features a comprehensive set of connectivity options, including USB 3.2 Gen 1 ports, HDMI, and a range of audio connectors for an immersive audio experience. The motherboard also incorporates MSI's advanced cooling solutions to keep temperatures in check during intense computing sessions. With a user-friendly BIOS interface and durable build quality, the MSI PRO H610M-G DDR5 mATX Motherboard is an excellent choice for users seeking a reliable foundation for their desktop systems.
MSI PRO H610M-G Motherboard Price in BD
Discover the ultimate cost-effective solutions for your office needs with the best price list in Bangladesh. Our curated selection of office essentials ensures that you can equip your workspace with top-quality products without breaking the bank. From ergonomic office furniture to productivity-boosting accessories, our budget-friendly offerings cater to small startups and established enterprises alike. Enhance efficiency and foster a conducive work environment while adhering to your budget constraints with our comprehensive array of competitively priced office supplies.
Features
- DDR5 Memory Support: The MSI PRO H610M-G motherboard is equipped with DDR5 memory support, harnessing the latest in memory technology for improved speed and efficiency in data processing.
- Intel H610 Chipset Compatibility: Designed to support 10th and 11th Gen Intel Core processors, the motherboard features the Intel H610 chipset, ensuring compatibility with a wide range of CPUs for diverse computing needs.
- Micro ATX Form Factor: With a Micro ATX form factor, this motherboard is suitable for compact builds, offering versatility and compatibility with smaller computer cases while providing essential features for a powerful computing experience.
- PCIe 4.0 Support: The motherboard incorporates PCIe 4.0 support, allowing for high-speed data transfer and accommodating the latest PCIe 4.0-enabled components for enhanced system performance.
- Comprehensive Connectivity: Boasting USB 3.2 Gen 1 ports, HDMI output, and various audio connectors, the PRO H610M-G provides a wide array of connectivity options, facilitating seamless integration with peripherals, displays, and audio devices.
- Robust Power Delivery System: The motherboard features a robust power delivery system to ensure stable and reliable power supply to the CPU, contributing to optimal performance and longevity of the system.
- Advanced Cooling Solutions: MSI has integrated advanced cooling solutions into the motherboard to manage temperatures effectively, providing enhanced thermal performance during demanding computing tasks and prolonged usage.
- User-Friendly BIOS Interface: The motherboard comes with a user-friendly BIOS interface, making it easy for users to customize settings and optimize performance according to their preferences.
- Durable Build Quality: Built with durability in mind, the MSI PRO H610M-G motherboard offers a reliable foundation for desktop systems, providing a sturdy and long-lasting platform for computing needs.
- PCIe Expansion Slots: The motherboard includes PCIe expansion slots, allowing users to customize their systems with additional components such as graphics cards, storage, and networking cards for enhanced functionality.
