Colorful BATTLE-AX B650M-E PRO V14 AM5 M-ATX Motherboard
- Stock: In Stock
- Brand: Colorful
- Model: BATTLE-AX B650M-E PRO V14
Key Features
- Supported CPU: AMD Ryzen 7000/8000/9000 series processors
- Supported Memory: 2 DDR5 slots, up to DDR5-7600 (OC), Max. 96GB
- Storage & Expansion: 2 M.2 SSD slots, 4 SATA 6Gb/s, PCIe 4.0 x16/x4 slots
- Network & Audio: RTL8111K Gigabit LAN, Realtek ALC897 5.1 Channel Audi
| General Information | |
| Audio | Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 4.0 x4 slot |
| LAN | RTL8111K Gigabit Ethernet Card |
| Number of Memory Slots | 2 |
| RAID | 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices |
| USB Ports | -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A |
| Main Features | |
| BIOS | 256M UEFI, support multiple languages |
| Chipset | AMD B650 |
| Form Factor | M-ATX 244mm x 235 mm |
| Supported CPU | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard |
| Memory Specifications | |
| Maximum Memory | 96 GB |
| Supported Memory | - Support up to 96 GB of memory - Can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) - Support DDR5-7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Support Extreme Memory Profile (XMP) memory technology - Support Extended Profiles for Overclocking (EXPO) memory technology |
| Connector & ports | |
| Audio Jack | -3×Audio interfaces (audio input/output/microphone) -1×Front audio pin |
| HDMI | -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution |

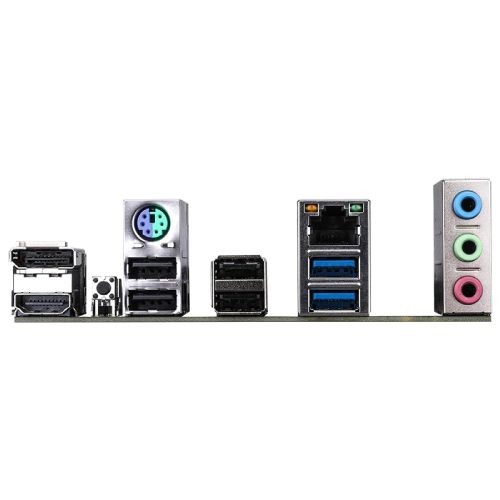

| Internal I/O Ports | Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×DP 1.2 interface, supporting up to 4K 60Hz resolution -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×PS/2 interface -1×Gigabit network interface -1×BIOS update button -3×Audio interfaces (audio input/output/microphone) On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×CPU fan pin -2×System fan pins -1×Water cooling pump pin -2×5V 3-pin ARGB pins -1×Front audio pin -1×Front panel pin -1×COM port pin -1×Speaker pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, and RAID 10 disk arrays using SATA or M.2 NVMe hard drive devices - M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_2 slot: Supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
| Warranty Information | |
| Warranty | 3 years |
Colorful BATTLE-AX B650M-E PRO V14 AM5 M-ATX Motherboard
The Colorful BATTLE-AX B650M-E PRO V14 Motherboard is a high-performance AMD B650 chipset M-ATX motherboard designed for gamers, content creators, and PC enthusiasts. Supporting AMD Ryzen 7000, 8000, and 9000 series CPUs with AM5 socket, this Colorful BATTLE-AX B650M-E PRO V14 AM5 motherboard ensures fast processing, smooth multitasking, and reliable system performance. Featuring 2 DDR5 memory slots supporting up to 96GB RAM at speeds up to DDR5-7600 (OC) and compatibility with XMP and EXPO memory profiles, this motherboard provides optimized overclocking and high-speed data processing for demanding applications and gaming setups.
High-Performance Features and Storage Options
Equipped with 2 M.2 slots supporting PCIe 4.0 x4 NVMe SSDs and 4 SATA 6Gb/s connectors, the Colorful BATTLE-AX B650M-E PRO V14 motherboard enables fast storage, RAID 0/1/10 configurations, and enhanced system responsiveness. The expansion slots include 1 PCIe 4.0 x16 for graphics cards and 1 PCIe 4.0 x4 for additional expansion, making it ideal for high-performance gaming, video editing, and professional workloads.
Connectivity, Audio, and Cooling
The Colorful BATTLE-AX B650M-E PRO V14 motherboard offers HDMI 2.0, DisplayPort 1.2, 4 USB 2.0 ports, 2 USB 3.2 Gen 1 Type-A, Gigabit LAN, and PS/2 port, providing versatile connectivity for peripherals and multi-display setups. Integrated Realtek ALC897 audio delivers immersive 5.1 channel sound. Onboard headers include CPU and system fan connectors, water pump header, ARGB lighting pins, and front panel audio, supporting both air and liquid cooling solutions with customizable RGB lighting.
Why Choose Colorful BATTLE-AX B650M-E PRO V14 AM5 Motherboard?
- Supports AMD Ryzen 7000/8000/9000 series CPUs with AM5 socket
- 2 DDR5 RAM slots, up to 96GB, DDR5-7600 (OC), XMP & EXPO compatible
- Dual M.2 NVMe slots and 4 SATA 6Gb/s connectors, RAID 0/1/10 support
- PCIe 4.0 x16 and x4 expansion slots for graphics and peripherals
- HDMI 2.0, DisplayPort 1.2, USB 3.2/2.0, Gigabit LAN, PS/2 ports
- Realtek ALC897 5.1 channel audio for immersive sound
- Onboard fan headers, water pump, and ARGB lighting support
- Compact M-ATX form factor 244 x 235mm with 3-year warranty
Buy Now Colorful BATTLE-AX B650M-E PRO V14 AM5 DDR5 M-ATX Motherboard at Ultra Technology
The Colorful BATTLE-AX B650M-E PRO V14 AM5 motherboard combines AMD Ryzen compatibility, DDR5 memory, fast storage, robust connectivity, and customizable RGB lighting, making it ideal for gamers, creators, and high-performance PC builds.
