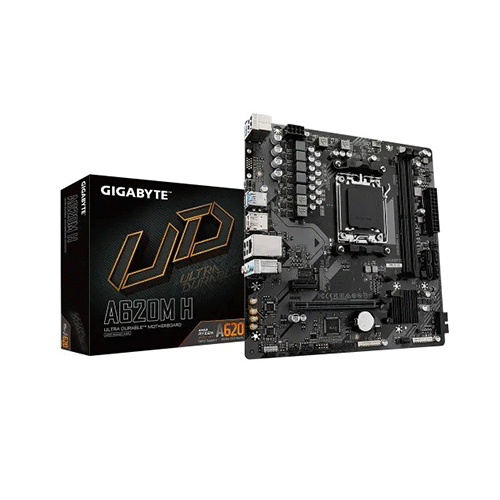

GIGABYTE A620M H AM5 Micro-ATX Motherboard

GIGABYTE A620M H AM5 Micro-ATX Motherboard
-16 %
GIGABYTE A620M H AM5 Micro-ATX Motherboard
Special Price: 10,500৳
Regular Price: 12,430৳
10,500৳
12,430৳
Ex Tax: 10,500৳
EMI starts at 3,682৳/month. View all 27 banks EMI plans >
  • Stock: In Stock
  • Brand: Gigabyte
  • Model: A620M H

Key Features

  • Supported Memory: 2 x DDR5 6400(OC) Max. 96GB
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x DisplayPort, 1 x HDMI
  • Supported CPU: Ryzen 9000 / 8000 / 7000 Series Processors for Socket AM5
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
Type DDR5
Audio Feature Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Display Port (s) 1 x DisplayPort
Graphic supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
PCI 1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Slots 2 x DIMM
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Main Features
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD A620
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm
Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Memory Specifications
Maximum Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Supported Memory 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Connector & ports
Audio Jack 3 x audio jacks
HDMI 1 x HDMI
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
Back Panel Connectors
4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
USB (s) CPU:
2 x USB 3.2 Gen 1 ports on the back panel
1 x USB 2.0/1.1 port on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty 3 Years

GIGABYTE A620M H AM5 Micro-ATX Motherboard

The GIGABYTE A620M H AM5 Micro-ATX Motherboard is a compact yet powerful motherboard designed for users who want a balance of performance, efficiency, and affordability. It supports AMD Ryzen 7000, 8000, and 9000 series processors, making it a future-proof choice for those planning to upgrade their system over time. Equipped with the AMD A620 chipset, this motherboard offers a robust platform for building efficient and cost-effective PCs, especially for gaming, content creation, or everyday computing. One of its standout features is support for DDR5 memory, with two DIMM slots allowing for a maximum memory capacity of 96 GB. The supported memory speeds go up to 6400 MT/s (overclocked), which enhances performance in memory-intensive applications and multitasking. It also supports AMD EXPO™ and XMP profiles, simplifying memory overclocking for improved performance. For expansion, the motherboard includes a PCIe 4.0 x16 slot, offering fast connectivity for a graphics card or an NVMe SSD. There is also an M.2 slot for PCIe 4.0 SSDs, allowing for high-speed storage solutions, and four SATA 6Gb/s ports for additional storage drives with RAID support. In terms of connectivity, the GIGABYTE A620M H comes with USB 3.2 Gen 1 ports and USB 2.0/1.1 ports, ensuring fast data transfer and peripheral support. It also features HDMI 2.1 and DisplayPort 1.4 outputs, supporting up to 4K resolutions for clear and vibrant displays. Built for efficiency, the motherboard supports GIGABYTE’s Control Center (GCC), Q-Flash, and Q-Flash Plus, enabling easy BIOS updates and system management. This motherboard is an excellent choice for users looking for reliable performance and essential features in a compact Micro-ATX form factor.

GIGABYTE A620M H AM5 Micro-ATX Motherboard Features

  • AMD AM5 Socket Support: Compatible with AMD Ryzen 7000, 8000, and 9000 series processors, making it a flexible and forward-compatible platform for various CPUs.
  • DDR5 Memory Support: Comes with 2 DIMM slots, supporting up to 96 GB of DDR5 memory with speeds of up to 6400 MT/s when overclocked, ensuring high-speed performance and efficient multitasking.
  • PCIe Expansion: Equipped with a PCIe 4.0 x16 slot for graphics cards or NVMe SSDs, alongside a PCIe 3.0 x1 slot for additional peripherals.
  • M.2 and SATA Storage: Supports PCIe 4.0 NVMe SSDs through a single M.2 connector and includes 4 SATA 6Gb/s connectors for traditional hard drives or SSDs. Also supports RAID 0, 1, and 10 configurations for both NVMe and SATA devices.
  • High-Resolution Graphics: Provides HDMI 2.1 and DisplayPort 1.4 outputs, supporting up to 4K resolutions at 144 Hz and 60 Hz respectively, making it ideal for high-quality visual outputs.
  • USB Connectivity: Offers a range of USB options, including 2 x USB 3.2 Gen 1 ports on the back panel and multiple USB 2.0 ports, with internal headers providing additional expansion options.
  • Realtek GbE LAN: Integrated 1 Gbps Realtek LAN chip ensures stable and fast internet connectivity.
  • RGB and Cooling Support: Includes both addressable LED and RGB LED strip headers for customizable lighting, as well as headers for system fans to ensure proper cooling.
  • Compact Micro-ATX Form Factor: Ideal for small or mid-sized PC builds without compromising on essential features or performance.
  • Q-Flash and Q-Flash Plus: Provides easy BIOS updates without the need for a CPU, RAM, or GPU installed, making system maintenance straightforward.

These features make the GIGABYTE A620M H a solid choice for budget-friendly builds while offering future-proof performance and essential connectivity options.
