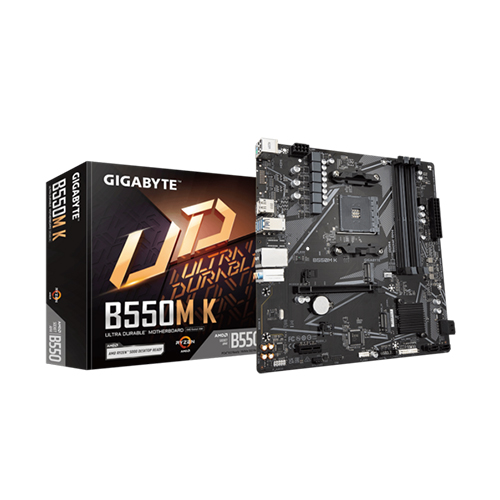

Gigabyte B550M K AM4 Micro ATX Motherboard

Gigabyte B550M K AM4 Micro ATX Motherboard

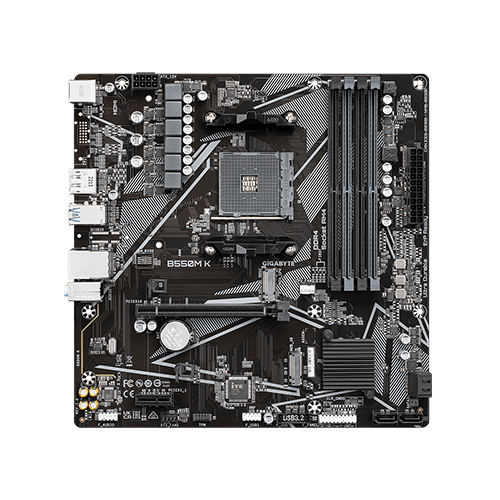

The Gigabyte B550M K AM4 Micro ATX Motherboard is a feature-rich and reliable motherboard designed for AMD Ryzen processors. With its Micro ATX form factor measuring 24.4cm x 24.4cm, it provides a compact yet powerful foundation for building high-performance desktop systems.

The motherboard comes with a versatile BIOS, featuring a 128 Mbit flash memory and a licensed AMI UEFI BIOS. It supports various industry standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring compatibility and ease of use for both novice and experienced users.

Regarding CPU support, the Gigabyte B550M K is equipped with an AMD Socket AM4, making it compatible with a wide range of AMD processors. It supports the AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series Processors, enabling users to choose from a diverse lineup of powerful CPUs to suit their computing needs.

In terms of memory capabilities, the motherboard boasts four DDR4 DIMM sockets, providing a maximum system memory capacity of up to 128 GB (32 GB single DIMM capacity). It supports various memory speeds, ranging from 2133 MHz up to impressive overclocked speeds like DDR4 4733 MHz (OC). The dual-channel memory architecture ensures efficient data transfer and performance.

For graphics connectivity, the Gigabyte B550M K features a DisplayPort and an HDMI port on the rear panel, supporting high-resolution displays with up to 5120x2880@60 Hz and 4096x2160@60 Hz, respectively. This makes it suitable for both productivity tasks and gaming, offering crisp and smooth visuals.

The motherboard comes equipped with several expansion slots, including one PCI Express x16 slot integrated in the CPU, supporting PCIe 4.0 x16 mode (for Ryzen 5000 Series/3000 Series CPUs) and PCIe 3.0 x16 mode (for Ryzen 5000 G-Series/4000 G-Series CPUs). Additionally, there is one PCI Express x1 slot integrated in the chipset, supporting PCIe 3.0 x1 mode, providing flexibility for adding expansion cards such as graphics cards and network adapters.

Storage options on the Gigabyte B550M K are abundant, with support for M.2 SSDs (both SATA and PCIe) and multiple SATA 6Gb/s connectors. It also offers RAID support for enhanced data protection and performance.

The onboard audio features a Realtek Audio CODEC with High Definition Audio, offering 2/4/5.1/7.1-channel audio output for an immersive sound experience.

The motherboard also includes essential monitoring and control features, such as voltage detection, temperature detection, fan speed detection, and fan speed control, ensuring system stability and preventing overheating issues.

With its comprehensive set of features and excellent compatibility, the Gigabyte B550M K AM4 Micro ATX Motherboard is an excellent choice for users looking to build a powerful and reliable desktop system for various computing needs, ranging from productivity tasks to gaming and content creation.

Gigabyte B550M K Motherboard Price In BD

Ultratech brings you the Gigabyte B550M K AM4 Micro ATX Motherboard at the best BD price for 2023. This motherboard boasts cutting-edge technology with support for AMD Ryzen processors, providing you with incredible processing power and efficiency. Its dual-channel DDR4 memory support ensures seamless multitasking and fast data access, while the Realtek Audio CODEC delivers high-definition audio for an immersive entertainment experience.

Features

• AMD Socket AM4 Support: The motherboard is compatible with a variety of AMD processors, including the AMD Ryzen 5000 Series, Ryzen 5000 G-Series, Ryzen 4000 G-Series, and Ryzen 3000 Series Processors, providing users with a broad selection of CPU options.
• Micro ATX Form Factor: The compact Micro ATX form factor (24.4cm x 24.4cm) allows for easy integration into smaller PC cases while still offering powerful performance.
• Dual Channel DDR4 Memory Support: The motherboard accommodates up to four DDR4 DIMM sockets, supporting a maximum system memory capacity of 128 GB (32 GB per DIMM). It supports a wide range of memory speeds, ranging from standard DDR4 2133 MHz to impressive overclocked speeds such as DDR4 4733 MHz (OC).
• High Definition Audio: The onboard Realtek Audio CODEC delivers high-quality audio with support for 2/4/5.1/7.1-channel configurations, providing an immersive sound experience for gaming, entertainment, and multimedia tasks.
• Graphics Connectivity: The motherboard features a DisplayPort and an HDMI port on the back panel, supporting high-resolution displays with up to 5120x2880@60 Hz and 4096x2160@60 Hz, respectively, enabling crisp and clear visuals.
• PCI Express Slots: The motherboard provides one PCI Express x16 slot integrated into the CPU, supporting PCIe 4.0 x16 mode for AMD Ryzen 5000 Series/3000 Series Processors and PCIe 3.0 x16 mode for AMD Ryzen 5000 G-Series/4000 G-Series Processors. It also offers one PCI Express x1 slot integrated into the chipset, supporting PCIe 3.0 x1 mode, allowing users to install various expansion cards.
• Storage Options: The motherboard offers flexible storage options, including two M.2 Socket 3 connectors (one integrated into the CPU and one integrated into the chipset) that support M key type 2280 SSDs. It also features four SATA 6Gb/s connectors integrated into the chipset, supporting RAID 0, RAID 1, and RAID 10 configurations.
• USB Connectivity: The motherboard comes with multiple USB ports, including four USB 3.2 Gen 1 ports on the back panel, two USB 3.2 Gen 1 ports available through the internal USB header, and six USB 2.0/1.1 ports, offering extensive connectivity for peripherals and devices.
• Realtek GbE LAN Chip: The onboard Realtek GbE LAN chip provides reliable and fast Gigabit Ethernet connectivity with 1 Gbps/100 Mbps speeds, ensuring seamless network connectivity.
• Windows OS Support: The motherboard is compatible with both Windows 11 64-bit and Windows 10 64-bit operating systems, ensuring smooth and hassle-free system integration.

Overall, the Gigabyte B550M K AM4 Micro ATX Motherboard delivers a rich set of features, making it an excellent foundation for building a high-performance desktop system for various computing needs, from gaming and content creation to everyday productivity tasks.
