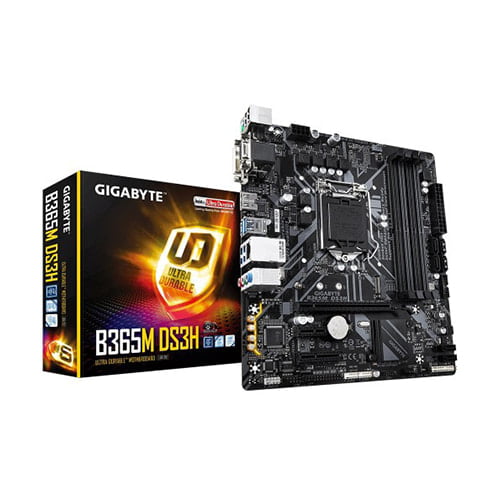

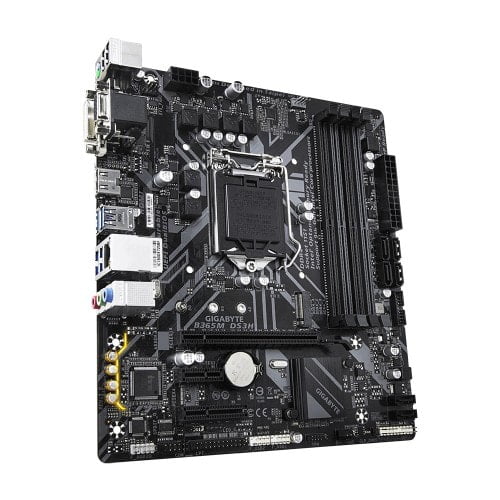

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Gigabyte
  • Model: B365M-DS3H
  • SKU: B365M-DS3H

Discontinued

Add to Wish List Compare this Product

Key Features

    • Model: Gigabyte B365M DS3H
    • Supports 9th and 8th Gen Intel Core Processors
    • Dual Channel DDR4
    • New Hybrid Digital PWM Design
    • Ultra-Fast M.2 with PCIe Gen 3X4
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio Audio chipset : 2/4/5.1/7.1-channel Audio channel : Realtek ALC887
BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel B365 Express Chipset
Form Factor Micro ATX
Supported CPU 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
Generel information
M.2 Socket 1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Maximum Mamory 64GB
PCI 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot
Slots 4
Graphics Specifications
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz - The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz - Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time
Max Shared Memory 1 GB
Memory Specifications
Memory Type DDR4
Supported Memory 2666/2400/2133 MHz
Connector & ports
HDMI Yes ( 1.4 )
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, RAID 5, and RAID 10

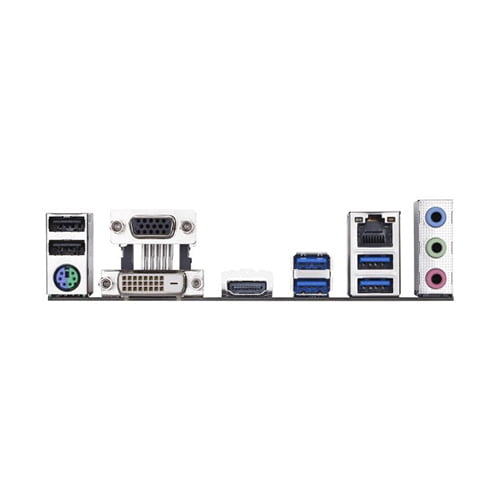

USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty 03 Year

Gigabyte B365M DS3H DDR4 Motherboard

Gigabyte B365M DS3H Motherboard Description: Exclusive Realtek 8118 Gaming LAN Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. Real-Time Network Monitoring NVMe PCIe Gen3 x4 2280 M.2 Connector (Up to 32 Gb/s). GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Hybrid Fan Headers ■ 4 Temperature Sensors ■ 3 Fan Pin Headers ■ All Fan Pin Headers Upgraded to Hybrid Fan Headers ■ Interoperable Fans and Sensors ■ Intuitive UI for Fan Contro Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage modes. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers. Supports RGB Light Strips in 7 Colors Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!
