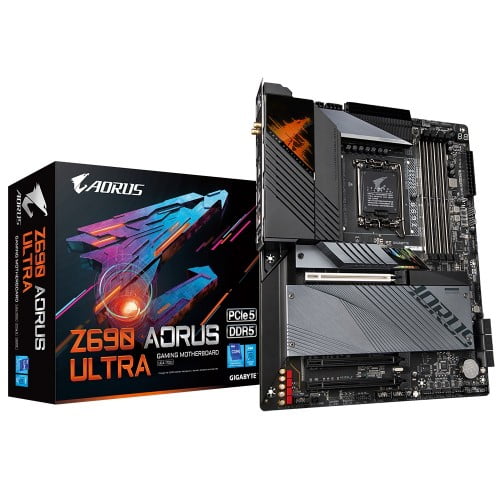

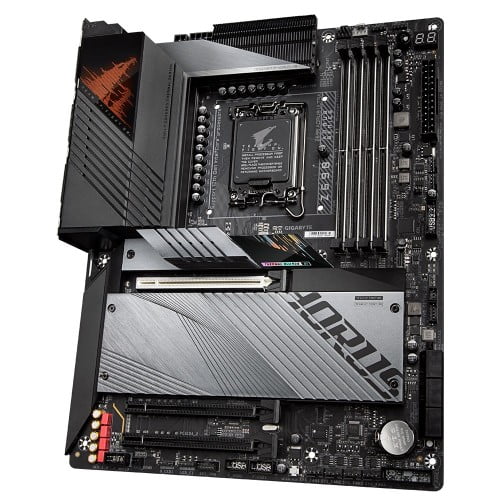

Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard

Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard
Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard
Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard
-11 %
Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard
Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard
Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard
Gigabyte AORUS Z690 ULTRA 12th Gen ATX Gaming Motherboard

TBA

  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: Model

Key Features

    • LGA1700 socket support 12th Gen Intel Series Processors
    • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
    • 16+1+2 Direct Digital VRM Design
    • 2.5G GbE LAN
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
Audio 1 x front panel audio header
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel Z690 Express Chipset
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU
Graphics Specifications
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Memory Specifications
Maximum Memory Up to 128 GB (32 GB single DIMM capacity)
Memory Type DDR5
Supported Memory Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Connector & ports
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10

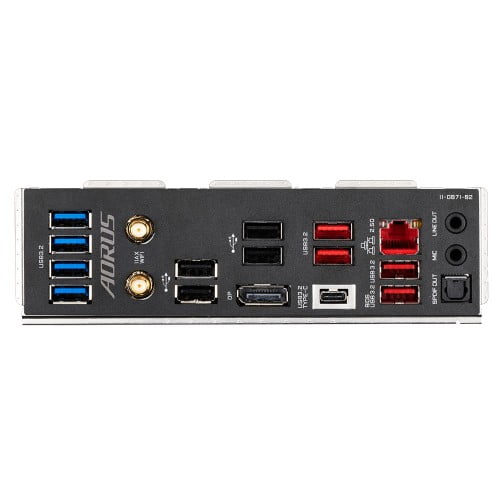

USB (s) Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Generel information
Display Port (s) 1 x DisplayPort
M.2 Socket 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Slots 4 x DIMM
Warranty Information
Warranty 3 years

Gigabyte AORUS Z690 ULTRA Gaming Motherboard

Gigabyte AORUS Z690 ULTRA Gaming Motherboard to ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, the GIGABYTE Z690 series equip the best VRM design ever built with the highest quality components. Provide stable power for CPU integrated PCIe & Memory controller. GIGABYTE gets Z690 Motherboards ready to work with the upcoming PCIe 5.0 device which is expected to experience Twice bandwidth. To reach the high speed and maintain good signal integrity, Gigabyte R&D selects the low impedance PCB to make it work. GIGABYTE Z690 motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing, and a reliable SMD slot. In addition to the hardware upgrades, the user-friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability. DDR5 delivers a 50% improvement compared to the last generation. DDR5 massively elevates the system-level performance. DDR5 provides more bandwidth to keep up with the higher CPU core count bandwidth requirement. The new memory architecture also reduces power consumption. The exclusive 3 PCIe 4.0 M.2 and 2nd Generation 7000 MB/s SSD provides unparalleled Read / Write performance up to 21053 and 15499 MB/s. With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy. AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 6200MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. GIGABYTEs exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with a wide range. All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference. It also has Ultra Durable SMD DDR5 Memory Armor. The DDR5 Auto Booster automatically boosts the Native DDR5 frequency to 5000MHz while the system is under heavy loading with a single click.
