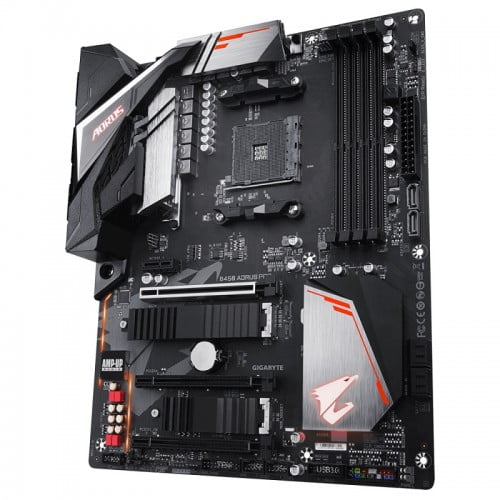

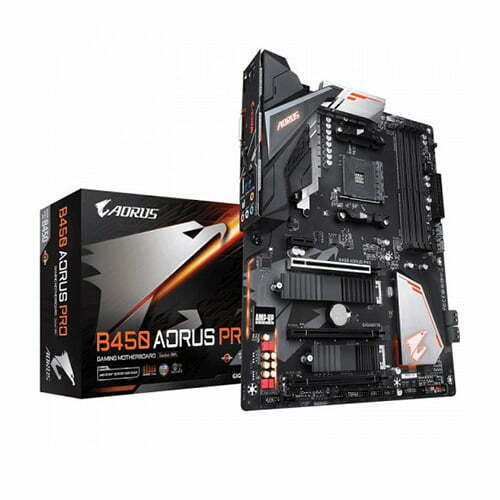

Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard

Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
Gigabyte B450 AORUS PRO AM4 AMD ATX Motherboard
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Gigabyte
  • Model: B450-A-S
  • SKU: B450-A-S

Discontinued

Add to Wish List Compare this Product

Key Features

    • Supports Up to AMD Ryzen 5000 series Processors
    • Chipset: AMD B450
    • Memory: 4 x DDR4, Max 64 GB
    • 4 x PCI Express slots
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
Slots 4 x DDR4 DIMM
Main Features
Audio Realtek ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset AMD B450
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Supported CPU AMD Ryzen 2nd Generation processors AMD Ryzen with Radeon Vega Graphics processors AMD Ryzen 1st Generation processors
Memory Specifications
Maximum Memory 64 GB
Memory Type Dual-Channel DDR4 Memory Technology
Supported Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Connector & ports

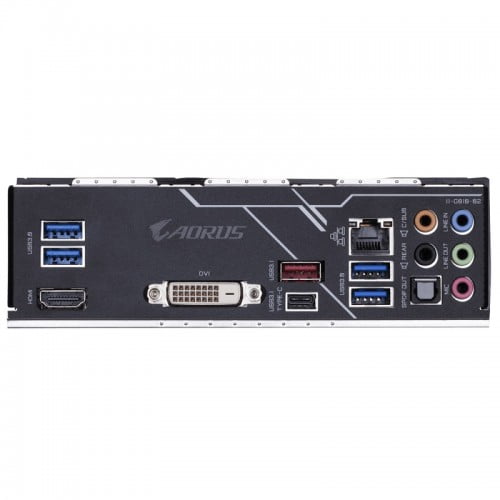

HDMI 1 x HDMI port
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB (s) Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers CPU: 4 x USB 3.1 Gen 1 ports on the back panel
Warranty Information
Warranty 03 years

Gigabyte B450 AORUS PRO Motherboard

Gigabyte B450 AORUS PRO Motherboard CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Dual Ultra-Fast NVMe PCIe Gen3 M.2 with Dual Thermal Guards and 4 PCIe slots. Considering the graphics, it will support AMD Quad-GPU CrossFire and 2-Way AMD CrossFire™ technologies. This exclusive motherboard has the facility of USB Type-C, USB 3.1 Gen 2, Intel GbE LAN with cFosSpeed Internet Accelerator Software and Realtek ALC1220-VB codec HD Audio connectivity with . This Hybrid Digital PWM board is Intel® GbE LAN with cFosSpeed & CEC 2019 ready. Hybrid Digital PWM + Lower RDS(on) MOSFETs AORUS 400-series motherboards use Hybrid Digital PWM + Lower RDS(on) MOSFETs design to support the 2nd Gen AMD Ryzen™ processors by offering incredible precision in developing power of the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. NVMe PCIe Gen3 x4, x2 SSDs With Dual M.2s available on the AORUS 400-series motherboards, configuring RAID Arrays has never been simpler. GIGABYTE Ultra-Efficient M.2 Thermal Guard With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue. Native USB 3.1 Gen2 AMD 400-series chipset provides native USB 3.1 Gen2 ports with speeds up to 10Gbps. 2x faster than USB 3.1 Gen 1 along with backward compatibility with existing USB devices. High-End WIMA & Audio Capacitors The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles. RGB Fusion 2.0 with Digital LEDs Support With AORUS Motherboards, RGB Fusion 2.0 is even better with Digital LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
