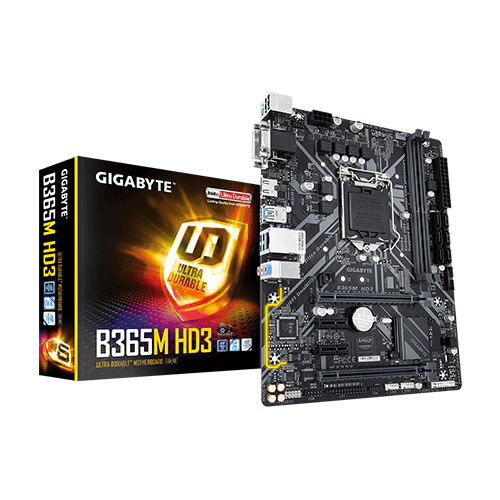

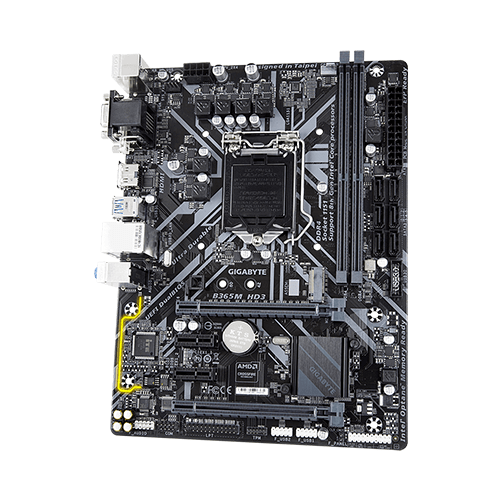

GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD

GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD
GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD
GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD
-7 %
GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD
GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD
GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD
GIGABYTE B365M HD3 ULTRA DURABLE M.2 INTEL GAMING MOTHERBOARD
Based on 0 reviews. - Write a review

Discontinued

  • Stock: Discontinued
  • Brand: Gigabyte
  • Model: B365M-HD3
  • SKU: B365M-HD3

Discontinued

Add to Wish List Compare this Product

Key Features

    • Model: Gigabyte B365M HD3
    • Supports 9th and 8th Gen Processor
    • Hybrid Digital PWM Design
    • RAM Slot-2 x DDR4 DIMM
    • PCI Slot- 4 x PCI Express
View more details

Chat Through

WhatsApp
Messenger
Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Maximum Mamory 32 GB
Maximum shared memory 1 GB
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Slots 2 x DDR4 DIMM
Main Features
Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for RAID 0, RAID 1, RAID 5, and RAID 10
BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel® B365 Express Chipset
Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm
Supported CPU Support for 9th and 8th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
Graphics Specifications
Graphics Memory 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Memory Specifications
Memory Type Dual-channel memory architecture
Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.

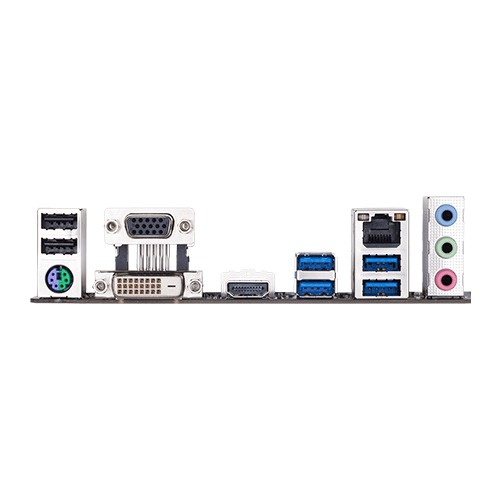

Connector & ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper
LAN Port (s) 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Warranty Information
Warranty 03 years

Gigabyte B365M HD3 9th Gen Motherboard

The Gigabyte B365M HD3 Micro ATX ultra durable motherboard compatible with Intel 9th and 8th gen core i3, i5 i7 and i9 processor with supported Dual Channel DDR4 maximum 32GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Considering the graphics, it will support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096x2160@30 Hz of HDMI ports. This latest motherboard has the facility of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports and Intel Optane Memory Ready. For extreme level of gaming it has GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2 and Smart Fan 5. High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. Smart Fan 5 Gigabyte B365M HD3 Motherboard UseWith Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. 2-Way CrossFire™ Multi Graphics Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
