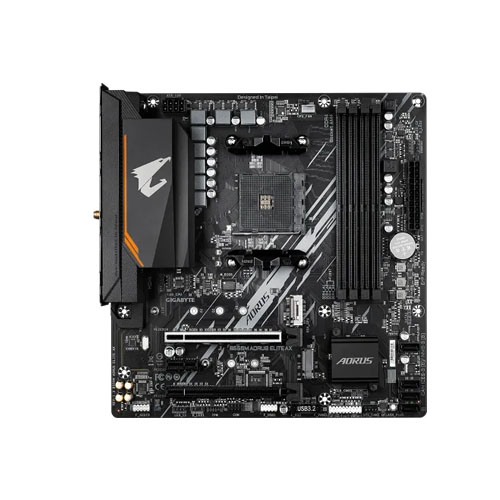

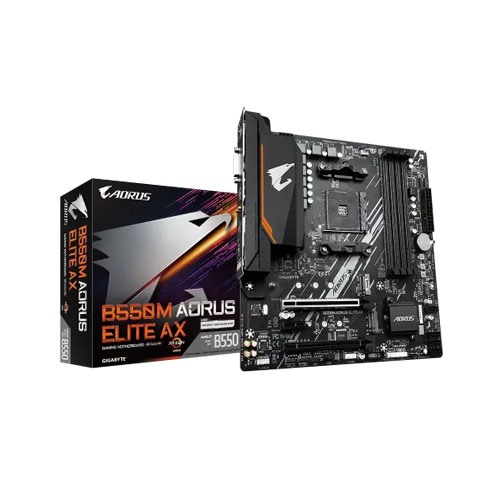

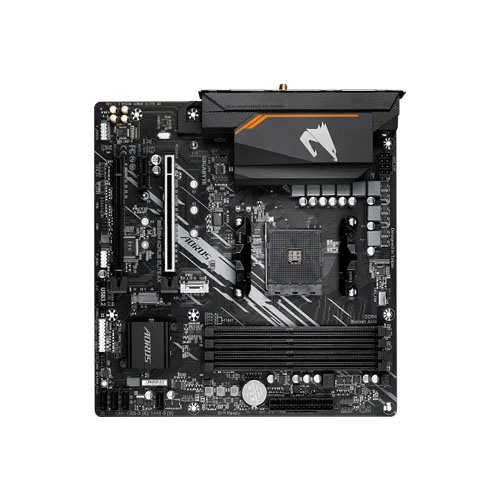

GIGABYTE B550M AORUS ELITE AX DDR4 mATX AM4 Motherboard
TBA
- Stock: Out Of Stock
- Brand: Gigabyte
- Model: B550M AORUS ELITE AX
Out Of Stock
Key Features
- CPU: Socket AM4 supports Ryzen 5000 / 5000 G-Series/ 4000 G-Series and 3000
- Supported RAM: 4 x DIMM, DDR4 4733(OC) MHz
- Graphics Output: 1 x HDMI, 1 x DVI-D
- Features: 1 x M.2 Slot, Realtek GbE LAN chip
| General Information | |
| Type | Dual-Channel Architecture |
| Audio Feature | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Bundled Software | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| Graphic | Integrated in the AMD Ryzen 5000 G-Series/4000 G-Series Processors: |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification. AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode |
| RAID | Support for RAID 0, RAID 1, and RAID 10 |
| Slots | 4 x DDR4 memory slots |
| Special Features | Support for APP Center @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Main Features | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B550 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors |
| Graphics Specifications | |
| Max Shared Memory | 16 GB |
| Memory Specifications | |
| Maximum Memory | support up to 128GB |
| Supported Memory | Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Connector & ports | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset |
| USB (s) | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Warranty Information | |
| Warranty | 03 years warranty |
Gigabyte B550m Aorus Elite Ax Ddr4 Matx Am4 Motherboard
Gigabyte B550M Aorus Elite AX DDR4 MATX AM4 motherboard stands as a stalwart foundation for high-performance computing in a compact Micro-ATX form factor. Crafted for AMD processors, it embodies a blend of cutting-edge technology and user-friendly design. Engineered with the potent B550 chipset, it enables PCIe 4.0 support, ensuring lightning-fast data transfer speeds for graphics cards and NVMe SSDs. The AM4 socket layout accommodates a wide array of Ryzen processors, harnessing their power for seamless multitasking, gaming, and content creation. Featuring a robust power delivery system with premium components, this motherboard ensures stable overclocking capabilities for enthusiasts seeking additional performance. The inclusion of dual M.2 slots with thermal guards allows for efficient heat dissipation, safeguarding storage devices and maintaining optimal performance. Networking prowess is exemplified by its inclusion of Intel WiFi 6 technology and Gigabit Ethernet, providing swift and reliable connectivity options for online gaming, streaming, and everyday usage. With its comprehensive array of USB ports, including USB 3.2 Gen 2 Type-A and Type-C, alongside support for high-speed memory modules up to DDR4 5100MHz, the Gigabyte B550M Aorus Elite AX DDR4 MATX AM4 motherboard embodies versatility, performance, and reliability for discerning users building a compact yet potent system.
Gigabyte B550m Aorus Motherboard Price in BD
Features
- AMD Ryzen Processor Compatibility: Designed for AMD Ryzen processors, utilizing the AM4 socket to support a wide range of CPUs.
- B550 Chipset with PCIe 4.0 Support: Harnesses PCIe 4.0 capabilities for faster data transfer speeds, especially beneficial for high-performance graphics cards and NVMe SSDs.
- Dual M.2 Slots with Thermal Guards: Offers two M.2 slots equipped with thermal guards to dissipate heat efficiently, ensuring optimal performance for high-speed storage devices.
- Robust Power Delivery System: Incorporates high-quality power components to provide stable power delivery, supporting overclocking for enhanced performance.
- Intel WiFi 6 and Gigabit Ethernet: Features Intel WiFi 6 technology for wireless connectivity and Gigabit Ethernet for reliable wired networking, catering to various connectivity preferences.
- USB Connectivity: Provides a variety of USB ports including USB 3.2 Gen 2 Type-A and Type-C for faster data transfer rates and versatile connectivity options.
- Supports High-Speed DDR4 Memory: Allows for high-speed memory modules up to DDR4 5100MHz, facilitating smoother multitasking and application performance.
- Audio Capacitors and Noise Guard: Incorporates audio capacitors and noise guard technology for high-quality audio output, enhancing the overall entertainment experience.
- RGB Fusion 2.0: Offers customizable RGB lighting options and supports RGB LED strips to personalize the system's aesthetics.
- Smart Fan 5: Provides comprehensive fan controls with multiple temperature sensors and hybrid fan headers to maintain optimal system temperatures while minimizing noise levels.
