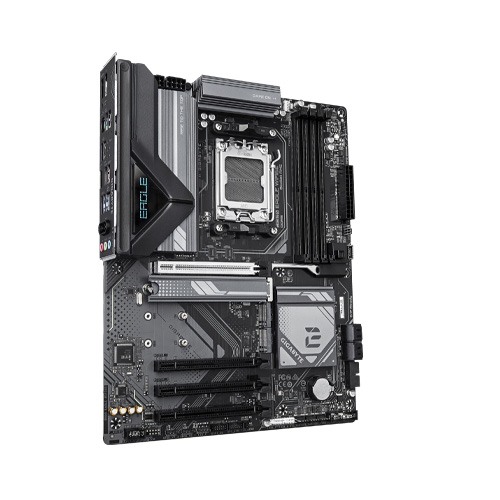

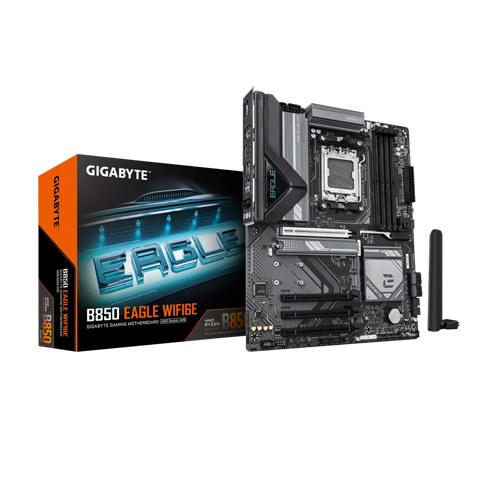

GIGABYTE B850 Eagle WIFI6E AM5 ATX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: B850 Eagle WIFI6E
Key Features
- ATX Form Factor; 30.5cm x 24.4cm
- iTE® I/O Controller Chip
- 1 x 256 Mbit flash
- Intel® Wi-Fi 6E AX210
| Main Features | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Chipset | AMD B850 |
| General Information | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. |
| Onboard Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |

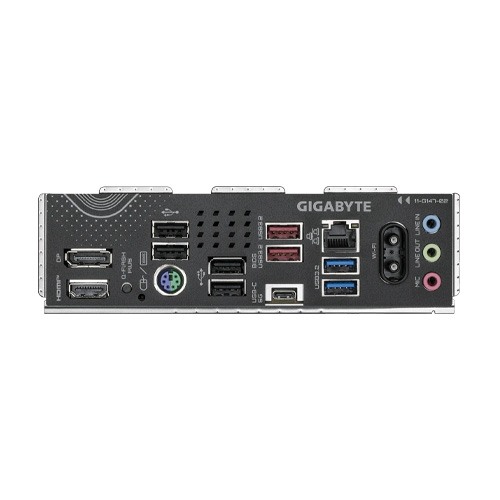

| USB | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
| Warranty Information | |
| Warrantty | 3 years |
GIGABYTE B850 Eagle WIFI6E AM5 ATX Motherboard
GIGABYTE B850 Eagle WIFI6E AM5 ATX Motherboard is a high-performance motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 series processors, offering seamless compatibility and powerful computing capabilities. Featuring the AMD B850 chipset, it ensures excellent system stability, enhanced connectivity, and support for next-gen technologies, making it a great choice for gamers, content creators, and PC enthusiasts. This motherboard supports DDR5 memory with speeds up to 8200 MT/s (O.C.), providing incredible bandwidth for multitasking and high-speed processing. It comes with four DIMM slots, allowing a maximum of 256GB RAM, and is optimized for AMD EXPO™ and XMP memory profiles to unlock the full potential of overclocking. For storage, the GIGABYTE B850 Eagle offers three M.2 slots with support for PCIe 5.0 and PCIe 4.0 SSDs, ensuring ultra-fast data transfer speeds. Additionally, four SATA 6Gb/s ports provide extra storage flexibility. The PCIe 5.0 x16 slot delivers high-speed performance for the latest graphics cards, making it ideal for gaming and professional workloads. The integrated Wi-Fi 6E and Bluetooth 5.3 ensure high-speed wireless connectivity, while the Realtek 1GbE LAN offers reliable wired networking. The motherboard features multiple USB ports, including USB 3.2 Gen 2 Type-A and USB Type-C, catering to high-speed data transfer needs. For display options, it includes HDMI 2.1 and DisplayPort 1.4, supporting 4K resolution at high refresh rates. The Realtek HD audio codec ensures immersive sound quality. With advanced cooling solutions, durable components, and GIGABYTE’s signature Ultra Durable design, the B850 Eagle WIFI6E is a robust and future-proof choice for high-performance PC builds.
