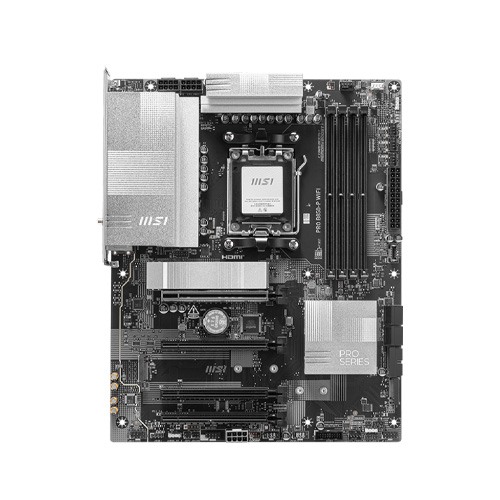

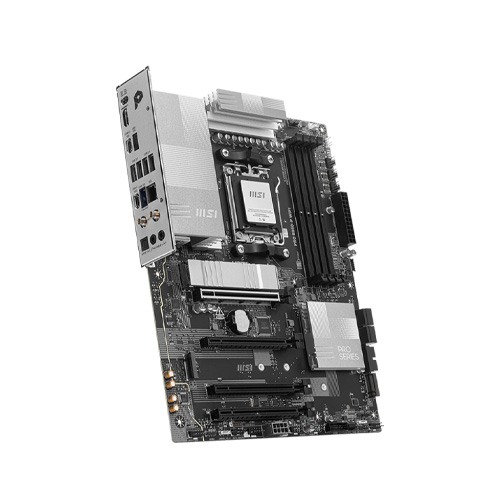

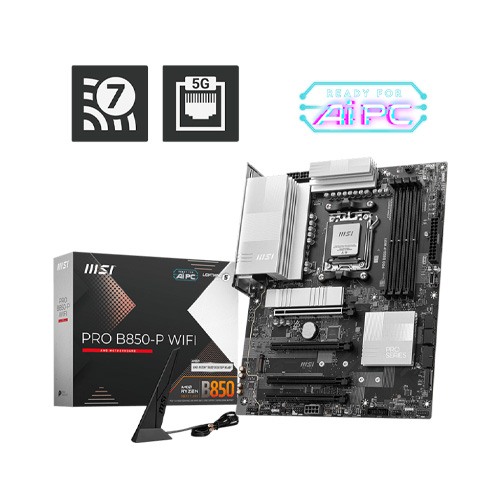

MSI PRO B850-P WIFI MOTHERBOARD
Discontinued
- Stock: Discontinued
- Brand: MSI
- Model: PRO B850-P WIFI
Discontinued
Key Features
- Supports for AMD Ryzen 7000/8000/9000 series desktop processors
- Support for DDR5 8200 MHz memory (OC)
- 3 M.2 PCIe slots (one 5.0 x4 slot)
- High-definition 7.1 audio with Realtek ALC897 chipset
| General Information | |
| Chipset Manufacturer | AMD B850 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |

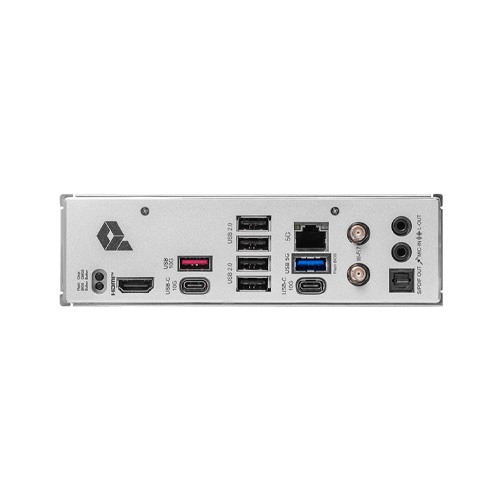

| BACK PANEL PORTS | Clear CMOS Button USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 10Gbps Type-C USB 5Gbps Type-A USB 10Gbps Type-C S/PDIF OUT |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| LAN | Realtek® 8126VB 5G LAN |
| LED FEATURE | 4x EZ Debug LED |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Operating System | Support for Windows® 11 64-bit |
| PCB Form | ATX 243.84mmx304.8mm |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. |
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |
| Ports & slots | |
| I/O Port | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Warranty Information | |
| Warranty | 03 Years |
MSI PRO B850-P WIFI MOTHERBOARD
MSI PRO B850-P WIFI MOTHERBOARD is a feature-rich and high-performance motherboard designed for professionals and gamers seeking reliability, speed, and efficiency. Powered by the AMD B850 chipset, it supports the latest AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, utilizing the AM5 socket to deliver outstanding processing power.Equipped with four DDR5 UDIMM slots, this motherboard supports up to 256GB of RAM with overclocking speeds reaching 8200+ MT/s, ensuring smooth multitasking and enhanced system responsiveness. It also supports AMD EXPO™, JEDEC speeds, and dual-channel mode, offering an optimized memory experience.For graphics, the HDMI™ 2.1 port enables 4K resolution at 60Hz, making it perfect for high-definition visuals when using compatible processors with integrated graphics. Expansion options include four PCI-E x16 slots, with PCIe 5.0 support on the primary slot, providing high-speed connectivity for next-generation graphics cards and peripherals.The storage options are impressive, featuring three M.2 slots, supporting PCIe 5.0 and PCIe 4.0 for ultra-fast NVMe SSDs. Additionally, four SATA 6G ports offer ample storage for HDDs and SSDs. The Realtek® ALC897 audio chipset delivers 7.1-channel high-definition sound, ensuring an immersive audio experience.For networking, the Realtek® 8126VB 5G LAN provides ultra-fast wired connectivity, while Wi-Fi 7 and Bluetooth 5.4 offer cutting-edge wireless performance. The motherboard also includes multiple USB 10Gbps Type-C and Type-A ports, ensuring high-speed data transfer and versatile connectivity.With EZ Debug LED indicators, a Flash BIOS button, multiple RGB LED headers, and robust power delivery, the PRO B850-P WIFI MOTHERBOARD is an excellent choice for professionals and PC builders looking for a durable, future-proof solution.
Features
- Supports AMD Ryzen™ 9000/8000/7000 Series Processors for high performance.
- DDR5 Memory Support up to 256GB with speeds up to 8200+ MT/s.
- PCIe 5.0 x16 Slot for next-gen graphics cards and high-speed expansion.
- Triple M.2 Slots with PCIe 5.0 & PCIe 4.0 support for ultra-fast SSDs.
- Wi-Fi 7 & 5G LAN for high-speed wired and wireless connectivity.
- 7.1-Channel HD Audio powered by Realtek® ALC897 for immersive sound.
- USB 10Gbps Type-C & Type-A Ports for fast data transfer and connectivity.
- ARGB & RGB Lighting Support with multiple LED connectors for customization.
- EZ Debug LED & Flash BIOS Button for easy troubleshooting and updates.
