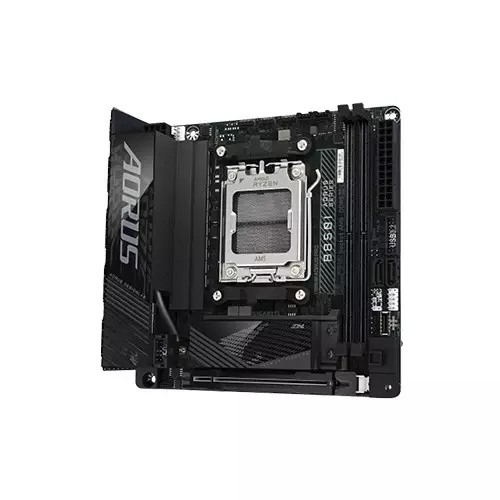

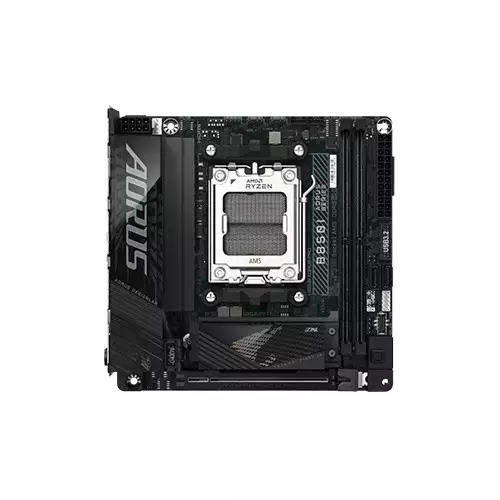

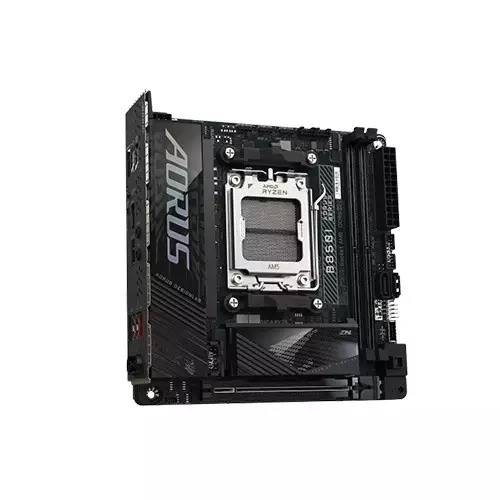

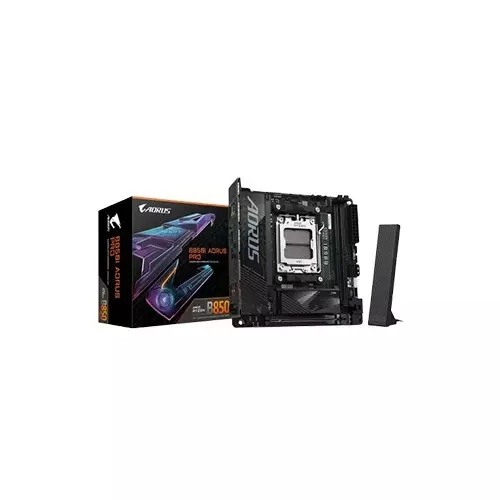

Gigabyte B850I AORUS PRO DDR5 AMD AM5 Mini ITX Motherboard
- Stock: In Stock
- Brand: Gigabyte
- Model: B850I AORUS PRO
Key Features
- Supported CPU: AMD Socket AM5
- Form Factor: Mini-ITX
- Memory Max.: Supporting up to 128 GB
- Ram Type: DDR5
| General Information | |
| Audio | Realtek® ALC4080 CODEC High Definition Audio 2-channel |

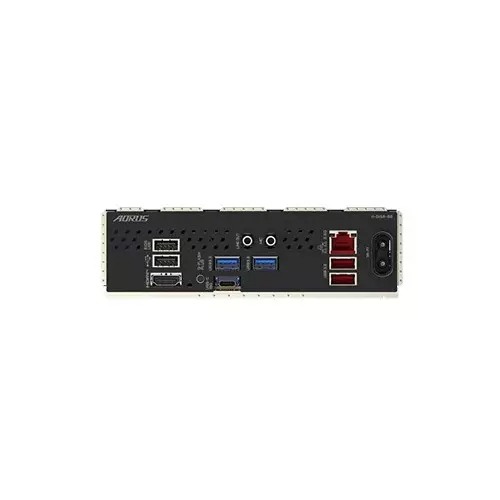

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x HDMI port* 2 x antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port |
| Bios Information | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Chipset Model | AMD B850 |
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Memory | Support for DDR5 8800(OC)/ 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. |
| Operating System | Support for Windows 11 64-bit |
| USB | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |

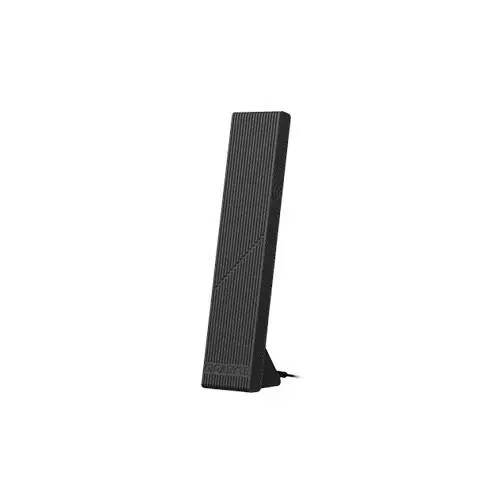

| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
| Warranty Information | |
| Warranty | 3 Years |
Gigabyte B850I AORUS PRO Motherboard
Gigabyte B850I AORUS PRO DDR5 is a premium Mini-ITX motherboard designed for powerful yet compact AMD builds. Built on the AMD B850 chipset and AM5 socket, it supports the latest Ryzen 9000, 8000, and 7000 series processors. Despite its small 17×17 cm footprint, this board packs next-gen performance, cutting-edge connectivity, and robust thermal and power features, making it ideal for SFF gaming rigs and high-end workstation PCs.
Processor and Chipset Support
Powered by the AMD B850 chipset, the motherboard fully supports AMD Ryzen™ 9000/8000/7000 series CPUs on the AM5 socket. It is optimized to deliver stable performance for both gaming and productivity workloads, with PCIe 5.0 support available when paired with Ryzen 9000 or 7000 series processors.
Memory Performance
This board supports DDR5 memory up to 8800 MT/s (OC) with dual-channel architecture. With two DDR5 DIMM slots supporting up to 128 GB, users can enjoy ultra-fast bandwidth and smooth multitasking. Compatibility with AMD EXPO™ and Intel XMP profiles ensures easy memory tuning for maximum performance.
Graphics and Expansion
The integrated graphics output supports HDMI 2.1 with up to 4K@60Hz, HDR, and HDCP 2.3. For discrete graphics or storage expansion, the PCIe x16 slot offers PCIe 5.0 or 4.0 support depending on the installed CPU, ensuring future-ready performance.
Storage and Connectivity
Storage options include two M.2 slots, one supporting PCIe 5.0 (CPU-based) and another PCIe 4.0 (chipset-based), along with two SATA 6Gb/s ports. RAID 0/1/5/10 support adds flexibility for high-speed or redundant storage setups. Networking is top-tier with 2.5GbE LAN and Wi-Fi 7 with Bluetooth 5.4, delivering ultra-fast wireless performance.
Audio, USB, and I/O
High-quality audio is handled by the Realtek ALC4080 codec, offering clear 2-channel HD sound. The motherboard includes multiple USB 3.2 Gen 2 Type-A and Type-C ports, internal headers, RGB Gen2 headers, and advanced hardware monitoring for fans and cooling.
BIOS and Software
With a 256 Mbit AMI UEFI BIOS, Q-Flash Plus, and Gigabyte Control Center support, system updates and tuning are simple and user-friendly. Windows 11 (64-bit) is fully supported.
Buy Now – Gigabyte B850I AORUS PRO DDR5 AMD AM5 Mini-ITX Motherboard Form Ultra Technology
Upgrade your compact PC with next-generation performance and premium features by purchasing this motherboard from Ultra Technology today.
