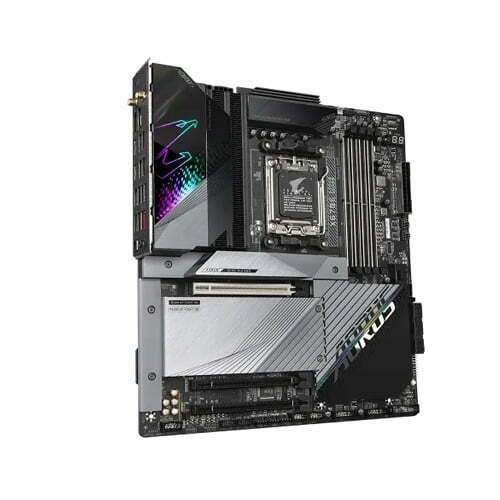

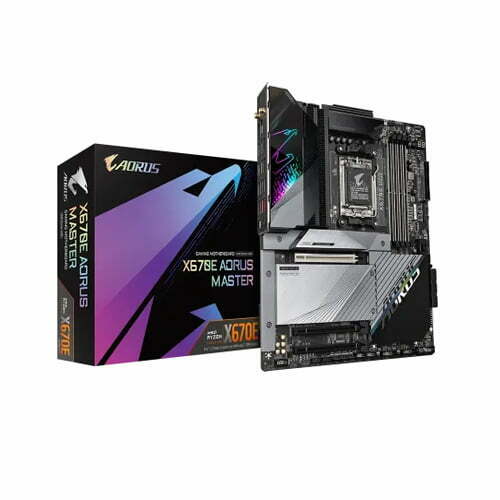

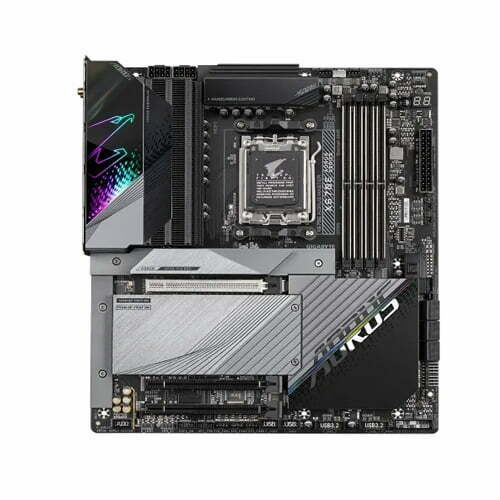

Gigabyte X670E AORUS MASTER AMD Motherboard
The Gigabyte X670E AORUS MASTER Motherboard supports AMD Ryzen 7000 Series Processors for AMD socket AM5. It can deliver unparalleled performance with direct 16+2+2 Phases Digital VRM Solution. The Gigabyte X670E AORUS MASTER comes with 4x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support. It supports DDR5 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules. It features 4x PCIe 5.0 x4 M.2 Connectors for next-generation storage. It has a Fins-Array III & M.2 Thermal Guard III to Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance. The new generation Fins-Array III delivers the ultimate thermal performance by using Extended Irregular fins to fill all available space and vastly increase surface area. A piece of Fins-Array III heatsink surface area is larger than 2 full-size ATX motherboard PCBs, therefore it tremendously boosts thermal efficiency and heat exchange performance. It also comes with SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design. M.2 Thermal Guard III is constructed with a 9X optimized heat dissipation surface to prevent throttling and bottleneck that the high-speed/ large capacity of PCIe 5.0 M.2 SSDs may cause, especially under a heavy workload. The special design of heatsink grooves in the direction of the CPU further enhances the in-chassis air flow and optimizes the heat convection efficiency. DisplayPort over USB Type-C enables the delivery of full DisplayPort A/V performance (driving monitor resolutions of 4K and beyond), SuperSpeed USB (USB 3.2 Gen 2) 10Gbps data transition and power delivery with the convenience of reversible plug orientation and cable direction. The Gigabyte X670E AORUS MASTER Motherboard is equipped with the latest Wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides a 4X range over BT 4.2 and faster transmission.
Gigabyte X670E AORUS MASTER vs ASUS PRIME H610M-A D4
INFORMATION
Gigabyte X670E AORUS MASTER DDR5 AMD AM5 E-ATX Motherboard
ASUS PRIME H610M-A D4
CHIPSET
AMD X670
Intel H610 Chipset
FORM FACTOR
E-ATX Form Factor; 30.5cm x 26.9cm
mATX Form Factor
9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
LAN
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x Intel 1Gb Ethernet
CPU
AMD Socket AM5, support for : AMD Ryzen 7000 Series Processors
Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Key Features
Supported CPU: Ryzen 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, Max 128GB

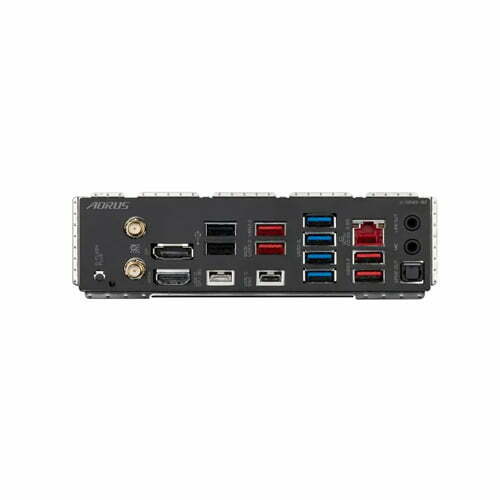

Graphics Output: 1 x DisplayPort, 1 x USB Type-C, 1 x HDMI
Features: Intel 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax
[embed]https://www.youtube.com/watch?v=IlAqX_majas[/embed]
[ninja_tables id="57844"].. |
MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard
The MSI MPG X670E CARBON WIFI Motherboard supports AMD Ryzen 7000 Series Desktop Processors. The latest MSI MPG X670E CARBON WIFI supports DDR5 Memory, Maximum Memory Capacity of up to 128GB. It features an 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink with a Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and a Double-sided M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MPG X670E CARBON WIFI offer PCIe Gen 5 transfers from both the primary GPU slot and the primary M.2 slot and DisplayPort 2.0-out from the rear USB Type-C. It also supports ARGB Gen2 for connecting various RGB lighting peripherals. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG X670E CARBON WIFI Motherboard offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. There's an 18+2 90A VRM power phase system, which is cooled by an extended heatsink. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs. Four onboard M.2 slots are available including one PCIe Gen 5 slot. MSI additionally offers an M.2 Xpander-Z add-on card in the box that provides for two additional PCIe Gen 5 x4 M.2 slots... |
MSI TRX40 PRO 10G STRX4 ATX AMD MOTHERBOARD
Build a workstation dedicated to media production with the TRX40 PRO 10G sTRX4 ATX Motherboard from MSI. Ideal for the creative developer who wishes to manage every aspect of their build, the TRX40 offers flexibility and utility for high-resource demanding components in an ATX form factor. The TRX40 chipset gives you an sTRX4 CPU socket, allowing you to install AMD Ryzen Threadripper-based processors, made to handle an abundance of protocols simultaneously. Eight memory DIMMs provide quad-channel architecture for smooth multitasking. Install an array of storage devices with eight SATA III and two M.2 ports, giving you ample room for your projects.
Equip your rig with multiple graphics, sound, and utility cards with four PCIe 4.0 x16 slots, which are also NVIDIA SLI and AMD CrossFire compliant up to three devices. A single PCIe 3.0 x1 slot is available for wireless networking and video capture cards. Additionally, you have an array of USB 3.2 Gen 1 and Gen 2 ports, giving you increased peripheral accessibility. The TRX40 Pro is compatible with the Windows 10 (64-bit) operating system for optimal performance and compatibility with your software.
DIY Friendly
MSI made the TRX40 with the custom builder in mind, adding features that make assembly as easy and safe as possible. Convenient setup includes pin-header keep-out zones, friendly SATA and USB locations, and multiple cooling solutions. Additional troubleshooting tools are built into the board for easy diagnosis, and the BIOS software makes it easy to get your build started as well as fine-tune overclocking profiles if you choose to do so.
Enhanced Performance
Aside from media production and graphic rendering, you can also play games. With CPU Core Boost and DDR4 Boost memory enhancements, you can experience high-definition visual effects and immerse yourself into the battlefield. Quality materials and smart fan optimizations contribute to cooling all essential components, ensuring your system is stable and offering enhanced performance whether you are designing or relaxing with games. Additionally, with Lightning USB 20G capabilities, you get USB 3.2 Gen2x2 which offers fast USB speeds with increased stability.
Thermal Solutions
An all-aluminum heatsink design allows high-end processors to run at full speed while efficiently dissipating heat. MSI's Frozr technology provides protection for your chipset and M.2 drives with the M.2 Shield Frozr. The Frozr heatsink design uses a patented fan and double ball bearings to provide the best experience for enthusiast gamers and developers.
Connectivity
Along with various USB 3.2 Gen 1 and Gen 2 ports, you can also elevate your media experience with studio-grade sound quality from MSI's Audio Boost technology. Delivering high sound quality using premium audio components, you can enjoy streaming media and immerse yourself in your favorite games. Additionally, you can take advantage of dual ethernet ports, allowing you to increase bandwidth functionality and use team-based LAN features.
M.2 XPander-Z Gen4 & 10G Super LAN Card
Included with the TRX40 Pro is the M.2 XPander-Z Gen4 and 10G Super LAN cards. The XPander-Z Gen 4 adds four additional M.2 NVMe PCIe solid-state drives and plugs into a PCIe 4.0 x16 slot. The 10G Super LAN card increases network performance with fast data throughput and can be installed into the PCIe 3.0 x1 slot.
RGB Customization
Equipped with several RGB headers, the TRX40 Pro allows you to connect an array of lighting strips as well as RGB-enabled components, making your build unique to your style.. |
Gigabyte X670E AORUS PRO X AM5 MotherboardGigabyte X670E AORUS PRO X AM5 motherboard is a high-performance ATX motherboard designed to support the latest AMD Ryzen™ 7000 and Ryzen™ 8000 Series processors, offering exceptional computing power and versatility for gaming, content creation, and other demanding tasks. Powered by the advanced AMD X670 chipset, this motherboard delivers superior performance and reliability With support for DDR5 memory modules running at speeds up to 8000MHz (OC), the X670E AORUS PRO X ensures lightning-fast data processing and multitasking capabilities. Its four DDR5 DIMM sockets allow for a maximum system memory capacity of up to 192GB, providing ample room for memory-intensive applications and games. Equipped with integrated AMD Radeon™ Graphics support and HDMI ports, this motherboard delivers stunning visuals with resolutions of up to 4096x2160@60Hz, ensuring a seamless multimedia experience. Additionally, the Realtek® Audio CODEC provides high-definition audio output with support for 2/4/5.1/7.1-channel configurations, immersing users in rich, immersive soundscapes. For networking, the X670E AORUS PRO X features Intel® 2.5GbE LAN and Qualcomm® Wi-Fi 7 connectivity, enabling high-speed internet access and seamless wireless communication. The inclusion of MediaTek Wi-Fi 7 ensures compatibility with the latest wireless standards, offering blazing-fast speeds and reliable connectivity. Expansion options are plentiful, with multiple PCIe slots and M.2 connectors supporting PCIe 4.0 and PCIe 5.0 SSDs for ultra-fast storage performance. RAID support for both NVMe SSDs and SATA storage devices further enhances data redundancy and performance. The motherboard also boasts a comprehensive array of USB ports, including USB 3.2 Gen 2x2 Type-C ports for high-speed data transfer and connectivity with a wide range of peripherals. Featuring advanced monitoring and control features, including voltage, temperature, and fan speed detection, the X670E AORUS PRO X ensures optimal system performance and stability. The BIOS offers a user-friendly interface with support for GIGABYTE Control Center (GCC), enabling easy customization and management of system settings. Overall, the Gigabyte X670E AORUS PRO X AM5 motherboard combines cutting-edge technology, robust construction, and user-friendly features to deliver an exceptional computing experience for enthusiasts and professionals alike.FeaturesSupport for AMD Ryzen™ 7000 and Ryzen™ 8000 Series Processors: Designed to accommodate the latest AMD processors, offering exceptional performance and compatibility for gaming, content creation, and more.Advanced AMD X670 Chipset: Employs the powerful AMD X670 chipset to provide enhanced performance, stability, and reliability for demanding computing tasks.DDR5 Memory Support: Supports DDR5 memory modules with speeds up to 8000MHz (OC), providing lightning-fast data processing and multitasking capabilities for high-performance computing.Integrated Graphics Support: Features integrated graphics support with HDMI ports, delivering stunning visuals with resolutions of up to 4096x2160@60Hz for immersive multimedia experiences.High Definition Audio: Equipped with Realtek® Audio CODEC, offering high-definition audio output with support for various audio configurations, including 2/4/5.1/7.1-channel setups.Advanced Networking Options: Includes Intel® 2.5GbE LAN chip and Qualcomm® Wi-Fi 7 connectivity, ensuring high-speed internet access and seamless wireless communication for enhanced networking capabilities.Expansion Slots: Offers multiple PCIe slots and M.2 connectors supporting PCIe 4.0 and PCIe 5.0 SSDs, providing ample room for expansion and ultra-fast storage performance.USB Connectivity: Provides a comprehensive array of USB ports, including USB 3.2 Gen 2x2 Type-C ports, for high-speed data transfer and connectivity with various peripherals.Comprehensive Monitoring and Control: Incorporates advanced monitoring features for voltage, temperature, and fan speed detection, ensuring optimal system performance and stability.User-Friendly BIOS Interface: Features a user-friendly BIOS interface with support for GIGABYTE Control Center (GCC), allowing for easy customization and management of system settings.RAID Support: Offers support for RAID 0, RAID 1, and RAID 10 configurations for both NVMe SSDs and SATA storage devices, enhancing data redundancy and performance.Form Factor: Comes in an ATX form factor, measuring 30.5cm x 24.4cm, providing compatibility with a wide range of PC cases and configurations... |
