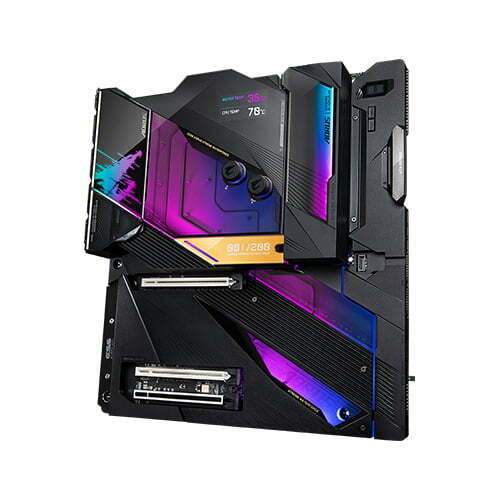

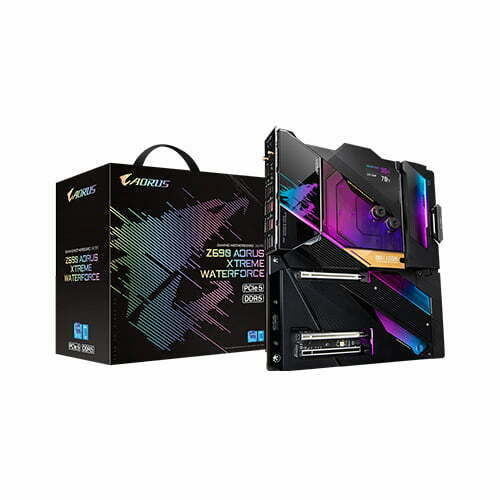

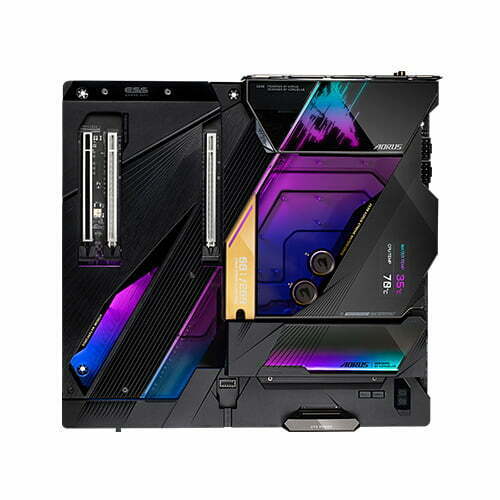

Gigabyte Z690 Aorus Xtreme Waterforce Motherboard

Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard
Gigabyte Z690 Aorus Xtreme Waterforce Motherboard

TBA

  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: Z690-WM
  • SKU: Z690-WM

Key Features

Contact for Bulk Quantity: 01771833944
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General Information
DisplayPort supporting DisplayPort
Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
HDCP HDCP 2.3
I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 1 x water cooling kit CPU LED header (LED_CPU) 1 x AORUS RGB Memory Armor power header (LED_DDR) 4 x system fan headers 4 x system fan/water cooling pump headers 1 x noise detection header 2 x integrated extension cable headers for addressable and RGB LED strips 4 x SATA 6Gb/s connectors 4 x M.2 Socket 3 connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 2 x temperature sensor headers 1 x power button 1 x reset button
LAN Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
M.2 Socket 4 x M.2 Socket 3 connectors
Manufacture Warranty 03 Years Warranty
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
PCI-E 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4_1) (The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)
USB 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 2 Hub: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB header (with the included front USB header extension cable)
Main Features
Audio 2 x audio jacks 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS® Sound Unbound™ High Definition Audio 2-channel Support for S/PDIF Out
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel Z690 Express Chipset
Form Factor E-ATX Form Factor; 30.5cm x 28.5cm
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors L3 cache varies with CPU
Graphics Specifications
Graphics Memory 2 x Intel Thunderbolt 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output) Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed.
Memory Specifications
Memory Slots 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory,
Memory Type Dual channel memory architecture
Supported Memory Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Connector & ports
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors
