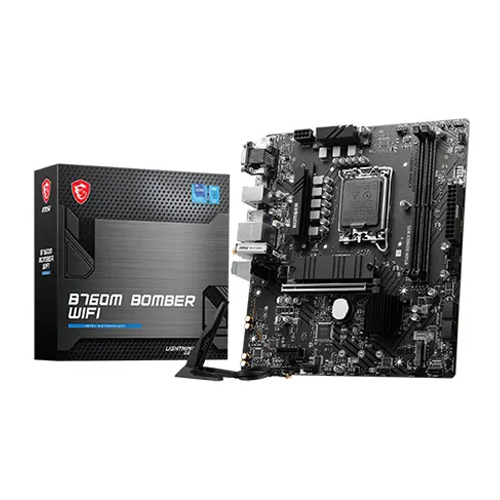

MSI B760M BOMBER WIFI DDR5 ATX Motherboard

MSI B760M BOMBER WIFI DDR5 ATX Motherboard

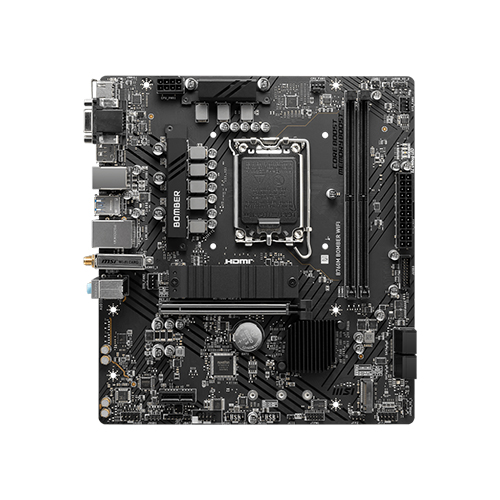

The MSI B760M BOMBER WIFI DDR5 ATX Motherboard is a powerful and feature-packed motherboard designed for gaming and high-performance computing. It is built on the INTEL B760 chipset and has a compact mATX form factor, measuring 220mmx243.84mm. With its impressive specifications and extensive connectivity options, this motherboard offers a great platform for building a high-end gaming or productivity system.

The motherboard supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with the LGA 1700 socket, providing excellent performance and compatibility. It features a single PCI-E x16 slot and a PCI-E x1 slot for expansion, allowing you to add additional components such as a graphics card or sound card.

In terms of memory, the B760M BOMBER supports the latest DDR5 technology, offering a maximum memory capacity of 96GB. It supports DDR5 memory modules with speeds up to 6400+ MHz (overclocked), ensuring fast and efficient multitasking capabilities. The motherboard also supports Intel XMP 3.0 OC, enabling easy overclocking of memory modules for enhanced performance.

The B760M BOMBER comes with comprehensive connectivity options. On the back panel, you'll find HDMI, VGA, and DisplayPort outputs for connecting multiple monitors. It also includes USB 2.0 and USB 3.2 Gen 1 Type-A ports, as well as 2.5G LAN, Wi-Fi, Bluetooth, and audio connectors. The inclusion of Wi-Fi 6E ensures fast and reliable wireless connectivity, and the Realtek RTL8125B 2.5Gbps LAN provides high-speed wired networking.

For storage, the motherboard offers two M.2 slots supporting PCIe 4.0 x4 and SATA devices, allowing for fast and flexible storage configurations. It also has four SATA 6G ports for additional storage options. The motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, offering data protection and performance optimization.

The MSI B760M BOMBER WIFI DDR5 ATX Motherboard is built with quality components and features an intuitive BIOS interface for easy system configuration. It supports the latest operating systems, including Windows 11 64-bit and Windows 10 64-bit.

Features

• Chipset and Form Factor: The motherboard is based on the INTEL B760 chipset and has a compact mATX form factor, measuring 220mmx243.84mm. It provides a balance between space-saving and performance.
• Audio Feature: The motherboard features the Realtek ALC897 Codec, delivering 7.1-channel high-definition audio. This ensures immersive sound quality for gaming, movies, and music.

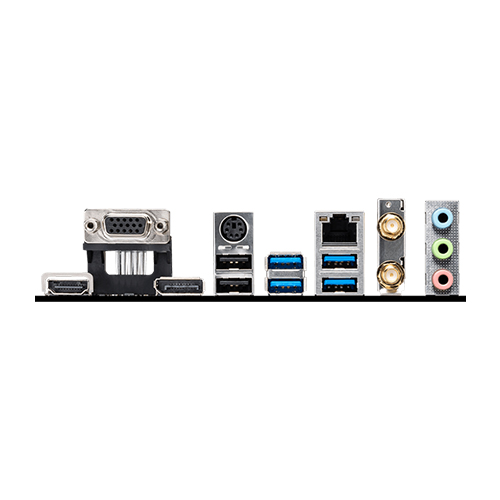

• Back Panel Ports: The back panel includes a range of ports, including HDMI, VGA, DisplayPort, keyboard/mouse, 2.5G LAN, Wi-Fi/Bluetooth, audio connectors, USB 2.0, and USB 3.2 Gen 1 5Gbps (Type-A). These ports enable easy connectivity to various devices and peripherals.
• CPU Support: The motherboard supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with the LGA 1700 socket. This provides compatibility with the latest Intel processors for powerful performance.
• Expansion Slots: It features one PCI-E x16 slot and one PCI-E x1 slot for expansion, allowing users to add additional components such as a dedicated graphics card or sound card to enhance their system's capabilities.
• Internal I/O: The motherboard offers various internal connectors, including power connectors (ATX_PWR and CPU_PWR), CPU fan, system fan, front panel connectors (JFP), chassis intrusion (JCI), front audio (JAUD), com port (JCOM), RGB LED connectors (JARGB_V2 and JRGB), TPM pin header (supporting TPM 2.0), USB 2.0, and USB 3.2 Gen1 Type A.
• LAN and LED Features: It is equipped with a Realtek RTL8125B 2.5Gbps LAN, providing fast and reliable wired networking. The motherboard also features 4x EZ Debug LED indicators, allowing easy troubleshooting in case of any issues.
• Memory Support: The B760M BOMBER supports DDR5 memory technology and can accommodate up to 96GB of RAM. It supports various DDR5 memory speeds, including overclocked speeds, and features Intel XMP 3.0 OC for easy memory overclocking. It supports dual-controller dual-channel mode and non-ECC, un-buffered memory.
• Onboard Graphics: The motherboard features onboard graphics capabilities, including 1x HDMI supporting HDMI 2.1 with HDR and a maximum resolution of 4K 60Hz, 1x DisplayPort supporting DP 1.4 with a maximum resolution of 4K 60Hz, and 1x D-Sub supporting VGA with a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, and 1920x1200 60Hz.
• Operating System Support: It offers support for Windows® 11 64-bit and Windows® 10 64-bit, ensuring compatibility with the latest operating systems.
• RAID and Storage: The motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, providing data protection and performance optimization. It offers 2x M.2 slots supporting PCIe 4.0 x4 and SATA devices, as well as 4x SATA 6G ports for additional storage options.
• USB: It provides multiple USB ports, including 2x USB 2.0 ports at the rear, 4x USB 2.0 ports at the front, 4x USB 3.2 Gen1 Type A ports at the rear, and 2x USB 3.2 Gen1 Type A ports at the front. These ports enable convenient connectivity and high-speed data transfer.
• Wireless and Bluetooth: The motherboard comes with Intel Wi-Fi 6E pre-installed in the M.2 (Key-E) slot, offering MU-MIMO TX/RX and support for 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps. It supports 802.11 a/b/g/n/ac/ax Wi-Fi standards and Bluetooth 5.3 with FIPS and FISMA support.

In conclusion, the MSI B760M BOMBER WIFI DDR5 ATX Motherboard is a reliable and feature-rich motherboard designed for gamers and power users. With its powerful performance, extensive connectivity options, and support for the latest technologies, it provides an excellent foundation for building a high-performance PC.
