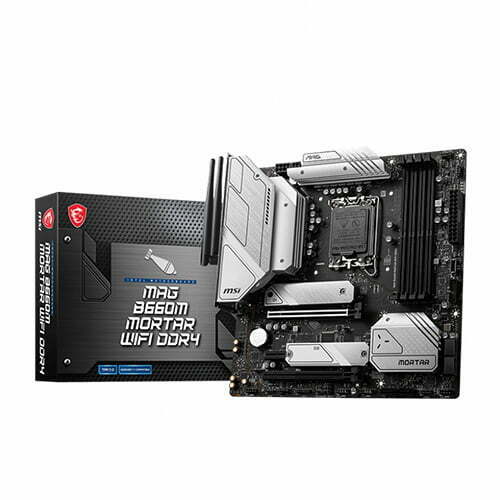

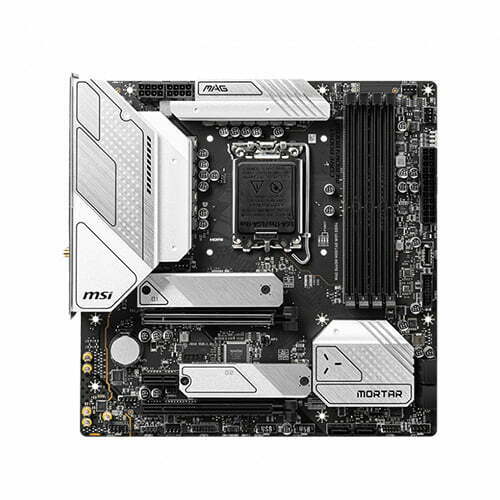

MSI MAG B660M MORTAR WIFI DDR4 12th Gen Intel Micro-ATX Motherboard

Product ID: MAG-B660M
Customer rating: No reviews yet
Availability: Out of stock
Questions: 0 answered

1 / 2

All prices include VAT. 0% EMI from ৳1,983/mo on 29 banks.

Save ৳3,100 -12%৳23,800~~Was ৳26,900~~

Key features

Full specs

FeatureLIGHTNING GEN 4 M.2
FeaturePREMIUM HARDWARE DESIGN
FeatureHIGH-BANDWIDTH AND LOW-LATENCY NETWORK
FeatureTHERMAL SOLUTION FOR MORE CORES

0% EMI on credit cards of 29 banks — ৳1,983/mo for 12 months.
Online price saves you ৳3,100 (offer valid while stock lasts).
Free assembly & testing when you build a PC with our PC Builder.

From this brandMSI207 productsBrowse all →

Specifications

Key Specifications

Processor Type	Intel
Socket	LGA1700
Chipset	Intel B660
Form Factor	Micro ATX

RAM Type	DDR4
Maximum Memory	128GB
Memory Slots	4 Slots
Features	Wi-Fi, M.2, RGB, USB Type-C

Processor

Supported CPU	Supports 12th Gen Intel Core, Pentium Gold and Celeron processors Processor socket LGA1700

Memory

Memory	4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)

Expansion & Storage

Storage	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory

Audio

Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Ports & Connectors

USB	Intel® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
Rear Panel I/O	USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT

Internal Connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector

Other Features

Special Features	4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors

Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Disclaimer: Product photos are for illustration only — the actual product may differ in colour, packaging or appearance. Specifications and features can change without notice from the manufacturer, so please confirm anything important with our team before you order. Prices, offers and stock are subject to change.

Overview

MSI MAG B660M MORTAR WIFI DDR4 Motherboard

MSI MAG B660M MORTAR WIFI DDR4 Motherboard supports with 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. This motherboard comes with Premium Thermal Solution so that Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works and also this motherboard has 2.5G LAN and Intel Wi-Fi Solution so that it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. By Utilizing 12th Gen Intel processors, the MSI B660 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard is designed with Lightning M.2, which helps to Run at PCIe Gen 4 maximizes performance for NVMe based SSDs. It also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, is 4X faster than USB 3.2 Gen 1, and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for Gamers. MSI MAG B660M MORTAR WIFI DDR4 Motherboard features:

Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

[ninja_tables id="47059"]

Buy MSI MAG B660M MORTAR WIFI DDR4 12th Gen Intel Micro-ATX Motherboard from Ultra Technology

Get the MSI MAG B660M MORTAR WIFI DDR4 12th Gen Intel Micro-ATX Motherboard from Ultra Technology for ৳23,800 and enjoy a stable, feature-rich base for your next build. It's an excellent choice for PC builders who want room to grow at the best price in Bangladesh.

See more from MSI, explore more MSI Intel Motherboard, browse our full range of PC Components, or build your own PC with compatible parts. Every order comes with official warranty, 0% EMI on popular bank cards and fast delivery across Bangladesh — or visit our showroom at Multiplan Center, Dhaka.
